SDO HMI 2011-06-19 05:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.34 | 62.61 | 12.50 | 73.22 | -14.73 | 245.62 | 63.46 | 252.92 | 0.9061 | -93.4 | 223.0 | |
|
previous
or next observation for the same group /

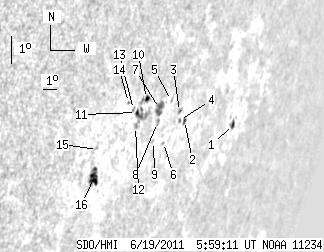

back to the solar disc SDO HMI 2011-06-19 05:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.90 | 0.00 | 4.57 | -14.85 | 252.79 | 70.63 | 253.83 | 0.9508 | 42.0 | 193.0 | |
| 1.00 | 2.18 | 1.29 | 2.81 | -14.61 | 248.38 | 66.21 | 253.50 | 0.9251 | 120.4 | 153.0 | |
| 0.00 | 1.81 | 0.00 | 2.29 | -14.31 | 247.82 | 65.65 | 253.74 | 0.9212 | 514.0 | 468.5 | |
| 0.00 | 1.45 | 0.00 | 1.85 | -14.60 | 247.98 | 65.82 | 253.46 | 0.9225 | 484.0 | 410.7 | |
| 0.00 | 1.45 | 0.00 | 1.77 | -13.94 | 247.01 | 64.84 | 254.02 | 0.9154 | 342.0 | 289.1 | |
| 0.00 | 1.00 | 0.00 | 1.23 | -15.27 | 247.16 | 64.99 | 252.60 | 0.9178 | 419.0 | 353.8 | |
| 0.00 | 10.44 | 0.00 | 12.40 | -14.18 | 246.25 | 64.08 | 253.65 | 0.9105 | 648.0 | 621.0 | |
| 0.00 | 2.72 | 0.00 | 3.25 | -14.62 | 246.34 | 64.17 | 253.18 | 0.9116 | 581.0 | 457.2 | |
| 0.00 | 1.09 | 0.00 | 1.31 | -15.22 | 246.38 | 64.22 | 252.53 | 0.9125 | 416.0 | 399.9 | |
| 1.36 | 5.17 | 1.55 | 5.89 | -13.83 | 245.15 | 62.98 | 253.85 | 0.9023 | -151.4 | -188.2 | |
| 0.54 | 13.97 | 0.61 | 15.93 | -14.26 | 244.67 | 62.50 | 253.30 | 0.8993 | -164.5 | 264.7 | |
| 0.00 | 1.91 | 0.00 | 2.16 | -14.71 | 244.82 | 62.66 | 252.84 | 0.9010 | 297.0 | 254.0 | |
| 0.00 | 1.63 | 0.00 | 1.82 | -14.16 | 244.41 | 62.24 | 253.37 | 0.8973 | -336.0 | -278.9 | |
| 0.00 | 1.00 | 0.00 | 1.09 | -13.93 | 243.96 | 61.80 | 253.55 | 0.8937 | -333.0 | -354.0 | |
| 0.00 | 0.64 | 0.00 | 0.67 | -15.39 | 242.62 | 60.45 | 251.69 | 0.8854 | -445.0 | -443.7 | |
| 8.44 | 13.25 | 9.05 | 14.18 | -16.32 | 242.83 | 60.67 | 250.70 | 0.8884 | -523.6 | -517.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
