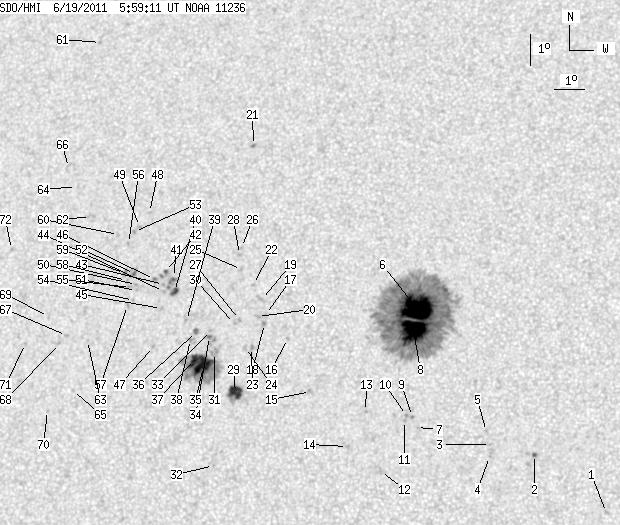

SDO HMI 2011-06-19 05:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 142.37 | 769.90 | 75.82 | 410.47 | 17.16 | 167.52 | -14.65 | 41.04 | 0.3669 | -206.7 | -147.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-19 05:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.00 | 0.00 | 1.01 | 11.30 | 176.11 | -6.06 | 31.23 | 0.2005 | -953.0 | -701.2 | |
| 1.81 | 1.81 | 0.93 | 0.93 | 13.09 | 173.80 | -8.37 | 35.13 | 0.2474 | -1063.6 | 0.0 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 13.40 | 172.39 | -9.77 | 38.61 | 0.2658 | -723.0 | -568.1 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 13.02 | 172.38 | -9.79 | 39.58 | 0.2612 | -783.0 | -669.1 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 13.80 | 172.25 | -9.92 | 38.05 | 0.2726 | -745.0 | -542.4 | |
| 53.54 | 525.84 | 28.27 | 277.43 | 17.66 | 169.81 | -12.36 | 36.16 | 0.3472 | -1443.2 | -425.9 | |
| 0.00 | 0.54 | 0.00 | 0.28 | 13.91 | 170.01 | -12.16 | 43.45 | 0.2986 | -530.0 | -594.0 | |
| 36.66 | -6.00 | 19.30 | -6.00 | 16.96 | 169.73 | -12.44 | 37.62 | 0.3391 | -1536.4 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 14.26 | 169.86 | -12.31 | 42.98 | 0.3044 | -948.0 | -730.2 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 14.29 | 169.66 | -12.50 | 43.35 | 0.3069 | -978.0 | -740.6 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 14.13 | 169.61 | -12.56 | 43.84 | 0.3057 | -907.0 | -713.0 | |
| 0.00 | 2.54 | 0.00 | 1.32 | 12.54 | 168.93 | -13.24 | 49.28 | 0.2963 | -834.0 | -501.8 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 14.40 | 168.33 | -13.83 | 45.91 | 0.3238 | -841.0 | -608.7 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 13.31 | 167.82 | -14.35 | 49.53 | 0.3184 | -916.0 | -706.1 | |
| 0.00 | 2.09 | 0.00 | 1.10 | 15.02 | 166.50 | -15.67 | 47.98 | 0.3526 | -734.0 | -578.3 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 16.68 | 165.60 | -16.56 | 46.06 | 0.3809 | 772.0 | 664.1 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 17.43 | 164.80 | -17.37 | 45.90 | 0.3982 | 709.0 | 652.1 | |
| 0.00 | 1.91 | 0.00 | 1.03 | 17.15 | 164.79 | -17.37 | 46.46 | 0.3953 | 937.0 | 758.0 | |
| 0.00 | 4.17 | 0.00 | 2.26 | 17.91 | 164.62 | -17.55 | 45.30 | 0.4054 | 835.0 | 530.9 | |
| 0.00 | 2.18 | 0.00 | 1.18 | 17.37 | 164.54 | -17.63 | 46.44 | 0.4006 | 866.0 | 737.3 | |
| 0.00 | 1.81 | 0.00 | 1.02 | 22.87 | 163.74 | -18.42 | 38.52 | 0.4695 | 976.0 | 819.3 | |
| 0.00 | 1.81 | 0.00 | 0.99 | 18.38 | 164.30 | -17.87 | 44.93 | 0.4140 | 859.0 | 679.6 | |
| 0.00 | 2.27 | 0.00 | 1.22 | 16.39 | 164.43 | -17.73 | 48.51 | 0.3917 | 1010.0 | 813.6 | |
| 0.00 | 2.54 | 0.00 | 1.37 | 16.39 | 164.23 | -17.93 | 48.82 | 0.3942 | 816.0 | 686.8 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 18.86 | 163.84 | -18.33 | 44.78 | 0.4242 | 776.0 | 633.8 | |
| 0.00 | 0.73 | 0.00 | 0.40 | 19.56 | 163.76 | -18.41 | 43.68 | 0.4327 | 691.0 | 566.4 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 17.27 | 163.94 | -18.22 | 47.53 | 0.4065 | 876.0 | 678.5 | |
| 0.00 | 1.81 | 0.00 | 1.00 | 19.34 | 163.72 | -18.45 | 44.13 | 0.4307 | 796.0 | 504.5 | |
| 12.98 | 19.78 | 6.95 | 10.60 | 14.97 | 164.03 | -18.14 | 52.06 | 0.3830 | -1029.9 | -564.6 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 17.14 | 163.79 | -18.38 | 48.01 | 0.4070 | 923.0 | 696.8 | |
| 0.00 | 5.90 | 0.00 | 3.19 | 16.22 | 163.21 | -18.96 | 50.65 | 0.4051 | 833.0 | 838.2 | |
| 0.00 | 0.73 | 0.00 | 0.39 | 12.69 | 163.49 | -18.68 | 57.94 | 0.3702 | 894.0 | 703.8 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 16.91 | 163.01 | -19.16 | 49.58 | 0.4142 | 810.0 | 641.5 | |
| 1.63 | 7.99 | 0.89 | 4.34 | 16.72 | 162.99 | -19.18 | 49.97 | 0.4126 | 919.6 | 704.9 | |
| 19.60 | 87.56 | 10.61 | 47.42 | 15.78 | 162.89 | -19.28 | 51.99 | 0.4050 | 1319.4 | 519.9 | |
| 0.00 | 2.99 | 0.00 | 1.63 | 16.88 | 162.54 | -19.63 | 50.30 | 0.4196 | 1066.0 | 811.1 | |
| 7.17 | -35.00 | 3.89 | -35.00 | 16.00 | 162.56 | -19.61 | 52.00 | 0.4111 | 916.8 | 999999 | |
| 0.00 | 2.54 | 0.00 | 1.39 | 16.62 | 162.36 | -19.81 | 51.03 | 0.4194 | 825.0 | 682.1 | |
| 0.00 | 0.82 | 0.00 | 0.45 | 17.22 | 162.16 | -20.01 | 50.15 | 0.4275 | 658.0 | 552.8 | |
| 4.17 | 13.88 | 2.30 | 7.67 | 18.14 | 161.64 | -20.53 | 49.14 | 0.4424 | 1067.3 | 807.3 | |
| 0.64 | -40.00 | 0.35 | -40.00 | 18.59 | 161.55 | -20.62 | 48.46 | 0.4477 | 787.6 | 999999 | |
| 1.36 | 4.81 | 0.76 | 2.67 | 18.77 | 161.25 | -20.92 | 48.52 | 0.4530 | 692.5 | 694.8 | |
| 0.00 | 1.18 | 0.00 | 0.65 | 18.36 | 161.24 | -20.93 | 49.27 | 0.4493 | 913.0 | 752.2 | |
| 0.00 | 1.63 | 0.00 | 0.90 | 18.14 | 161.26 | -20.90 | 49.63 | 0.4468 | 904.0 | 729.8 | |
| 0.00 | 1.72 | 0.00 | 0.95 | 17.60 | 161.26 | -20.90 | 50.62 | 0.4418 | 797.0 | 595.6 | |
| 0.00 | 2.54 | 0.00 | 1.41 | 18.52 | 160.91 | -21.26 | 49.41 | 0.4546 | 882.0 | 707.0 | |
| 0.00 | 1.72 | 0.00 | 0.95 | 16.39 | 161.13 | -21.04 | 53.06 | 0.4327 | 572.0 | 507.2 | |
| 0.00 | 1.45 | 0.00 | 0.82 | 20.66 | 160.43 | -21.74 | 46.38 | 0.4806 | 587.0 | 427.2 | |
| 0.00 | 1.81 | 0.00 | 1.02 | 20.21 | 160.15 | -22.02 | 47.46 | 0.4794 | 718.0 | 527.8 | |
| 0.00 | 1.18 | 0.00 | 0.66 | 18.35 | 160.31 | -21.86 | 50.44 | 0.4603 | 902.0 | 757.2 | |
| 0.00 | 0.91 | 0.00 | 0.51 | 18.16 | 160.33 | -21.84 | 50.75 | 0.4583 | 672.0 | 507.6 | |
| 1.36 | 4.72 | 0.76 | 2.64 | 18.70 | 160.19 | -21.98 | 49.97 | 0.4649 | 964.7 | 732.9 | |
| 0.00 | 1.72 | 0.00 | 0.97 | 20.05 | 160.00 | -22.17 | 47.92 | 0.4796 | 874.0 | 740.3 | |
| 0.00 | 1.00 | 0.00 | 0.56 | 17.84 | 160.27 | -21.90 | 51.40 | 0.4561 | 629.0 | 543.9 | |
| 0.00 | 1.81 | 0.00 | 1.01 | 18.25 | 160.11 | -22.06 | 50.85 | 0.4617 | 720.0 | 641.5 | |
| 0.00 | 1.09 | 0.00 | 0.61 | 19.66 | 159.84 | -22.32 | 48.74 | 0.4777 | 867.0 | 698.0 | |
| 0.00 | 2.09 | 0.00 | 1.16 | 17.68 | 160.08 | -22.08 | 51.91 | 0.4570 | 701.0 | 576.3 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 18.48 | 159.94 | -22.22 | 50.66 | 0.4658 | 756.0 | 536.3 | |
| 1.45 | 2.63 | 0.81 | 1.47 | 18.70 | 159.84 | -22.33 | 50.39 | 0.4690 | 669.7 | 678.4 | |
| 0.00 | 1.45 | 0.00 | 0.82 | 19.94 | 159.45 | -22.72 | 48.73 | 0.4849 | 679.0 | 564.9 | |
| 0.00 | 1.36 | 0.00 | 0.82 | 26.23 | 157.62 | -24.55 | 41.53 | 0.5642 | 648.0 | 538.9 | |
| 0.00 | 3.54 | 0.00 | 2.03 | 20.51 | 158.37 | -23.80 | 49.03 | 0.5025 | 580.0 | 563.4 | |
| 0.00 | 1.09 | 0.00 | 0.61 | 16.56 | 158.85 | -23.32 | 55.36 | 0.4631 | 731.0 | 526.2 | |
| 0.00 | 0.64 | 0.00 | 0.37 | 21.48 | 157.70 | -24.47 | 48.24 | 0.5187 | 477.0 | 449.3 | |
| 0.00 | 1.18 | 0.00 | 0.66 | 14.98 | 158.52 | -23.65 | 58.70 | 0.4553 | 703.0 | 541.5 | |
| 0.00 | 3.27 | 0.00 | 1.90 | 22.09 | 157.30 | -24.87 | 47.73 | 0.5287 | 139.0 | 404.4 | |
| 0.00 | 1.63 | 0.00 | 0.92 | 16.71 | 158.10 | -24.07 | 55.87 | 0.4739 | 780.0 | 617.7 | |
| 0.00 | 1.18 | 0.00 | 0.66 | 16.46 | 157.89 | -24.28 | 56.55 | 0.4746 | 536.0 | 488.3 | |
| 0.00 | 1.00 | 0.00 | 0.57 | 17.31 | 157.38 | -24.79 | 55.51 | 0.4875 | 546.0 | 440.2 | |
| 0.00 | 1.54 | 0.00 | 0.86 | 14.35 | 157.73 | -24.43 | 60.69 | 0.4614 | 853.0 | 595.3 | |
| 0.00 | 1.27 | 0.00 | 0.72 | 16.44 | 156.70 | -25.47 | 57.72 | 0.4899 | 745.0 | 541.6 | |
| 0.00 | 1.18 | 0.00 | 0.69 | 19.42 | 155.72 | -26.44 | 53.51 | 0.5244 | 670.0 | 487.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
