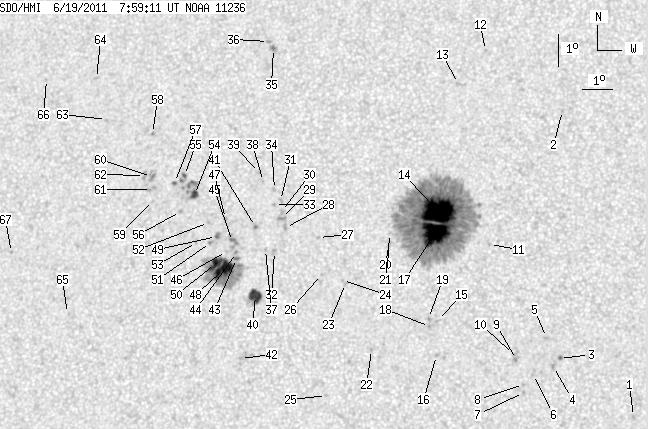

SDO HMI 2011-06-19 07:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 147.73 | 775.48 | 78.25 | 410.60 | 17.14 | 167.85 | -13.22 | 38.35 | 0.3515 | -355.8 | -173.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-19 07:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.69 | 11.28 | 176.23 | -4.84 | 25.95 | 0.1900 | -856.0 | -706.1 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 20.92 | 173.66 | -7.41 | 19.91 | 0.3555 | -752.0 | -615.7 | |
| 1.18 | 1.45 | 0.60 | 0.74 | 13.07 | 173.87 | -7.20 | 31.29 | 0.2361 | -1024.1 | -986.3 | |
| 0.00 | 2.09 | 0.00 | 1.06 | 12.82 | 173.69 | -7.38 | 32.50 | 0.2342 | -1014.0 | -787.2 | |
| 0.00 | 1.91 | 0.00 | 0.97 | 13.72 | 173.44 | -7.63 | 31.31 | 0.2493 | -774.0 | -628.4 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 12.57 | 173.07 | -8.00 | 35.24 | 0.2366 | -785.0 | -544.6 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 12.01 | 172.77 | -8.30 | 37.68 | 0.2321 | -949.0 | -649.7 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 12.26 | 172.76 | -8.31 | 37.05 | 0.2355 | -828.0 | -599.4 | |
| 0.00 | 2.00 | 0.00 | 1.02 | 13.04 | 172.52 | -8.56 | 35.88 | 0.2484 | -788.0 | -745.2 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 13.19 | 172.42 | -8.66 | 35.82 | 0.2515 | -765.0 | -664.5 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 16.63 | 171.50 | -9.57 | 31.35 | 0.3076 | 827.0 | 572.4 | |
| 0.00 | 0.91 | 0.00 | 0.49 | 22.86 | 170.98 | -10.09 | 23.88 | 0.4005 | -714.0 | -648.4 | |
| 0.00 | 2.18 | 0.00 | 1.17 | 21.78 | 170.16 | -10.91 | 26.86 | 0.3908 | -683.0 | -493.2 | |
| 55.81 | 535.19 | 29.35 | 281.23 | 17.67 | 169.79 | -11.28 | 33.74 | 0.3371 | -1427.7 | -417.3 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 14.24 | 169.95 | -11.12 | 40.21 | 0.2908 | -802.0 | -598.6 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 13.15 | 169.97 | -11.10 | 42.79 | 0.2772 | -871.0 | -654.4 | |
| 40.83 | -14.00 | 21.41 | -14.00 | 16.97 | 169.70 | -11.37 | 35.19 | 0.3286 | -1508.1 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 14.05 | 169.70 | -11.37 | 41.26 | 0.2912 | -920.0 | -686.1 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 14.30 | 169.66 | -11.41 | 40.79 | 0.2948 | -882.0 | -784.4 | |
| 0.00 | 1.63 | 0.00 | 0.86 | 16.97 | 168.27 | -12.80 | 38.40 | 0.3427 | -43.0 | -93.2 | |
| 0.00 | 2.54 | 0.00 | 1.34 | 16.62 | 168.26 | -12.81 | 39.09 | 0.3384 | -50.0 | -149.8 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 13.32 | 167.88 | -13.19 | 47.19 | 0.3040 | -831.0 | -693.7 | |
| 0.00 | 1.72 | 0.00 | 0.91 | 15.38 | 166.91 | -14.16 | 44.41 | 0.3385 | -869.0 | -710.1 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 15.48 | 166.81 | -14.26 | 44.41 | 0.3408 | -815.0 | -653.1 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 11.89 | 166.51 | -14.56 | 53.61 | 0.3069 | -860.0 | -685.5 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 15.66 | 166.11 | -14.96 | 45.35 | 0.3510 | -758.0 | -591.3 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 16.82 | 165.92 | -15.16 | 43.33 | 0.3662 | 734.0 | 576.5 | |
| 0.00 | 2.90 | 0.00 | 1.56 | 17.13 | 164.80 | -16.27 | 44.70 | 0.3823 | 1031.0 | 769.2 | |
| 0.00 | 2.99 | 0.00 | 1.61 | 17.42 | 164.64 | -16.43 | 44.43 | 0.3872 | 922.0 | 754.7 | |
| 0.00 | 2.00 | 0.00 | 1.07 | 17.64 | 164.62 | -16.45 | 44.04 | 0.3899 | 607.0 | 595.5 | |
| 0.00 | 2.36 | 0.00 | 1.27 | 17.99 | 164.55 | -16.52 | 43.50 | 0.3945 | 640.0 | 580.6 | |
| 0.00 | 2.81 | 0.00 | 1.50 | 16.37 | 164.50 | -16.57 | 46.70 | 0.3776 | 842.0 | 675.5 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 17.86 | 164.36 | -16.71 | 44.05 | 0.3952 | 913.0 | 694.6 | |
| 0.00 | 1.81 | 0.00 | 0.98 | 18.34 | 164.32 | -16.76 | 43.26 | 0.4010 | 771.0 | 625.5 | |
| 0.00 | 3.90 | 0.00 | 2.17 | 22.88 | 163.76 | -17.32 | 36.86 | 0.4591 | 967.0 | 755.1 | |
| 0.00 | 2.00 | 0.00 | 1.11 | 23.11 | 163.55 | -17.52 | 36.84 | 0.4636 | 660.0 | 540.0 | |
| 0.00 | 0.91 | 0.00 | 0.49 | 16.43 | 164.20 | -16.88 | 47.08 | 0.3818 | 954.0 | 733.4 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 18.59 | 163.92 | -17.15 | 43.45 | 0.4081 | 632.0 | 559.8 | |
| 0.00 | 0.82 | 0.00 | 0.44 | 18.87 | 163.76 | -17.32 | 43.21 | 0.4131 | 749.0 | 575.0 | |
| 12.25 | 16.24 | 6.53 | 8.65 | 14.99 | 163.99 | -17.08 | 50.44 | 0.3696 | -1035.6 | -624.5 | |
| 0.00 | 2.45 | 0.00 | 1.32 | 17.16 | 163.80 | -17.28 | 46.30 | 0.3941 | 1040.0 | 759.0 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 13.02 | 163.65 | -17.42 | 55.44 | 0.3557 | 498.0 | 423.9 | |
| 1.27 | 2.00 | 0.68 | 1.07 | 16.14 | 163.26 | -17.81 | 49.15 | 0.3901 | 895.9 | 838.8 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 16.33 | 163.24 | -17.83 | 48.79 | 0.3922 | 924.0 | 821.1 | |
| 0.00 | 8.26 | 0.00 | 4.45 | 16.68 | 163.07 | -18.00 | 48.36 | 0.3977 | 836.0 | 801.0 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 16.36 | 162.91 | -18.17 | 49.24 | 0.3966 | 683.0 | 517.3 | |
| 0.00 | 2.09 | 0.00 | 1.13 | 17.40 | 162.77 | -18.31 | 47.42 | 0.4087 | 697.0 | 562.9 | |
| 19.06 | 87.20 | 10.25 | 46.91 | 15.79 | 162.86 | -18.21 | 50.46 | 0.3916 | 1319.1 | 492.5 | |
| 0.45 | 3.36 | 0.25 | 1.82 | 16.83 | 162.52 | -18.55 | 48.88 | 0.4059 | 835.2 | 710.1 | |
| 9.62 | -48.00 | 5.19 | -48.00 | 15.98 | 162.57 | -18.50 | 50.50 | 0.3970 | 956.1 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.03 | 16.64 | 162.34 | -18.73 | 49.52 | 0.4062 | 767.0 | 634.9 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 17.27 | 162.21 | -18.86 | 48.49 | 0.4140 | 803.0 | 586.2 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 16.64 | 161.87 | -19.20 | 50.19 | 0.4119 | 567.0 | 343.5 | |
| 4.54 | 18.87 | 2.49 | 10.36 | 18.16 | 161.64 | -19.44 | 47.66 | 0.4296 | 1072.6 | 685.9 | |
| 1.36 | 4.90 | 0.75 | 2.70 | 18.76 | 161.22 | -19.85 | 47.15 | 0.4404 | 709.3 | 720.3 | |
| 0.00 | 2.09 | 0.00 | 1.14 | 17.61 | 161.22 | -19.85 | 49.22 | 0.4292 | 914.0 | 621.4 | |
| 1.36 | 1.81 | 0.75 | 1.00 | 18.53 | 160.91 | -20.17 | 47.97 | 0.4418 | 663.0 | 740.8 | |
| 0.00 | 1.00 | 0.00 | 0.56 | 20.09 | 159.94 | -21.13 | 46.56 | 0.4682 | 834.0 | 736.7 | |
| 0.00 | 0.73 | 0.00 | 0.40 | 17.95 | 160.23 | -20.85 | 49.91 | 0.4444 | 653.0 | 545.2 | |
| 0.00 | 5.54 | 0.00 | 3.07 | 18.72 | 160.09 | -20.98 | 48.71 | 0.4531 | 1063.0 | 774.9 | |
| 0.00 | 3.99 | 0.00 | 2.21 | 18.30 | 160.15 | -20.93 | 49.38 | 0.4486 | 687.0 | 701.7 | |
| 0.00 | 3.72 | 0.00 | 2.07 | 18.75 | 159.85 | -21.22 | 48.97 | 0.4563 | 761.0 | 592.4 | |
| 0.00 | 1.36 | 0.00 | 0.77 | 20.53 | 158.26 | -22.81 | 47.90 | 0.4913 | 632.0 | 508.6 | |
| 0.00 | 1.45 | 0.00 | 0.84 | 21.85 | 157.69 | -23.39 | 46.47 | 0.5101 | 651.0 | 525.6 | |
| 0.00 | 0.73 | 0.00 | 0.40 | 14.37 | 157.74 | -23.34 | 59.63 | 0.4466 | 657.0 | 692.1 | |
| 0.00 | 1.00 | 0.00 | 0.58 | 21.80 | 155.89 | -25.18 | 48.51 | 0.5294 | 724.0 | 637.3 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 16.26 | 155.55 | -25.52 | 58.11 | 0.4891 | 584.0 | 460.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
