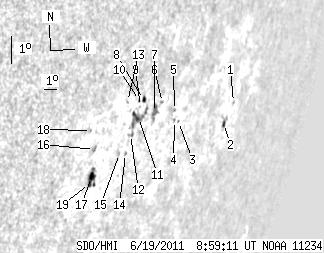

SDO HMI 2011-06-19 08:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.62 | 56.73 | 8.33 | 71.13 | -14.82 | 245.90 | 65.37 | 253.11 | 0.9188 | -73.0 | 162.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-19 08:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.45 | 0.00 | 0.80 | -14.17 | 253.25 | 72.73 | 254.76 | 0.9608 | 176.0 | 84.6 | |
| 1.27 | 4.72 | 2.18 | 8.13 | -14.82 | 252.73 | 72.20 | 254.03 | 0.9587 | 305.6 | 181.3 | |
| 0.00 | 0.91 | 0.00 | 1.26 | -14.64 | 248.39 | 67.86 | 253.69 | 0.9353 | 176.0 | 128.2 | |
| 0.00 | 1.00 | 0.00 | 1.36 | -14.60 | 248.03 | 67.50 | 253.68 | 0.9331 | 468.0 | 367.6 | |
| 0.00 | 1.18 | 0.00 | 1.59 | -14.28 | 247.83 | 67.30 | 254.00 | 0.9316 | 455.0 | 442.6 | |
| 0.00 | 1.36 | 0.00 | 1.75 | -14.00 | 246.69 | 66.17 | 254.14 | 0.9243 | 555.0 | 520.0 | |
| 0.00 | 8.44 | 0.00 | 10.68 | -14.30 | 246.24 | 65.72 | 253.75 | 0.9217 | 714.0 | 579.5 | |
| 1.36 | 2.54 | 1.65 | 3.08 | -13.87 | 245.17 | 64.65 | 254.07 | 0.9141 | -197.7 | 28.2 | |
| 0.00 | 0.82 | 0.00 | 0.98 | -14.09 | 245.06 | 64.54 | 253.81 | 0.9136 | -212.0 | -220.3 | |
| 0.00 | 1.00 | 0.00 | 1.20 | -13.89 | 244.89 | 64.36 | 254.00 | 0.9122 | -431.0 | -389.8 | |
| 0.00 | 15.43 | 0.00 | 18.68 | -14.43 | 245.11 | 64.58 | 253.44 | 0.9142 | 313.0 | 313.0 | |
| 0.00 | 2.36 | 0.00 | 2.84 | -14.97 | 244.81 | 64.28 | 252.82 | 0.9128 | 135.0 | 148.2 | |
| 0.00 | 0.73 | 0.00 | 0.84 | -13.90 | 244.03 | 63.50 | 253.85 | 0.9062 | -382.0 | -345.9 | |
| 0.00 | 1.45 | 0.00 | 1.75 | -15.57 | 244.79 | 64.26 | 252.16 | 0.9133 | -101.0 | -43.6 | |
| 0.00 | 1.00 | 0.00 | 1.18 | -15.56 | 244.34 | 63.82 | 252.10 | 0.9102 | -407.0 | -385.8 | |
| 0.00 | 2.09 | 0.00 | 2.32 | -15.39 | 242.50 | 61.97 | 251.97 | 0.8969 | -419.0 | -344.0 | |
| 3.54 | 10.71 | 3.99 | 12.10 | -16.25 | 242.76 | 62.24 | 251.06 | 0.8999 | -592.2 | -421.2 | |
| 0.00 | 0.54 | 0.00 | 0.59 | -14.77 | 241.98 | 61.46 | 252.56 | 0.8923 | -406.0 | -354.2 | |
| 0.45 | -17.00 | 0.51 | -17.00 | -16.48 | 242.75 | 62.22 | 250.82 | 0.9001 | -617.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
