SDO HMI 2011-06-19 10:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 122.11 | 765.65 | 64.20 | 403.04 | 17.19 | 167.82 | -11.61 | 34.68 | 0.3363 | -359.2 | -183.3 | |
|
previous
or next observation for the same group /

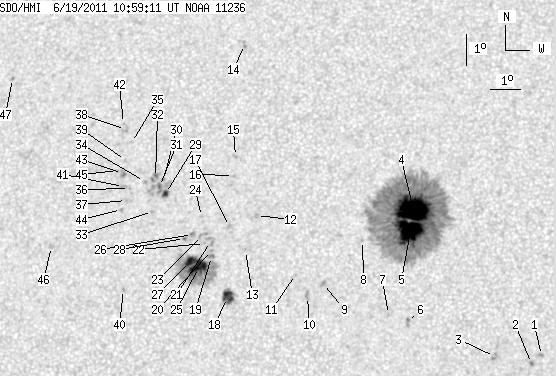

back to the solar disc SDO HMI 2011-06-19 10:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.27 | 0.00 | 1.15 | 13.12 | 174.05 | -5.38 | 24.38 | 0.2222 | -997.0 | -812.5 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 12.87 | 173.74 | -5.69 | 26.10 | 0.2206 | -1090.0 | -926.5 | |
| 0.00 | 3.99 | 0.00 | 2.03 | 13.08 | 172.57 | -6.86 | 30.06 | 0.2332 | -657.0 | -718.8 | |
| 51.35 | 547.28 | 26.87 | 286.15 | 17.69 | 169.80 | -9.63 | 29.73 | 0.3228 | -1417.0 | -421.6 | |
| 34.20 | -4.00 | 17.84 | -4.00 | 17.02 | 169.74 | -9.69 | 30.99 | 0.3139 | -1552.7 | 999999 | |
| 0.00 | 3.54 | 0.00 | 1.82 | 14.13 | 169.78 | -9.65 | 36.58 | 0.2739 | -1015.0 | -794.6 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 14.38 | 169.16 | -10.27 | 37.71 | 0.2835 | -782.0 | -606.3 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 16.70 | 168.20 | -11.23 | 35.38 | 0.3235 | -835.0 | -606.1 | |
| 0.00 | 2.81 | 0.00 | 1.47 | 15.34 | 167.02 | -12.41 | 40.83 | 0.3183 | -946.0 | -779.6 | |
| 0.00 | 3.45 | 0.00 | 1.80 | 14.93 | 166.53 | -12.90 | 42.81 | 0.3188 | -795.0 | -657.4 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 15.62 | 166.10 | -13.33 | 42.24 | 0.3318 | -746.0 | -540.6 | |
| 0.00 | 2.09 | 0.00 | 1.11 | 17.47 | 164.68 | -14.75 | 41.35 | 0.3691 | 797.0 | 690.2 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 16.36 | 164.41 | -15.02 | 44.02 | 0.3594 | 532.0 | 540.6 | |
| 0.00 | 3.08 | 0.00 | 1.71 | 22.97 | 163.72 | -15.71 | 34.19 | 0.4454 | 836.0 | 705.5 | |
| 0.00 | 2.00 | 0.00 | 1.08 | 19.34 | 163.81 | -15.62 | 39.58 | 0.4004 | 831.0 | 606.9 | |
| 0.00 | 1.63 | 0.00 | 0.88 | 18.74 | 163.80 | -15.62 | 40.64 | 0.3933 | 609.0 | 416.7 | |
| 0.00 | 2.45 | 0.00 | 1.31 | 17.12 | 163.82 | -15.61 | 43.60 | 0.3745 | 868.0 | 625.6 | |
| 10.52 | 15.33 | 5.56 | 8.10 | 14.88 | 163.93 | -15.50 | 48.02 | 0.3489 | -1032.6 | -702.7 | |
| 0.00 | 3.18 | 0.00 | 1.69 | 16.17 | 163.30 | -16.12 | 46.39 | 0.3700 | 958.0 | 883.5 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 16.36 | 163.29 | -16.14 | 46.03 | 0.3722 | 917.0 | 737.1 | |
| 0.00 | 6.62 | 0.00 | 3.54 | 16.64 | 163.23 | -16.20 | 45.56 | 0.3759 | 614.0 | 748.2 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 16.57 | 163.04 | -16.39 | 46.02 | 0.3775 | 757.0 | 601.5 | |
| 0.00 | 4.26 | 0.00 | 2.28 | 16.83 | 162.95 | -16.48 | 45.67 | 0.3812 | 601.0 | 626.7 | |
| 0.00 | 0.54 | 0.00 | 0.29 | 17.43 | 162.86 | -16.57 | 44.65 | 0.3888 | 707.0 | 576.7 | |
| 15.06 | 90.64 | 8.03 | 48.32 | 15.82 | 162.90 | -16.52 | 47.78 | 0.3711 | 1329.0 | 498.1 | |
| 0.00 | 2.90 | 0.00 | 1.56 | 16.86 | 162.61 | -16.82 | 46.16 | 0.3854 | 879.0 | 677.8 | |
| 7.44 | -25.00 | 3.98 | -25.00 | 16.00 | 162.62 | -16.81 | 47.86 | 0.3764 | 1019.3 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.88 | 16.73 | 162.36 | -17.07 | 46.83 | 0.3871 | 749.0 | 632.9 | |
| 3.18 | 22.14 | 1.72 | 12.04 | 18.15 | 161.58 | -17.85 | 45.36 | 0.4110 | 1073.2 | 624.8 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 18.59 | 161.47 | -17.96 | 44.73 | 0.4171 | 726.0 | 580.0 | |
| 0.36 | -29.00 | 0.20 | -29.00 | 18.37 | 161.36 | -18.07 | 45.30 | 0.4159 | 942.8 | 999999 | |
| 0.00 | 6.35 | 0.00 | 3.47 | 18.65 | 161.19 | -18.24 | 45.04 | 0.4208 | 777.0 | 662.1 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 17.57 | 161.20 | -18.22 | 46.99 | 0.4094 | 934.0 | 765.0 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 18.52 | 160.83 | -18.60 | 45.80 | 0.4235 | 702.0 | 646.1 | |
| 0.00 | 1.09 | 0.00 | 0.60 | 19.77 | 160.24 | -19.19 | 44.50 | 0.4431 | 778.0 | 598.8 | |
| 0.00 | 1.00 | 0.00 | 0.55 | 18.30 | 160.35 | -19.08 | 46.91 | 0.4267 | 879.0 | 678.7 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 17.92 | 160.29 | -19.14 | 47.69 | 0.4236 | 753.0 | 681.2 | |
| 0.00 | 3.63 | 0.00 | 2.01 | 20.18 | 159.98 | -19.45 | 44.17 | 0.4503 | 827.0 | 706.4 | |
| 0.00 | 0.82 | 0.00 | 0.45 | 19.19 | 160.10 | -19.32 | 45.68 | 0.4386 | 701.0 | 538.7 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 15.11 | 160.48 | -18.95 | 52.96 | 0.3945 | 897.0 | 772.1 | |
| 0.00 | 3.27 | 0.00 | 1.79 | 18.36 | 160.14 | -19.29 | 47.10 | 0.4298 | 763.0 | 721.8 | |
| 0.00 | 0.82 | 0.00 | 0.45 | 20.38 | 159.88 | -19.54 | 43.99 | 0.4534 | 604.0 | 495.2 | |
| 0.00 | 4.17 | 0.00 | 2.29 | 18.77 | 160.05 | -19.38 | 46.48 | 0.4350 | 966.0 | 771.6 | |
| 0.00 | 1.63 | 0.00 | 0.89 | 17.63 | 160.15 | -19.28 | 48.42 | 0.4224 | 799.0 | 591.3 | |
| 0.00 | 1.09 | 0.00 | 0.60 | 18.87 | 159.87 | -19.56 | 46.57 | 0.4380 | 702.0 | 542.3 | |
| 0.00 | 2.81 | 0.00 | 1.55 | 16.44 | 157.91 | -21.52 | 53.59 | 0.4390 | 732.0 | 594.9 | |
| 0.00 | 1.63 | 0.00 | 0.94 | 21.80 | 155.77 | -23.66 | 46.89 | 0.5125 | 689.0 | 533.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
