SDO HMI 2011-06-19 11:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.54 | 34.11 | 9.37 | 44.81 | -14.98 | 245.40 | 66.52 | 253.12 | 0.9265 | 58.2 | 170.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-19 11:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

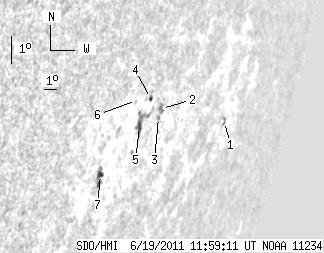

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.36 | 0.00 | 4.48 | -14.80 | 252.81 | 73.93 | 254.23 | 0.9665 | 394.0 | 244.0 | |
| 0.00 | 3.99 | 0.00 | 5.40 | -14.22 | 246.29 | 67.42 | 254.08 | 0.9323 | 727.0 | 597.6 | |
| 0.00 | 1.91 | 0.00 | 2.58 | -14.50 | 246.22 | 67.34 | 253.77 | 0.9321 | 546.0 | 482.3 | |
| 0.82 | 2.00 | 1.05 | 2.58 | -13.87 | 245.20 | 66.32 | 254.30 | 0.9252 | -144.6 | -26.2 | |
| 3.54 | 14.06 | 4.53 | 18.04 | -14.75 | 244.85 | 65.97 | 253.31 | 0.9237 | 346.2 | 295.3 | |
| 0.00 | 0.54 | 0.00 | 0.68 | -13.91 | 244.14 | 65.26 | 254.11 | 0.9183 | -328.0 | -329.0 | |
| 3.18 | 9.25 | 3.79 | 11.05 | -16.22 | 242.79 | 63.91 | 251.39 | 0.9116 | -521.8 | -450.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
