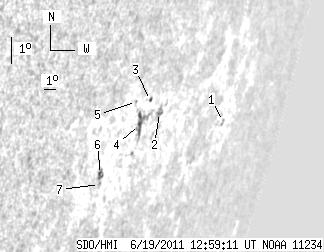

SDO HMI 2011-06-19 12:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.63 | 33.30 | 3.45 | 44.84 | -14.82 | 245.43 | 67.10 | 253.37 | 0.9301 | -9.4 | 177.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-19 12:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.91 | 0.00 | 3.77 | -14.78 | 252.95 | 74.62 | 254.31 | 0.9694 | 107.0 | 186.5 | |
| 0.00 | 6.35 | 0.00 | 8.80 | -14.32 | 246.22 | 67.90 | 254.03 | 0.9353 | 652.0 | 568.1 | |
| 0.82 | 1.63 | 1.08 | 2.16 | -13.92 | 245.23 | 66.90 | 254.33 | 0.9289 | -133.2 | 60.7 | |
| 1.81 | 16.42 | 2.37 | 21.56 | -14.67 | 244.80 | 66.47 | 253.47 | 0.9268 | 360.5 | 284.1 | |
| 0.00 | 0.91 | 0.00 | 1.15 | -13.92 | 244.13 | 65.80 | 254.17 | 0.9218 | -241.0 | -292.2 | |
| 0.00 | 4.90 | 0.00 | 5.96 | -16.20 | 242.74 | 64.41 | 251.49 | 0.9150 | -734.0 | -479.2 | |
| 0.00 | 1.18 | 0.00 | 1.44 | -16.53 | 242.86 | 64.53 | 251.17 | 0.9162 | -574.0 | -484.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
