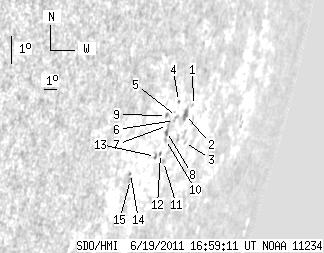

SDO HMI 2011-06-19 16:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 24.14 | 0.00 | 35.24 | -14.91 | 245.09 | 68.98 | 253.54 | 0.9419 | 139.4 | 204.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-19 16:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.73 | 0.00 | 1.14 | -14.07 | 246.71 | 70.59 | 254.62 | 0.9502 | 410.0 | 393.5 | |
| 0.00 | 5.44 | 0.00 | 8.33 | -14.34 | 246.14 | 70.03 | 254.27 | 0.9474 | 617.0 | 560.5 | |
| 0.00 | 1.00 | 0.00 | 1.58 | -15.24 | 246.72 | 70.61 | 253.40 | 0.9510 | 416.0 | 373.2 | |
| 0.00 | 1.27 | 0.00 | 1.86 | -13.91 | 245.21 | 69.09 | 254.62 | 0.9419 | -85.0 | -28.9 | |
| 0.00 | 1.45 | 0.00 | 2.14 | -14.39 | 245.35 | 69.23 | 254.13 | 0.9430 | 445.0 | 341.1 | |
| 0.00 | 1.00 | 0.00 | 1.47 | -14.51 | 245.25 | 69.14 | 253.99 | 0.9426 | 430.0 | 423.7 | |
| 0.00 | 1.00 | 0.00 | 1.43 | -14.65 | 244.73 | 68.62 | 253.77 | 0.9397 | 311.0 | 289.3 | |
| 0.00 | 2.27 | 0.00 | 3.26 | -14.85 | 244.78 | 68.66 | 253.57 | 0.9401 | 221.0 | 283.8 | |
| 0.00 | 1.18 | 0.00 | 1.66 | -14.33 | 244.43 | 68.32 | 254.08 | 0.9378 | -88.0 | -89.2 | |
| 0.00 | 1.63 | 0.00 | 2.36 | -15.10 | 244.87 | 68.75 | 253.32 | 0.9408 | 241.0 | 232.5 | |
| 0.00 | 1.36 | 0.00 | 2.01 | -15.81 | 245.20 | 69.09 | 252.61 | 0.9433 | 351.0 | 239.7 | |
| 0.00 | 1.27 | 0.00 | 1.83 | -15.54 | 244.74 | 68.62 | 252.83 | 0.9405 | 24.0 | 59.3 | |
| 0.00 | 1.72 | 0.00 | 2.44 | -15.63 | 244.36 | 68.25 | 252.69 | 0.9384 | -306.0 | -217.3 | |
| 0.00 | 0.82 | 0.00 | 1.08 | -16.13 | 242.62 | 66.51 | 251.91 | 0.9284 | -348.0 | -401.8 | |
| 0.00 | 2.00 | 0.00 | 2.65 | -16.32 | 242.76 | 66.64 | 251.72 | 0.9294 | -548.0 | -441.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
