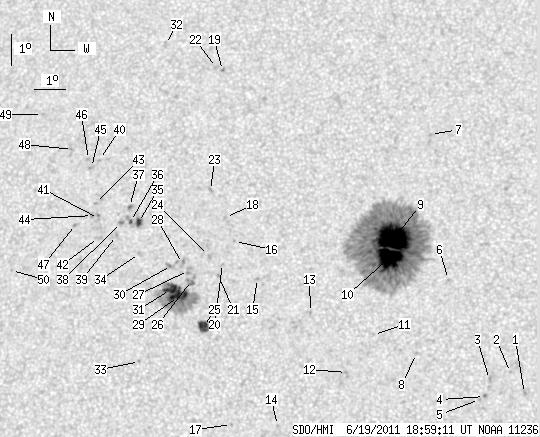

SDO HMI 2011-06-19 18:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 113.63 | 712.46 | 58.99 | 370.12 | 17.25 | 168.00 | -7.00 | 22.63 | 0.3003 | -406.4 | -224.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-19 18:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.00 | 0.00 | 1.01 | 12.86 | 173.99 | -1.02 | 5.03 | 0.1982 | -842.0 | -683.0 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 13.51 | 173.55 | -1.46 | 6.79 | 0.2101 | -894.0 | -686.2 | |
| 0.00 | 2.18 | 0.00 | 1.10 | 13.29 | 172.89 | -2.11 | 9.98 | 0.2080 | -819.0 | -724.3 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 12.76 | 172.74 | -2.27 | 11.19 | 0.1996 | -1077.0 | -925.2 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 12.67 | 172.58 | -2.42 | 12.03 | 0.1986 | -868.0 | -737.7 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 16.42 | 171.56 | -3.45 | 12.64 | 0.2647 | 791.0 | 569.3 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 21.04 | 170.87 | -4.13 | 11.38 | 0.3424 | -827.0 | -662.4 | |
| 0.00 | 2.00 | 0.00 | 1.02 | 14.10 | 170.59 | -4.42 | 18.93 | 0.2313 | -692.0 | -505.1 | |
| 47.52 | 525.98 | 24.62 | 272.24 | 17.71 | 169.77 | -5.23 | 17.31 | 0.2934 | -1503.9 | -463.4 | |
| 32.92 | -9.00 | 17.00 | -9.00 | 17.11 | 169.66 | -5.35 | 18.33 | 0.2844 | -1626.4 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 14.69 | 169.22 | -5.79 | 23.17 | 0.2490 | -763.0 | -516.0 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 13.50 | 168.40 | -6.61 | 28.31 | 0.2370 | -901.0 | -719.1 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 15.37 | 167.19 | -7.81 | 28.67 | 0.2743 | -974.0 | -732.5 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 11.85 | 166.27 | -8.73 | 39.60 | 0.2341 | -910.0 | -700.1 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 16.43 | 165.45 | -9.55 | 31.71 | 0.3042 | 879.0 | 636.9 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 17.60 | 164.64 | -10.36 | 31.72 | 0.3275 | 829.0 | 714.2 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 11.87 | 164.82 | -10.18 | 43.85 | 0.2508 | -856.0 | -638.5 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 18.36 | 164.30 | -10.70 | 31.27 | 0.3409 | 780.0 | 676.9 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 23.10 | 163.86 | -11.15 | 25.77 | 0.4107 | 841.0 | 604.6 | |
| 0.00 | 0.73 | 0.00 | 0.38 | 16.90 | 164.29 | -10.71 | 33.79 | 0.3211 | 731.0 | 630.6 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 16.52 | 164.19 | -10.82 | 34.76 | 0.3170 | 961.0 | 618.8 | |
| 0.00 | 2.09 | 0.00 | 1.13 | 23.20 | 163.65 | -11.36 | 26.08 | 0.4135 | 667.0 | 557.1 | |
| 0.00 | 2.54 | 0.00 | 1.35 | 19.22 | 163.76 | -11.25 | 31.17 | 0.3574 | 637.0 | 478.9 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 17.15 | 163.83 | -11.18 | 34.46 | 0.3288 | 897.0 | 785.1 | |
| 9.16 | 9.61 | 4.75 | 4.99 | 14.92 | 163.79 | -11.21 | 38.98 | 0.3000 | -1006.0 | -751.2 | |
| 0.00 | 6.89 | 0.00 | 3.61 | 16.36 | 163.32 | -11.68 | 37.13 | 0.3233 | 1100.0 | 837.8 | |
| 0.00 | 3.99 | 0.00 | 2.09 | 16.68 | 163.21 | -11.80 | 36.79 | 0.3285 | 673.0 | 744.2 | |
| 0.00 | 3.17 | 0.00 | 1.67 | 16.90 | 163.00 | -12.01 | 36.84 | 0.3334 | 837.0 | 717.7 | |
| 10.79 | 87.15 | 5.64 | 45.56 | 15.85 | 162.93 | -12.07 | 39.04 | 0.3208 | 1369.3 | 538.0 | |
| 0.00 | 5.89 | 0.00 | 3.10 | 16.83 | 162.64 | -12.36 | 37.75 | 0.3361 | 550.0 | 624.0 | |
| 7.53 | -29.00 | 3.94 | -29.00 | 16.07 | 162.66 | -12.34 | 39.21 | 0.3264 | 1008.4 | 999999 | |
| 0.00 | 2.72 | 0.00 | 1.50 | 23.95 | 161.84 | -13.16 | 28.58 | 0.4369 | 626.0 | 532.0 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 13.81 | 161.79 | -13.21 | 46.10 | 0.3093 | -781.0 | -632.5 | |
| 0.00 | 2.09 | 0.00 | 1.10 | 17.20 | 161.57 | -13.43 | 39.32 | 0.3518 | 829.0 | 536.6 | |
| 3.81 | 12.24 | 2.03 | 6.51 | 18.19 | 161.46 | -13.54 | 37.73 | 0.3650 | 1071.9 | 752.4 | |
| 1.54 | -35.00 | 0.82 | -35.00 | 18.22 | 161.20 | -13.81 | 38.21 | 0.3681 | 943.2 | 999999 | |
| 0.36 | 1.54 | 0.19 | 0.82 | 18.69 | 161.12 | -13.88 | 37.52 | 0.3747 | 842.0 | 690.0 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 18.18 | 160.90 | -14.10 | 38.84 | 0.3707 | 975.0 | 859.5 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 17.77 | 160.77 | -14.23 | 39.85 | 0.3670 | 885.0 | 802.6 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 20.19 | 159.99 | -15.02 | 37.15 | 0.4044 | 828.0 | 686.5 | |
| 0.00 | 1.81 | 0.00 | 0.97 | 18.31 | 160.13 | -14.87 | 40.08 | 0.3801 | 947.0 | 708.3 | |
| 0.00 | 3.17 | 0.00 | 1.69 | 17.70 | 160.18 | -14.82 | 41.09 | 0.3724 | 832.0 | 531.2 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 18.78 | 159.99 | -15.02 | 39.50 | 0.3873 | 839.0 | 716.0 | |
| 0.00 | 2.54 | 0.00 | 1.36 | 18.40 | 159.92 | -15.08 | 40.30 | 0.3834 | 952.0 | 715.6 | |
| 0.00 | 2.36 | 0.00 | 1.28 | 19.93 | 159.74 | -15.26 | 38.00 | 0.4036 | 855.0 | 741.4 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 20.19 | 159.62 | -15.39 | 37.81 | 0.4080 | 827.0 | 684.7 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 18.11 | 159.38 | -15.62 | 41.79 | 0.3857 | 842.0 | 659.5 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 20.51 | 159.04 | -15.96 | 38.29 | 0.4174 | 692.0 | 501.9 | |
| 0.00 | 0.63 | 0.00 | 0.35 | 21.63 | 157.89 | -17.11 | 38.41 | 0.4420 | 758.0 | 602.6 | |
| 0.00 | 0.91 | 0.00 | 0.49 | 16.64 | 157.39 | -17.62 | 47.90 | 0.3924 | 699.0 | 574.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
