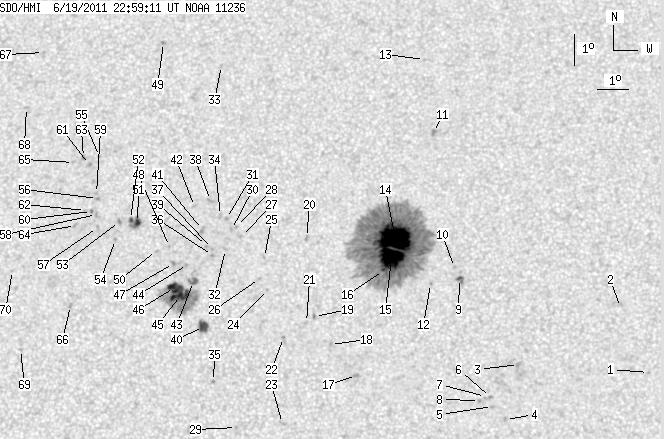

SDO HMI 2011-06-19 22:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 129.17 | 726.62 | 66.78 | 375.95 | 17.24 | 168.03 | -4.75 | 13.65 | 0.2877 | -283.7 | -212.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-19 22:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.73 | 0.00 | 0.37 | 13.50 | 177.75 | 4.97 | 337.88 | 0.2247 | -831.0 | -670.4 | |
| 0.00 | 0.63 | 0.00 | 0.33 | 15.53 | 176.91 | 4.13 | 343.99 | 0.2527 | -69.0 | -111.3 | |
| 0.00 | 2.36 | 0.00 | 1.20 | 13.76 | 173.68 | 0.89 | 355.90 | 0.2130 | -863.0 | -713.5 | |
| 0.00 | 1.63 | 0.00 | 0.82 | 12.05 | 173.27 | 0.48 | 357.41 | 0.1833 | -935.0 | -787.4 | |
| 0.00 | 1.72 | 0.00 | 0.87 | 12.45 | 172.86 | 0.08 | 359.59 | 0.1900 | -969.0 | -808.5 | |
| 0.00 | 1.72 | 0.00 | 0.87 | 12.73 | 172.80 | 0.02 | 359.91 | 0.1948 | -1020.0 | -846.5 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 12.76 | 172.64 | -0.14 | 0.70 | 0.1954 | -520.0 | -570.0 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 12.64 | 172.46 | -0.33 | 1.66 | 0.1933 | -864.0 | -767.8 | |
| 1.90 | 4.63 | 0.98 | 2.37 | 16.45 | 171.82 | -0.97 | 3.60 | 0.2589 | 829.0 | 772.0 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 16.80 | 171.66 | -1.13 | 4.10 | 0.2649 | 755.0 | 595.1 | |
| 0.00 | 3.08 | 0.00 | 1.62 | 21.11 | 170.94 | -1.84 | 5.12 | 0.3376 | -922.0 | -752.3 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 16.29 | 170.90 | -1.89 | 7.08 | 0.2576 | -829.0 | -668.8 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 23.49 | 170.61 | -2.17 | 5.32 | 0.3769 | -727.0 | -509.0 | |
| 56.15 | 519.73 | 29.00 | 268.27 | 17.71 | 169.76 | -3.02 | 10.22 | 0.2842 | -1452.1 | -443.2 | |
| 32.93 | -14.00 | 16.96 | -14.00 | 17.11 | 169.64 | -3.14 | 11.03 | 0.2746 | -1617.2 | 999999 | |
| 1.00 | -14.00 | 0.51 | -14.00 | 16.70 | 169.40 | -3.39 | 12.21 | 0.2687 | -1225.5 | 999999 | |
| 0.00 | 3.17 | 0.00 | 1.61 | 13.41 | 168.60 | -4.18 | 19.03 | 0.2185 | -912.0 | -811.1 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 14.37 | 167.76 | -5.02 | 20.88 | 0.2388 | -863.0 | -680.8 | |
| 0.00 | 2.09 | 0.00 | 1.07 | 15.25 | 167.24 | -5.55 | 21.48 | 0.2558 | -1003.0 | -765.7 | |
| 0.00 | 2.18 | 0.00 | 1.13 | 17.74 | 166.91 | -5.88 | 19.26 | 0.2968 | 863.0 | 659.0 | |
| 0.00 | 1.90 | 0.00 | 0.98 | 15.06 | 166.99 | -5.79 | 22.64 | 0.2545 | -879.0 | -663.4 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 14.59 | 166.27 | -6.51 | 25.91 | 0.2522 | -889.0 | -658.0 | |
| 0.00 | 2.72 | 0.00 | 1.38 | 11.91 | 166.31 | -6.47 | 31.47 | 0.2121 | -874.0 | -644.7 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 16.09 | 165.71 | -7.07 | 25.19 | 0.2790 | 811.0 | 643.7 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 17.10 | 165.58 | -7.20 | 24.06 | 0.2952 | 791.0 | 555.6 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 16.44 | 165.45 | -7.34 | 25.46 | 0.2861 | 969.0 | 714.6 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 17.76 | 164.81 | -7.97 | 25.29 | 0.3105 | 604.0 | 545.2 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 18.08 | 164.64 | -8.15 | 25.31 | 0.3165 | 716.0 | 575.1 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 11.79 | 164.87 | -7.91 | 37.11 | 0.2242 | -884.0 | -687.2 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 17.99 | 164.48 | -8.30 | 25.87 | 0.3162 | 866.0 | 658.4 | |
| 0.00 | 1.63 | 0.00 | 0.85 | 18.33 | 164.30 | -8.48 | 25.84 | 0.3226 | 858.0 | 614.1 | |
| 0.00 | 1.63 | 0.00 | 0.85 | 17.35 | 164.32 | -8.47 | 27.27 | 0.3081 | 896.0 | 688.1 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 23.27 | 163.85 | -8.94 | 21.07 | 0.3987 | 707.0 | 543.4 | |
| 0.00 | 2.54 | 0.00 | 1.33 | 18.43 | 164.10 | -8.68 | 26.23 | 0.3255 | 671.0 | 590.6 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 13.21 | 164.10 | -8.68 | 35.97 | 0.2513 | 875.0 | 658.9 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 17.16 | 163.90 | -8.88 | 28.69 | 0.3085 | 1030.0 | 859.4 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 17.38 | 163.89 | -8.89 | 28.36 | 0.3118 | 843.0 | 666.3 | |
| 0.00 | 2.81 | 0.00 | 1.48 | 18.91 | 163.75 | -9.03 | 26.44 | 0.3350 | 701.0 | 536.4 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 17.47 | 163.70 | -9.09 | 28.74 | 0.3147 | 815.0 | 690.8 | |
| 8.53 | 9.98 | 4.40 | 5.14 | 14.92 | 163.72 | -9.07 | 33.31 | 0.2785 | -973.5 | -564.7 | |
| 0.00 | 2.36 | 0.00 | 1.23 | 17.98 | 163.54 | -9.24 | 28.34 | 0.3232 | 818.0 | 734.9 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 18.71 | 163.24 | -9.54 | 27.99 | 0.3361 | 518.0 | 483.3 | |
| 0.00 | 6.17 | 0.00 | 3.20 | 16.34 | 163.33 | -9.45 | 31.65 | 0.3016 | 1136.0 | 921.4 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 16.87 | 163.11 | -9.67 | 31.27 | 0.3110 | 767.0 | 709.3 | |
| 14.06 | 81.63 | 7.30 | 42.36 | 15.89 | 162.94 | -9.85 | 33.53 | 0.2990 | 1337.8 | 496.7 | |
| 9.43 | -45.00 | 4.90 | -45.00 | 16.14 | 162.73 | -10.05 | 33.59 | 0.3044 | 1009.6 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.09 | 16.90 | 162.66 | -10.12 | 32.38 | 0.3154 | 910.0 | 685.9 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 17.44 | 162.50 | -10.28 | 31.84 | 0.3242 | 708.0 | 564.6 | |
| 0.00 | 1.90 | 0.00 | 1.04 | 24.02 | 161.83 | -10.95 | 24.39 | 0.4220 | 907.0 | 746.7 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 17.31 | 162.08 | -10.70 | 33.08 | 0.3261 | 714.0 | 639.7 | |
| 3.54 | 10.98 | 1.87 | 5.79 | 18.19 | 161.41 | -11.37 | 33.13 | 0.3442 | 1065.7 | 923.5 | |
| 1.63 | -51.00 | 0.86 | -51.00 | 18.29 | 161.17 | -11.61 | 33.51 | 0.3476 | 899.9 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.01 | 18.22 | 160.82 | -11.96 | 34.40 | 0.3500 | 982.0 | 836.7 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 17.65 | 160.73 | -12.06 | 35.60 | 0.3433 | 871.0 | 725.5 | |
| 0.00 | 0.54 | 0.00 | 0.29 | 20.30 | 160.00 | -12.78 | 32.80 | 0.3848 | 837.0 | 563.8 | |
| 0.00 | 1.90 | 0.00 | 1.01 | 18.95 | 160.04 | -12.74 | 34.83 | 0.3668 | 887.0 | 738.4 | |
| 0.00 | 1.72 | 0.00 | 0.91 | 18.03 | 160.11 | -12.67 | 36.26 | 0.3542 | 946.0 | 768.7 | |
| 0.00 | 2.00 | 0.00 | 1.06 | 18.44 | 160.05 | -12.74 | 35.68 | 0.3601 | 914.0 | 799.2 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 19.11 | 160.00 | -12.79 | 34.67 | 0.3693 | 821.0 | 596.7 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 18.54 | 159.88 | -12.91 | 35.88 | 0.3630 | 835.0 | 754.2 | |
| 0.00 | 2.09 | 0.00 | 1.12 | 20.04 | 159.69 | -13.10 | 33.81 | 0.3842 | 991.0 | 792.3 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 18.57 | 159.68 | -13.11 | 36.23 | 0.3653 | 583.0 | 494.8 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 20.26 | 159.47 | -13.32 | 33.90 | 0.3891 | 849.0 | 711.9 | |
| 0.00 | 2.00 | 0.00 | 1.06 | 18.09 | 159.38 | -13.40 | 37.66 | 0.3621 | 716.0 | 597.5 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 20.10 | 159.15 | -13.63 | 34.77 | 0.3899 | 544.0 | 556.8 | |
| 0.00 | 1.81 | 0.00 | 0.95 | 15.56 | 159.40 | -13.38 | 42.55 | 0.3311 | 974.0 | 755.7 | |
| 0.00 | 1.18 | 0.00 | 0.65 | 23.67 | 157.76 | -15.02 | 32.16 | 0.4477 | 642.0 | 464.7 | |
| 0.00 | 1.63 | 0.00 | 0.89 | 21.87 | 157.39 | -15.40 | 35.28 | 0.4283 | 659.0 | 495.1 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 14.17 | 157.87 | -14.91 | 48.66 | 0.3338 | 783.0 | 586.8 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 16.65 | 157.42 | -15.36 | 44.14 | 0.3660 | 672.0 | 476.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
