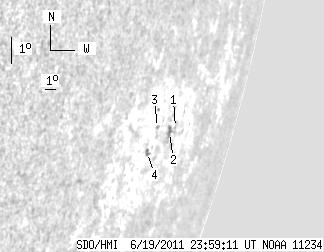

SDO HMI 2011-06-19 23:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.80 | 0.00 | 17.99 | -15.24 | 245.53 | 73.30 | 253.69 | 0.9639 | 270.8 | 262.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-19 23:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 1.62 | -14.96 | 246.80 | 74.57 | 254.12 | 0.9694 | 386.0 | 345.7 | |
| 0.00 | 4.63 | 0.00 | 8.85 | -15.10 | 246.23 | 74.00 | 253.91 | 0.9670 | 540.0 | 358.7 | |
| 0.00 | 1.18 | 0.00 | 2.06 | -14.90 | 244.71 | 72.48 | 253.96 | 0.9601 | 238.0 | 310.7 | |
| 0.00 | 3.17 | 0.00 | 5.46 | -15.69 | 244.34 | 72.11 | 253.10 | 0.9588 | -81.0 | 64.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
