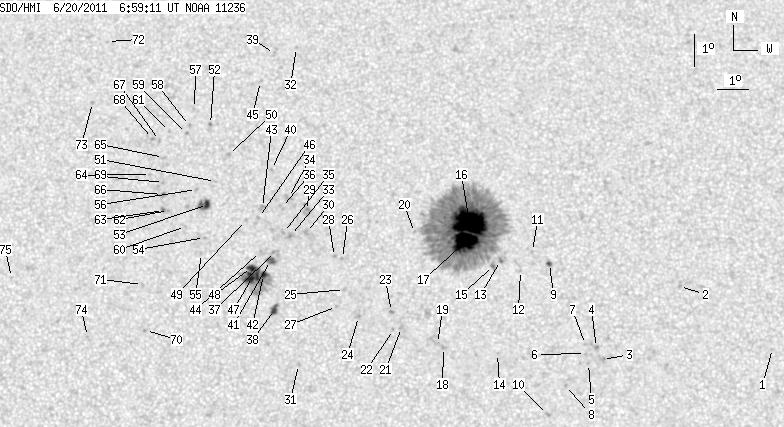

SDO HMI 2011-06-20 06:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 119.43 | 735.05 | 61.50 | 378.98 | 17.30 | 168.17 | -0.21 | 359.98 | 0.2767 | -275.8 | -233.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-20 06:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.42 | 13.70 | 179.27 | 10.89 | 318.85 | 0.2801 | -561.0 | -528.4 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 15.65 | 176.39 | 8.01 | 331.10 | 0.2787 | -986.0 | -775.2 | |
| 0.00 | 3.27 | 0.00 | 1.66 | 13.38 | 173.88 | 5.50 | 335.47 | 0.2254 | -883.0 | -762.5 | |
| 0.00 | 1.72 | 0.00 | 0.88 | 13.75 | 173.70 | 5.31 | 336.86 | 0.2300 | -849.0 | -748.9 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 13.25 | 173.44 | 5.05 | 337.01 | 0.2204 | -836.0 | -616.5 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 13.57 | 173.35 | 4.96 | 337.91 | 0.2248 | -813.0 | -640.2 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 13.85 | 173.35 | 4.97 | 338.37 | 0.2292 | -695.0 | -591.7 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 12.57 | 172.70 | 4.32 | 338.89 | 0.2049 | -945.0 | -733.0 | |
| 2.09 | 3.18 | 1.07 | 1.63 | 16.39 | 172.27 | 3.88 | 345.71 | 0.2645 | 1007.3 | 778.3 | |
| 0.00 | 2.00 | 0.00 | 1.01 | 11.68 | 172.13 | 3.74 | 339.92 | 0.1871 | -906.0 | -703.0 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 16.77 | 171.73 | 3.35 | 347.93 | 0.2687 | 759.0 | 505.7 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 16.17 | 171.34 | 2.96 | 348.85 | 0.2574 | 678.0 | 453.5 | |
| 0.00 | 2.54 | 0.00 | 1.30 | 16.48 | 170.71 | 2.33 | 351.38 | 0.2609 | -1095.0 | -820.6 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 13.57 | 170.58 | 2.20 | 349.79 | 0.2116 | -729.0 | -628.1 | |
| 0.00 | 3.63 | 0.00 | 1.86 | 16.33 | 170.49 | 2.10 | 352.11 | 0.2577 | -1006.0 | -814.8 | |
| 53.73 | 534.46 | 27.71 | 275.43 | 17.69 | 169.73 | 1.35 | 355.36 | 0.2791 | -1518.3 | -450.0 | |
| 30.49 | -16.00 | 15.68 | -16.00 | 17.08 | 169.60 | 1.22 | 355.64 | 0.2688 | -1700.6 | 999999 | |
| 0.00 | 2.45 | 0.00 | 1.24 | 13.76 | 168.89 | 0.51 | 357.65 | 0.2116 | -996.0 | -746.1 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 13.88 | 168.70 | 0.32 | 358.53 | 0.2137 | -886.0 | -618.0 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 17.37 | 167.98 | -0.41 | 1.43 | 0.2730 | -78.0 | -44.4 | |
| 0.00 | 1.91 | 0.00 | 0.97 | 14.38 | 167.57 | -0.81 | 3.54 | 0.2226 | -922.0 | -702.0 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 14.32 | 167.32 | -1.06 | 4.66 | 0.2218 | -874.0 | -706.9 | |
| 0.00 | 1.91 | 0.00 | 0.97 | 14.88 | 167.26 | -1.13 | 4.73 | 0.2315 | -1058.0 | -871.7 | |
| 0.00 | 2.09 | 0.00 | 1.06 | 14.73 | 166.22 | -2.17 | 9.15 | 0.2310 | -938.0 | -809.5 | |
| 0.00 | 2.27 | 0.00 | 1.16 | 15.57 | 165.77 | -2.62 | 10.33 | 0.2464 | -846.0 | -514.0 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 16.55 | 165.69 | -2.69 | 9.91 | 0.2629 | 734.0 | 608.0 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 15.04 | 165.52 | -2.86 | 11.73 | 0.2383 | -845.0 | -679.8 | |
| 0.00 | 1.72 | 0.00 | 0.89 | 16.61 | 165.43 | -2.95 | 10.78 | 0.2647 | 886.0 | 672.2 | |
| 0.00 | 7.62 | 0.00 | 3.95 | 18.06 | 164.51 | -3.87 | 12.76 | 0.2918 | 805.0 | 720.6 | |
| 0.00 | 3.09 | 0.00 | 1.59 | 17.37 | 164.53 | -3.86 | 13.29 | 0.2804 | 792.0 | 670.1 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 13.23 | 164.35 | -4.03 | 18.76 | 0.2137 | 660.0 | 618.5 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 23.32 | 164.04 | -4.34 | 10.64 | 0.3782 | 803.0 | 570.5 | |
| 0.00 | 4.36 | 0.00 | 2.25 | 17.27 | 164.02 | -4.37 | 15.07 | 0.2809 | 1070.0 | 811.0 | |
| 0.00 | 4.27 | 0.00 | 2.21 | 18.48 | 163.92 | -4.46 | 14.26 | 0.3008 | 700.0 | 639.3 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 17.36 | 163.79 | -4.59 | 15.71 | 0.2835 | 888.0 | 727.1 | |
| 0.00 | 2.54 | 0.00 | 1.32 | 18.16 | 163.71 | -4.68 | 15.21 | 0.2966 | 729.0 | 621.5 | |
| 0.00 | 2.09 | 0.00 | 1.08 | 16.76 | 163.55 | -4.83 | 17.14 | 0.2749 | 836.0 | 742.3 | |
| 4.81 | 5.54 | 2.46 | 2.83 | 14.94 | 163.56 | -4.82 | 19.39 | 0.2457 | -976.0 | -758.6 | |
| 0.00 | 2.54 | 0.00 | 1.36 | 23.12 | 163.32 | -5.07 | 12.48 | 0.3774 | 597.0 | 505.0 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 19.37 | 163.35 | -5.04 | 15.18 | 0.3176 | 668.0 | 462.9 | |
| 4.99 | 6.26 | 2.57 | 3.22 | 16.48 | 163.40 | -4.99 | 17.98 | 0.2712 | 1014.2 | 796.9 | |
| 2.99 | 61.71 | 1.54 | 31.69 | 16.04 | 163.19 | -5.20 | 19.24 | 0.2653 | 1184.2 | 604.5 | |
| 0.00 | 3.99 | 0.00 | 2.07 | 18.16 | 163.09 | -5.29 | 17.08 | 0.2994 | 704.0 | 588.8 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 16.76 | 163.07 | -5.31 | 18.72 | 0.2774 | 770.0 | 601.8 | |
| 0.00 | 1.63 | 0.00 | 0.87 | 22.21 | 162.89 | -5.50 | 14.14 | 0.3645 | 686.0 | 509.3 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 17.84 | 162.98 | -5.41 | 17.79 | 0.2950 | 835.0 | 686.5 | |
| 11.80 | -42.00 | 6.06 | -42.00 | 15.97 | 162.84 | -5.54 | 20.51 | 0.2663 | 1277.0 | 999999 | |
| 4.63 | -42.00 | 2.38 | -42.00 | 16.26 | 162.80 | -5.58 | 20.26 | 0.2709 | 913.2 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 17.74 | 162.56 | -5.82 | 19.16 | 0.2957 | 630.0 | 444.2 | |
| 0.00 | 1.91 | 0.00 | 1.00 | 19.85 | 161.93 | -6.45 | 18.65 | 0.3319 | 697.0 | 601.4 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 18.98 | 161.55 | -6.84 | 20.64 | 0.3207 | 666.0 | 411.6 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 20.81 | 161.30 | -7.08 | 19.30 | 0.3502 | 902.0 | 721.0 | |
| 3.90 | 9.53 | 2.03 | 4.97 | 18.25 | 161.32 | -7.07 | 22.18 | 0.3108 | 1049.2 | 1018.0 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 17.20 | 161.26 | -7.12 | 23.76 | 0.2952 | 836.0 | 582.1 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 16.69 | 161.19 | -7.20 | 24.73 | 0.2881 | 856.0 | 544.7 | |
| 0.00 | 1.63 | 0.00 | 0.85 | 18.72 | 160.94 | -7.44 | 22.61 | 0.3205 | 785.0 | 641.7 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 21.32 | 160.75 | -7.63 | 20.13 | 0.3611 | 609.0 | 515.9 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 20.77 | 160.61 | -7.77 | 21.04 | 0.3536 | 855.0 | 707.1 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 20.52 | 160.53 | -7.85 | 21.54 | 0.3502 | 862.0 | 698.1 | |
| 0.00 | 0.54 | 0.00 | 0.28 | 17.55 | 160.64 | -7.75 | 25.06 | 0.3048 | 981.0 | 815.3 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 20.58 | 159.97 | -8.42 | 22.84 | 0.3546 | 691.0 | 510.3 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 18.05 | 160.06 | -8.32 | 25.89 | 0.3164 | 963.0 | 739.3 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 18.05 | 159.90 | -8.48 | 26.33 | 0.3176 | 1128.0 | 898.1 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 18.94 | 159.86 | -8.53 | 25.18 | 0.3310 | 843.0 | 625.6 | |
| 0.00 | 2.36 | 0.00 | 1.24 | 19.74 | 159.82 | -8.57 | 24.23 | 0.3431 | 796.0 | 593.2 | |
| 0.00 | 2.63 | 0.00 | 1.38 | 18.56 | 159.84 | -8.54 | 25.74 | 0.3255 | 1059.0 | 728.9 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 20.29 | 159.65 | -8.73 | 23.94 | 0.3523 | 922.0 | 755.9 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 20.35 | 159.42 | -8.96 | 24.42 | 0.3548 | 882.0 | 707.9 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 19.20 | 159.42 | -8.96 | 25.94 | 0.3379 | 730.0 | 463.4 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 14.27 | 159.49 | -8.89 | 34.30 | 0.2670 | 812.0 | 640.8 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 15.71 | 159.34 | -9.05 | 31.81 | 0.2884 | 886.0 | 631.6 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 23.50 | 157.70 | -10.68 | 24.49 | 0.4119 | 763.0 | 541.5 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 21.50 | 157.35 | -11.03 | 27.57 | 0.3861 | 731.0 | 618.3 | |
| 0.00 | 0.64 | 0.00 | 0.33 | 14.07 | 157.65 | -10.73 | 39.85 | 0.2831 | 913.0 | 678.3 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 15.91 | 155.10 | -13.29 | 41.74 | 0.3335 | 771.0 | 530.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
