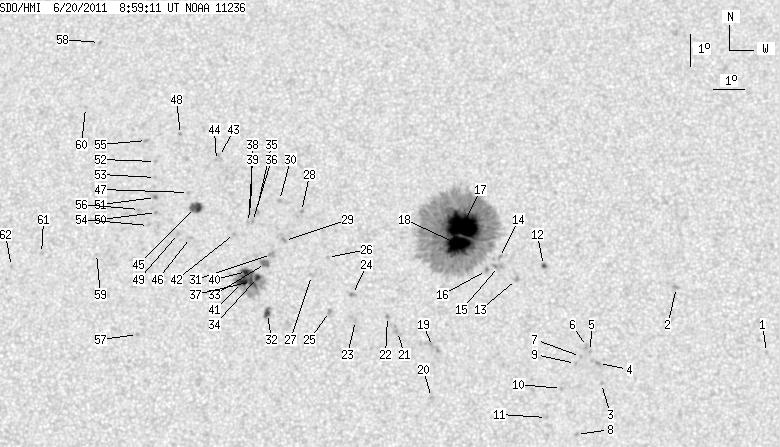

SDO HMI 2011-06-20 08:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 112.81 | 709.49 | 58.12 | 365.52 | 17.16 | 168.40 | 1.11 | 355.94 | 0.2751 | -415.7 | -294.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-20 08:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.71 | 13.67 | 179.30 | 12.01 | 316.02 | 0.2924 | -799.0 | -570.7 | |
| 0.00 | 2.54 | 0.00 | 1.31 | 15.72 | 176.51 | 9.22 | 327.70 | 0.2900 | -1024.0 | -781.0 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 12.73 | 174.02 | 6.74 | 329.34 | 0.2253 | -801.0 | -589.4 | |
| 0.00 | 2.72 | 0.00 | 1.39 | 13.35 | 173.95 | 6.66 | 331.01 | 0.2338 | -1041.0 | -841.5 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 13.73 | 173.70 | 6.42 | 332.66 | 0.2374 | -867.0 | -646.3 | |
| 0.00 | 3.09 | 0.00 | 1.57 | 13.88 | 173.58 | 6.29 | 333.41 | 0.2389 | -770.0 | -701.7 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 13.57 | 173.39 | 6.10 | 333.53 | 0.2327 | -839.0 | -664.4 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 11.15 | 173.20 | 5.92 | 328.63 | 0.1951 | -984.0 | -753.6 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 13.35 | 173.22 | 5.93 | 333.71 | 0.2281 | -846.0 | -651.7 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 12.58 | 172.76 | 5.48 | 333.92 | 0.2128 | -945.0 | -748.8 | |
| 0.00 | 1.72 | 0.00 | 0.87 | 11.68 | 172.28 | 4.99 | 334.03 | 0.1954 | -923.0 | -663.3 | |
| 1.82 | 2.27 | 0.93 | 1.17 | 16.42 | 172.29 | 5.00 | 341.90 | 0.2702 | 986.3 | 801.2 | |
| 0.00 | 2.63 | 0.00 | 1.35 | 15.99 | 171.42 | 4.13 | 344.42 | 0.2589 | 701.0 | 510.0 | |
| 0.00 | 2.72 | 0.00 | 1.40 | 16.68 | 170.89 | 3.60 | 346.96 | 0.2680 | -935.0 | -712.3 | |
| 0.00 | 6.99 | 0.00 | 3.59 | 16.40 | 170.85 | 3.57 | 346.84 | 0.2632 | -412.0 | -487.1 | |
| 0.00 | 2.00 | 0.00 | 1.02 | 16.27 | 170.47 | 3.18 | 348.11 | 0.2597 | -932.0 | -735.6 | |
| 53.54 | 519.29 | 27.63 | 267.70 | 17.69 | 169.73 | 2.44 | 351.68 | 0.2812 | -1510.8 | -470.3 | |
| 27.41 | -17.00 | 14.10 | -17.00 | 17.09 | 169.59 | 2.30 | 351.81 | 0.2708 | -1721.8 | 999999 | |
| 0.00 | 7.99 | 0.00 | 4.05 | 13.89 | 168.74 | 1.45 | 353.41 | 0.2150 | -870.0 | -674.9 | |
| 0.00 | 1.72 | 0.00 | 0.87 | 12.31 | 168.70 | 1.41 | 352.61 | 0.1879 | -987.0 | -666.9 | |
| 0.00 | 4.72 | 0.00 | 2.40 | 14.36 | 167.64 | 0.35 | 358.45 | 0.2217 | -795.0 | -754.4 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 14.83 | 167.33 | 0.04 | 359.84 | 0.2296 | -1081.0 | -923.8 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 14.70 | 166.32 | -0.97 | 4.13 | 0.2281 | -1002.0 | -752.7 | |
| 0.00 | 2.81 | 0.00 | 1.44 | 15.52 | 166.22 | -1.07 | 4.27 | 0.2420 | -939.0 | -762.9 | |
| 0.00 | 2.81 | 0.00 | 1.43 | 14.98 | 165.50 | -1.79 | 7.43 | 0.2343 | -1024.0 | -788.7 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 16.68 | 165.42 | -1.87 | 6.85 | 0.2630 | 842.0 | 570.2 | |
| 0.00 | 2.09 | 0.00 | 1.07 | 16.11 | 164.92 | -2.37 | 9.02 | 0.2547 | 497.0 | 389.8 | |
| 0.00 | 1.82 | 0.00 | 0.94 | 18.14 | 164.57 | -2.72 | 9.00 | 0.2892 | 851.0 | 704.7 | |
| 0.00 | 2.18 | 0.00 | 1.12 | 17.22 | 164.04 | -3.25 | 11.37 | 0.2756 | 1095.0 | 895.5 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 18.49 | 163.86 | -3.43 | 11.06 | 0.2971 | 816.0 | 640.1 | |
| 0.00 | 3.90 | 0.00 | 2.01 | 16.77 | 163.63 | -3.65 | 13.13 | 0.2698 | 996.0 | 855.8 | |
| 3.63 | 6.17 | 1.85 | 3.15 | 14.92 | 163.54 | -3.75 | 15.34 | 0.2398 | -987.8 | -782.2 | |
| 4.81 | 5.99 | 2.47 | 3.08 | 16.49 | 163.45 | -3.84 | 14.04 | 0.2659 | 1017.0 | 828.2 | |
| 2.54 | 56.72 | 1.30 | 29.08 | 16.05 | 163.20 | -4.08 | 15.35 | 0.2597 | 1151.9 | 724.3 | |
| 0.00 | 2.90 | 0.00 | 1.50 | 18.14 | 163.13 | -4.16 | 13.63 | 0.2940 | 819.0 | 754.7 | |
| 0.00 | 2.09 | 0.00 | 1.08 | 17.82 | 163.00 | -4.28 | 14.29 | 0.2893 | 968.0 | 772.8 | |
| 2.27 | -34.00 | 1.16 | -34.00 | 15.92 | 163.02 | -4.27 | 16.16 | 0.2585 | 1335.7 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.22 | 18.10 | 162.93 | -4.35 | 14.26 | 0.2942 | 660.0 | 515.5 | |
| 0.00 | 2.09 | 0.00 | 1.08 | 17.79 | 162.88 | -4.41 | 14.73 | 0.2893 | 788.0 | 605.5 | |
| 3.09 | -34.00 | 1.58 | -34.00 | 16.24 | 162.85 | -4.44 | 16.40 | 0.2644 | 992.7 | 999999 | |
| 3.45 | -34.00 | 1.77 | -34.00 | 15.89 | 162.73 | -4.56 | 17.21 | 0.2594 | 1189.6 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 17.44 | 162.44 | -4.85 | 16.48 | 0.2857 | 849.0 | 628.9 | |
| 0.00 | 2.36 | 0.00 | 1.24 | 19.89 | 161.88 | -5.41 | 15.78 | 0.3274 | 686.0 | 550.1 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 19.76 | 161.78 | -5.50 | 16.16 | 0.3258 | 463.0 | 463.2 | |
| 9.89 | 11.16 | 5.14 | 5.80 | 18.26 | 161.16 | -6.13 | 19.49 | 0.3053 | 1001.2 | 748.5 | |
| 0.00 | 2.27 | 0.00 | 1.17 | 17.31 | 161.03 | -6.26 | 21.04 | 0.2912 | 858.0 | 613.6 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 18.73 | 160.91 | -6.37 | 19.64 | 0.3141 | 900.0 | 690.1 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 20.59 | 160.58 | -6.71 | 18.58 | 0.3448 | 886.0 | 767.2 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 17.43 | 160.64 | -6.65 | 22.05 | 0.2955 | 940.0 | 799.7 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 18.09 | 159.90 | -7.38 | 23.28 | 0.3104 | 1049.0 | 899.9 | |
| 0.36 | 2.09 | 0.19 | 1.09 | 18.57 | 159.85 | -7.44 | 22.80 | 0.3180 | 1097.5 | 672.4 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 19.72 | 159.80 | -7.49 | 21.53 | 0.3358 | 958.0 | 718.4 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 19.21 | 159.82 | -7.46 | 22.07 | 0.3279 | 791.0 | 612.8 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 17.68 | 159.66 | -7.62 | 24.53 | 0.3058 | 830.0 | 605.1 | |
| 0.00 | 1.91 | 0.00 | 1.01 | 20.40 | 159.47 | -7.82 | 21.59 | 0.3480 | 877.0 | 691.3 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 18.19 | 159.35 | -7.94 | 24.68 | 0.3156 | 727.0 | 656.6 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 14.25 | 159.45 | -7.84 | 31.12 | 0.2570 | 859.0 | 670.5 | |
| 0.00 | 1.63 | 0.00 | 0.88 | 23.58 | 157.71 | -9.58 | 22.16 | 0.4059 | 826.0 | 586.5 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 16.79 | 158.03 | -9.26 | 30.44 | 0.3054 | 626.0 | 550.7 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 21.45 | 157.39 | -9.89 | 25.20 | 0.3771 | 674.0 | 523.8 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 16.78 | 156.25 | -11.04 | 34.96 | 0.3212 | 631.0 | 439.8 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 16.37 | 155.30 | -11.98 | 37.98 | 0.3252 | 826.0 | 652.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
