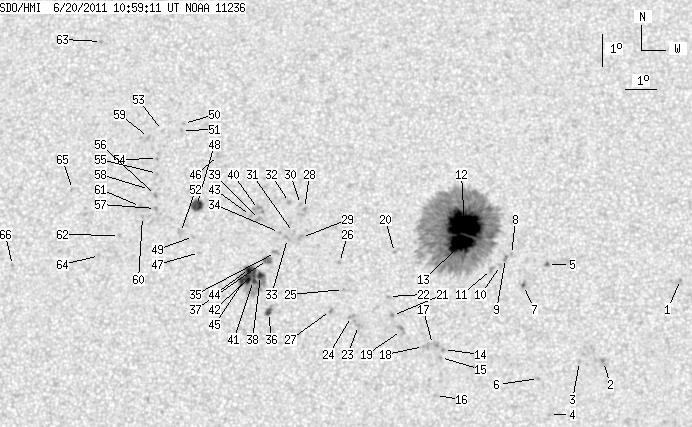

SDO HMI 2011-06-20 10:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 121.68 | 730.71 | 62.70 | 376.63 | 17.20 | 168.18 | 1.99 | 352.99 | 0.2767 | -358.4 | -269.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-20 10:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.47 | 15.90 | 176.58 | 10.39 | 324.94 | 0.3032 | -809.0 | -724.0 | |
| 0.00 | 3.45 | 0.00 | 1.76 | 13.35 | 174.02 | 7.83 | 326.94 | 0.2439 | -914.0 | -780.5 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 13.35 | 173.26 | 7.07 | 329.53 | 0.2372 | -895.0 | -630.7 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 11.71 | 172.28 | 6.08 | 329.38 | 0.2047 | -830.0 | -605.4 | |
| 1.09 | 1.36 | 0.56 | 0.70 | 16.39 | 172.34 | 6.15 | 338.07 | 0.2762 | 982.8 | 1007.0 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 12.83 | 171.96 | 5.76 | 333.27 | 0.2187 | -880.0 | -587.7 | |
| 1.27 | 2.72 | 0.65 | 1.40 | 15.73 | 171.55 | 5.36 | 339.75 | 0.2612 | 772.8 | 368.0 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 16.71 | 171.20 | 5.01 | 342.20 | 0.2747 | -706.0 | -549.2 | |
| 0.00 | 2.18 | 0.00 | 1.12 | 16.58 | 171.00 | 4.81 | 342.71 | 0.2717 | -933.0 | -762.7 | |
| 0.00 | 2.54 | 0.00 | 1.31 | 16.36 | 170.84 | 4.65 | 343.02 | 0.2674 | -888.0 | -652.5 | |
| 0.00 | 3.09 | 0.00 | 1.58 | 16.24 | 170.55 | 4.36 | 343.88 | 0.2639 | -897.0 | -692.6 | |
| 54.08 | 532.03 | 27.93 | 274.49 | 17.66 | 169.72 | 3.53 | 348.03 | 0.2838 | -1489.8 | -450.0 | |
| 30.13 | -12.00 | 15.51 | -12.00 | 17.06 | 169.61 | 3.42 | 347.91 | 0.2735 | -1676.6 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 13.74 | 168.99 | 2.80 | 347.26 | 0.2162 | -940.0 | -783.5 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 13.49 | 168.89 | 2.70 | 347.43 | 0.2116 | -955.0 | -682.3 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 12.31 | 168.72 | 2.53 | 346.89 | 0.1913 | -862.0 | -613.4 | |
| 0.00 | 6.44 | 0.00 | 3.27 | 13.89 | 168.65 | 2.46 | 348.93 | 0.2176 | -592.0 | -720.2 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 13.83 | 168.36 | 2.17 | 350.13 | 0.2156 | -858.0 | -703.8 | |
| 0.00 | 5.63 | 0.00 | 2.86 | 14.33 | 167.68 | 1.49 | 353.49 | 0.2224 | -929.0 | -782.3 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 16.78 | 167.47 | 1.28 | 355.32 | 0.2635 | 647.0 | 502.0 | |
| 0.00 | 2.18 | 0.00 | 1.11 | 14.80 | 167.40 | 1.21 | 354.90 | 0.2299 | -1042.0 | -812.8 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 15.39 | 167.27 | 1.08 | 355.63 | 0.2398 | -859.0 | -568.7 | |
| 0.00 | 4.81 | 0.00 | 2.44 | 14.49 | 166.32 | 0.13 | 359.42 | 0.2237 | -928.0 | -690.6 | |
| 0.00 | 3.09 | 0.00 | 1.57 | 14.77 | 166.10 | -0.09 | 0.37 | 0.2285 | -762.0 | -730.6 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 15.61 | 165.85 | -0.34 | 1.35 | 0.2430 | -780.0 | -629.0 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 16.46 | 165.72 | -0.47 | 1.75 | 0.2574 | 710.0 | 523.3 | |
| 0.00 | 2.27 | 0.00 | 1.16 | 14.96 | 165.44 | -0.75 | 3.13 | 0.2320 | -963.0 | -772.6 | |
| 0.00 | 2.00 | 0.00 | 1.03 | 18.17 | 164.60 | -1.59 | 5.30 | 0.2874 | 857.0 | 705.6 | |
| 0.00 | 3.27 | 0.00 | 1.68 | 17.25 | 164.51 | -1.68 | 5.94 | 0.2721 | 595.0 | 731.0 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 18.30 | 164.47 | -1.72 | 5.68 | 0.2897 | 744.0 | 537.8 | |
| 0.00 | 2.09 | 0.00 | 1.08 | 17.41 | 164.25 | -1.94 | 6.77 | 0.2752 | 652.0 | 638.8 | |
| 0.00 | 2.18 | 0.00 | 1.13 | 18.36 | 164.11 | -2.08 | 6.81 | 0.2914 | 828.0 | 718.5 | |
| 0.00 | 2.99 | 0.00 | 1.54 | 17.22 | 164.06 | -2.13 | 7.52 | 0.2725 | 909.0 | 773.5 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 17.41 | 163.80 | -2.39 | 8.31 | 0.2762 | 871.0 | 726.3 | |
| 0.00 | 3.09 | 0.00 | 1.59 | 16.78 | 163.69 | -2.51 | 9.09 | 0.2660 | 1038.0 | 802.9 | |
| 3.72 | 5.81 | 1.90 | 2.96 | 14.89 | 163.49 | -2.70 | 11.23 | 0.2351 | -993.7 | -712.5 | |
| 0.00 | 6.08 | 0.00 | 3.12 | 16.56 | 163.43 | -2.76 | 10.14 | 0.2630 | 1202.0 | 976.9 | |
| 3.63 | 55.54 | 1.86 | 28.43 | 16.05 | 163.22 | -2.97 | 11.31 | 0.2553 | 1092.2 | 605.5 | |
| 0.00 | 3.18 | 0.00 | 1.64 | 17.82 | 163.16 | -3.03 | 10.23 | 0.2848 | 986.0 | 840.1 | |
| 0.00 | 8.35 | 0.00 | 4.32 | 18.14 | 163.12 | -3.07 | 10.15 | 0.2901 | 776.0 | 667.3 | |
| 2.27 | -38.00 | 1.16 | -38.00 | 15.89 | 163.00 | -3.19 | 12.25 | 0.2535 | 1245.2 | 999999 | |
| 3.36 | -38.00 | 1.72 | -38.00 | 16.11 | 163.00 | -3.20 | 12.08 | 0.2571 | 1126.5 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 17.95 | 162.87 | -3.32 | 11.10 | 0.2878 | 756.0 | 630.7 | |
| 4.08 | -38.00 | 2.09 | -38.00 | 16.27 | 162.87 | -3.33 | 12.41 | 0.2602 | 923.0 | 999999 | |
| 7.71 | -38.00 | 3.95 | -38.00 | 15.93 | 162.71 | -3.48 | 13.28 | 0.2550 | 1141.4 | 999999 | |
| 0.00 | 2.99 | 0.00 | 1.57 | 19.86 | 161.79 | -4.40 | 12.98 | 0.3227 | 842.0 | 553.7 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 16.77 | 161.26 | -4.93 | 17.46 | 0.2753 | 790.0 | 576.6 | |
| 10.34 | 10.71 | 5.37 | 5.56 | 18.26 | 161.12 | -5.07 | 16.32 | 0.2998 | 992.8 | 777.2 | |
| 0.00 | 1.91 | 0.00 | 0.98 | 17.28 | 161.06 | -5.13 | 17.56 | 0.2844 | 844.0 | 655.0 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 20.89 | 160.62 | -5.58 | 15.38 | 0.3438 | 820.0 | 649.0 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 20.66 | 160.56 | -5.63 | 15.72 | 0.3405 | 816.0 | 673.4 | |
| 0.00 | 4.45 | 0.00 | 2.30 | 17.40 | 160.64 | -5.55 | 18.75 | 0.2886 | 790.0 | 652.5 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 20.66 | 159.94 | -6.25 | 17.35 | 0.3434 | 726.0 | 454.5 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 19.76 | 159.81 | -6.38 | 18.56 | 0.3300 | 988.0 | 788.8 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 19.28 | 159.83 | -6.36 | 19.01 | 0.3224 | 804.0 | 680.5 | |
| 0.00 | 1.91 | 0.00 | 0.99 | 18.58 | 159.79 | -6.40 | 19.90 | 0.3117 | 1103.0 | 869.6 | |
| 0.00 | 2.00 | 0.00 | 1.04 | 18.16 | 159.81 | -6.38 | 20.35 | 0.3052 | 977.0 | 875.8 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 18.77 | 159.59 | -6.60 | 20.25 | 0.3158 | 594.0 | 490.2 | |
| 0.00 | 2.27 | 0.00 | 1.20 | 20.43 | 159.49 | -6.70 | 18.73 | 0.3422 | 882.0 | 644.3 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 17.91 | 159.40 | -6.79 | 21.86 | 0.3037 | 849.0 | 700.5 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 18.22 | 159.32 | -6.87 | 21.67 | 0.3090 | 729.0 | 614.5 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 17.30 | 158.68 | -7.51 | 24.76 | 0.2992 | 745.0 | 545.4 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 23.55 | 157.76 | -8.43 | 19.78 | 0.3988 | 762.0 | 607.0 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 16.67 | 158.06 | -8.13 | 27.52 | 0.2943 | 355.0 | 469.5 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 18.76 | 157.09 | -9.10 | 26.92 | 0.3323 | 506.0 | 535.3 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 16.34 | 155.28 | -10.91 | 35.51 | 0.3141 | 813.0 | 613.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
