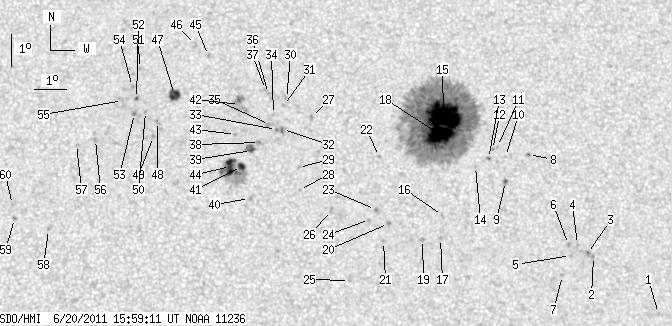

SDO HMI 2011-06-20 15:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 114.75 | 669.88 | 59.34 | 346.29 | 17.21 | 168.31 | 4.87 | 343.56 | 0.2864 | -461.5 | -250.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-20 15:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.75 | 11.44 | 176.29 | 12.85 | 308.11 | 0.2784 | -771.0 | -638.1 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 13.22 | 174.30 | 10.87 | 317.66 | 0.2736 | -819.0 | -742.4 | |
| 0.00 | 2.54 | 0.00 | 1.31 | 13.31 | 174.11 | 10.68 | 318.38 | 0.2727 | -1005.0 | -748.7 | |
| 0.00 | 0.36 | 0.00 | 0.19 | 13.59 | 173.80 | 10.37 | 319.89 | 0.2728 | -647.0 | -680.2 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 13.25 | 173.57 | 10.14 | 319.69 | 0.2659 | -868.0 | -640.2 | |
| 0.00 | 1.63 | 0.00 | 0.84 | 13.59 | 173.52 | 10.09 | 320.67 | 0.2698 | -862.0 | -734.5 | |
| 0.00 | 1.72 | 0.00 | 0.88 | 12.63 | 173.29 | 9.86 | 318.87 | 0.2551 | -873.0 | -716.6 | |
| 0.00 | 1.63 | 0.00 | 0.85 | 16.42 | 172.37 | 8.93 | 329.76 | 0.2971 | 955.0 | 790.7 | |
| 1.09 | 1.18 | 0.56 | 0.61 | 15.57 | 171.59 | 8.16 | 330.45 | 0.2785 | 904.8 | 781.5 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 16.36 | 171.63 | 8.19 | 331.75 | 0.2902 | 642.0 | 393.2 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 16.67 | 171.38 | 7.95 | 332.98 | 0.2929 | -636.0 | -507.4 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 16.58 | 171.22 | 7.79 | 333.31 | 0.2903 | -797.0 | -623.0 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 16.30 | 171.08 | 7.65 | 333.26 | 0.2851 | -835.0 | -693.2 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 16.05 | 170.65 | 7.22 | 334.14 | 0.2782 | -879.0 | -602.7 | |
| 59.14 | 504.89 | 30.67 | 261.51 | 17.66 | 169.69 | 6.25 | 339.41 | 0.2965 | -1474.0 | -458.1 | |
| 0.00 | 1.90 | 0.00 | 0.97 | 14.51 | 169.55 | 6.12 | 335.17 | 0.2470 | -809.0 | -604.5 | |
| 0.00 | 1.72 | 0.00 | 0.88 | 13.80 | 169.47 | 6.04 | 334.15 | 0.2354 | -681.0 | -524.4 | |
| 30.48 | -15.00 | 15.75 | -15.00 | 17.06 | 169.54 | 6.10 | 339.10 | 0.2862 | -1700.3 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.15 | 13.77 | 168.90 | 5.47 | 336.24 | 0.2309 | -937.0 | -716.1 | |
| 0.00 | 2.00 | 0.00 | 1.02 | 14.27 | 167.84 | 4.41 | 341.19 | 0.2323 | -1047.0 | -812.3 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 13.71 | 167.68 | 4.24 | 341.04 | 0.2223 | -847.0 | -728.1 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 16.37 | 167.60 | 4.17 | 344.67 | 0.2651 | 734.0 | 473.4 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 14.71 | 167.44 | 4.01 | 343.36 | 0.2373 | -956.0 | -798.8 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 14.39 | 167.25 | 3.82 | 343.74 | 0.2313 | -862.0 | -729.6 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 12.50 | 166.59 | 3.16 | 344.07 | 0.1970 | -887.0 | -609.5 | |
| 0.00 | 2.45 | 0.00 | 1.25 | 14.68 | 166.05 | 2.62 | 348.91 | 0.2311 | -849.0 | -741.6 | |
| 0.00 | 2.72 | 0.00 | 1.40 | 17.61 | 165.45 | 2.02 | 353.03 | 0.2785 | 632.0 | 572.5 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 15.34 | 165.05 | 1.62 | 353.44 | 0.2396 | -687.0 | -589.3 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 16.03 | 165.03 | 1.59 | 353.87 | 0.2512 | 852.0 | 624.4 | |
| 0.00 | 3.63 | 0.00 | 1.88 | 18.21 | 164.66 | 1.23 | 355.92 | 0.2873 | 769.0 | 577.7 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 17.99 | 164.56 | 1.13 | 356.19 | 0.2835 | 856.0 | 634.3 | |
| 0.00 | 2.36 | 0.00 | 1.21 | 17.23 | 164.52 | 1.09 | 356.12 | 0.2707 | 975.0 | 861.7 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 17.23 | 164.33 | 0.90 | 356.80 | 0.2705 | 1035.0 | 863.4 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 17.70 | 164.24 | 0.81 | 357.22 | 0.2784 | 820.0 | 585.6 | |
| 0.00 | 2.99 | 0.00 | 1.54 | 17.38 | 164.11 | 0.68 | 357.61 | 0.2730 | 916.0 | 792.4 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 18.37 | 164.08 | 0.65 | 357.86 | 0.2895 | 813.0 | 639.8 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 18.50 | 163.99 | 0.56 | 358.19 | 0.2915 | 817.0 | 600.5 | |
| 0.00 | 2.99 | 0.00 | 1.54 | 16.82 | 163.79 | 0.36 | 358.69 | 0.2632 | 963.0 | 785.5 | |
| 2.00 | 6.08 | 1.02 | 3.12 | 16.56 | 163.54 | 0.10 | 359.61 | 0.2588 | 988.6 | 955.9 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 15.06 | 163.47 | 0.04 | 359.83 | 0.2332 | -1009.0 | -826.1 | |
| 3.27 | 48.89 | 1.67 | 24.99 | 16.06 | 163.22 | -0.21 | 0.82 | 0.2503 | 1089.3 | 675.4 | |
| 0.00 | 16.51 | 0.00 | 8.53 | 18.02 | 163.15 | -0.28 | 0.94 | 0.2834 | 570.0 | 738.2 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 17.07 | 163.03 | -0.40 | 1.45 | 0.2675 | 894.0 | 748.7 | |
| 9.43 | -41.00 | 4.83 | -41.00 | 16.06 | 162.87 | -0.56 | 2.16 | 0.2505 | 1180.0 | 999999 | |
| 0.00 | 1.90 | 0.00 | 0.99 | 19.58 | 162.15 | -1.28 | 3.92 | 0.3103 | 851.0 | 478.1 | |
| 0.00 | 2.63 | 0.00 | 1.37 | 19.93 | 161.72 | -1.71 | 5.10 | 0.3167 | 752.0 | 609.0 | |
| 9.34 | 9.89 | 4.84 | 5.12 | 18.33 | 161.07 | -2.37 | 7.76 | 0.2914 | 987.2 | 692.1 | |
| 0.00 | 1.72 | 0.00 | 0.89 | 17.48 | 160.53 | -2.90 | 10.01 | 0.2786 | 850.0 | 734.4 | |
| 0.00 | 1.72 | 0.00 | 0.89 | 17.00 | 160.41 | -3.02 | 10.75 | 0.2711 | 966.0 | 761.9 | |
| 0.00 | 0.73 | 0.00 | 0.37 | 17.79 | 160.15 | -3.29 | 11.09 | 0.2850 | 934.0 | 813.0 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 19.16 | 159.92 | -3.51 | 10.86 | 0.3081 | 822.0 | 633.6 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 18.21 | 159.85 | -3.58 | 11.75 | 0.2927 | 1001.0 | 854.3 | |
| 0.00 | 2.18 | 0.00 | 1.12 | 17.73 | 159.79 | -3.64 | 12.29 | 0.2851 | 1066.0 | 858.9 | |
| 0.00 | 1.81 | 0.00 | 0.94 | 18.59 | 159.71 | -3.72 | 11.90 | 0.2994 | 1055.0 | 743.2 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 18.14 | 159.40 | -4.03 | 13.23 | 0.2933 | 762.0 | 570.6 | |
| 0.00 | 1.90 | 0.00 | 0.98 | 16.90 | 158.57 | -4.87 | 17.12 | 0.2770 | 751.0 | 645.0 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 16.75 | 157.96 | -5.47 | 19.28 | 0.2776 | 621.0 | 584.2 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 14.08 | 157.15 | -6.28 | 26.20 | 0.2415 | -751.0 | -520.5 | |
| 0.00 | 1.63 | 0.00 | 0.84 | 14.42 | 156.06 | -7.37 | 29.28 | 0.2551 | 1007.0 | 856.9 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 14.85 | 155.99 | -7.45 | 28.68 | 0.2622 | 965.0 | 747.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
