SDO HMI 2011-06-20 17:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 113.64 | 662.04 | 58.84 | 342.89 | 17.25 | 168.38 | 6.06 | 339.98 | 0.2927 | -446.8 | -261.3 | |
|
previous
or next observation for the same group /

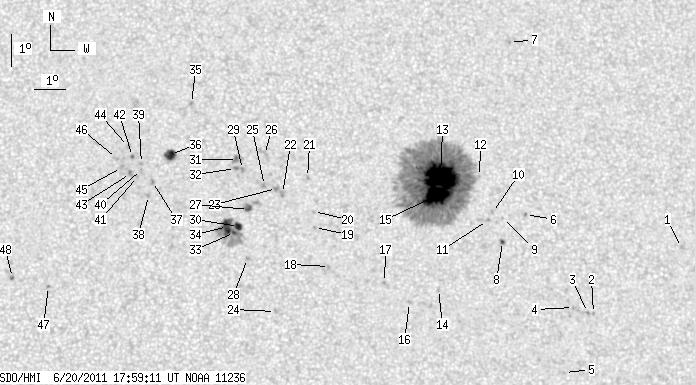

back to the solar disc SDO HMI 2011-06-20 17:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.09 | 0.00 | 1.10 | 15.35 | 177.38 | 15.06 | 313.54 | 0.3471 | -770.0 | -585.2 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 13.31 | 174.41 | 12.08 | 314.89 | 0.2888 | -704.0 | -583.3 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 13.34 | 174.22 | 11.89 | 315.42 | 0.2870 | -899.0 | -784.3 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 13.50 | 173.78 | 11.45 | 316.87 | 0.2837 | -755.0 | -650.8 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 11.49 | 173.40 | 11.08 | 312.34 | 0.2559 | -822.0 | -613.1 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 16.42 | 172.38 | 10.06 | 326.75 | 0.3070 | 884.0 | 723.2 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 21.92 | 172.20 | 9.88 | 335.37 | 0.3834 | -852.0 | -684.8 | |
| 1.63 | 1.81 | 0.84 | 0.94 | 15.57 | 171.60 | 9.28 | 327.22 | 0.2882 | 844.1 | 787.5 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 16.33 | 171.64 | 9.32 | 328.55 | 0.2990 | 551.0 | 374.0 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 16.49 | 171.32 | 9.00 | 329.69 | 0.2986 | -778.0 | -560.0 | |
| 0.00 | 1.72 | 0.00 | 0.89 | 16.24 | 171.15 | 8.83 | 329.72 | 0.2936 | -822.0 | -685.2 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 17.63 | 170.96 | 8.64 | 332.57 | 0.3121 | 50.0 | 36.7 | |
| 55.06 | 514.10 | 28.61 | 266.81 | 17.63 | 169.70 | 7.38 | 336.06 | 0.3030 | -1514.6 | -462.0 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 14.08 | 169.51 | 7.19 | 330.64 | 0.2486 | -885.0 | -564.1 | |
| 30.29 | -13.00 | 15.69 | -13.00 | 17.03 | 169.55 | 7.23 | 335.64 | 0.2929 | -1718.3 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 13.68 | 168.58 | 6.26 | 333.10 | 0.2352 | -853.0 | -656.0 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 14.30 | 167.81 | 5.49 | 337.11 | 0.2392 | -975.0 | -817.7 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 14.81 | 166.08 | 3.76 | 344.45 | 0.2376 | -795.0 | -785.2 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 16.03 | 165.63 | 3.31 | 347.43 | 0.2559 | 695.0 | 549.5 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 16.53 | 165.61 | 3.28 | 347.95 | 0.2641 | 665.0 | 569.6 | |
| 0.00 | 1.72 | 0.00 | 0.89 | 17.61 | 165.43 | 3.11 | 349.36 | 0.2813 | 760.0 | 596.2 | |
| 0.00 | 3.45 | 0.00 | 1.77 | 17.10 | 164.63 | 2.31 | 351.80 | 0.2707 | 870.0 | 781.7 | |
| 0.00 | 2.27 | 0.00 | 1.17 | 17.26 | 164.44 | 2.12 | 352.54 | 0.2729 | 948.0 | 807.3 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 13.41 | 164.37 | 2.05 | 350.34 | 0.2079 | 678.0 | 521.0 | |
| 0.00 | 2.18 | 0.00 | 1.12 | 17.36 | 164.06 | 1.73 | 353.92 | 0.2737 | 1032.0 | 845.1 | |
| 0.00 | 6.35 | 0.00 | 3.29 | 18.34 | 164.07 | 1.74 | 354.26 | 0.2902 | 636.0 | 600.4 | |
| 3.17 | 9.61 | 1.63 | 4.93 | 16.60 | 163.54 | 1.22 | 355.49 | 0.2602 | 1012.1 | 817.1 | |
| 0.00 | 1.90 | 0.00 | 0.97 | 15.06 | 163.50 | 1.18 | 355.12 | 0.2341 | -976.0 | -678.0 | |
| 0.00 | 2.00 | 0.00 | 1.03 | 17.87 | 163.36 | 1.03 | 356.48 | 0.2813 | 939.0 | 848.0 | |
| 3.90 | 51.88 | 2.00 | 26.52 | 16.06 | 163.22 | 0.90 | 356.54 | 0.2508 | 1071.8 | 610.6 | |
| 0.00 | 7.89 | 0.00 | 4.08 | 18.18 | 163.20 | 0.88 | 357.08 | 0.2864 | 910.0 | 726.0 | |
| 0.00 | 1.90 | 0.00 | 0.98 | 17.90 | 163.13 | 0.81 | 357.25 | 0.2816 | 1098.0 | 968.8 | |
| 1.27 | -30.00 | 0.65 | -30.00 | 15.88 | 163.09 | 0.77 | 356.99 | 0.2474 | 1170.1 | 999999 | |
| 9.98 | -30.00 | 5.10 | -30.00 | 16.07 | 162.87 | 0.55 | 357.88 | 0.2505 | 1204.9 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 19.97 | 161.72 | -0.60 | 1.81 | 0.3161 | 846.0 | 703.6 | |
| 8.34 | 9.89 | 4.32 | 5.11 | 18.34 | 161.05 | -1.27 | 4.19 | 0.2895 | 1036.3 | 778.6 | |
| 0.00 | 2.18 | 0.00 | 1.12 | 17.48 | 160.48 | -1.84 | 6.40 | 0.2760 | 937.0 | 791.7 | |
| 0.00 | 1.63 | 0.00 | 0.84 | 17.04 | 160.36 | -1.96 | 7.03 | 0.2689 | 991.0 | 809.0 | |
| 0.00 | 1.63 | 0.00 | 0.84 | 18.05 | 160.12 | -2.20 | 7.36 | 0.2863 | 822.0 | 639.8 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 17.86 | 160.12 | -2.20 | 7.44 | 0.2831 | 983.0 | 816.9 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 17.64 | 160.00 | -2.32 | 7.97 | 0.2797 | 940.0 | 690.7 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 18.28 | 159.83 | -2.49 | 8.20 | 0.2906 | 957.0 | 806.2 | |
| 0.00 | 2.72 | 0.00 | 1.40 | 17.74 | 159.77 | -2.55 | 8.68 | 0.2818 | 1053.0 | 863.1 | |
| 0.00 | 1.63 | 0.00 | 0.85 | 18.59 | 159.70 | -2.62 | 8.46 | 0.2962 | 1012.0 | 716.2 | |
| 0.00 | 2.27 | 0.00 | 1.17 | 17.93 | 159.48 | -2.84 | 9.53 | 0.2857 | 761.0 | 686.1 | |
| 0.00 | 2.09 | 0.00 | 1.08 | 18.21 | 159.32 | -3.00 | 9.90 | 0.2909 | 804.0 | 630.5 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 14.18 | 157.24 | -5.08 | 21.57 | 0.2347 | -794.0 | -627.3 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 14.46 | 156.09 | -6.23 | 25.31 | 0.2468 | 1108.0 | 927.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
