groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

11236 117.58 647.16 61.29 337.73 17.28 168.21 9.22 331.05 0.3148 -327.7 -265.2


previous   or   next   observation for the same group / back to the solar disc

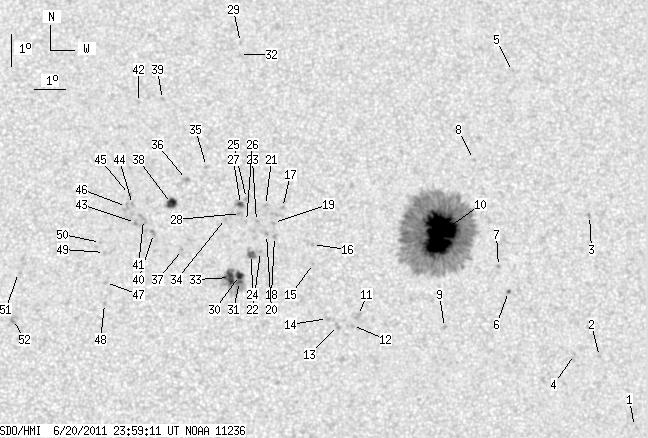

SDO HMI 2011-06-20 23:59:11 UT
No observation available
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0.00 0.36 0.00 0.19 11.30 175.58 16.58 301.05 0.3281 -307.0 -546.5
2 0.00 1.27 0.00 0.67 13.48 174.58 15.59 308.21 0.3340 -763.0 -589.4
3 0.00 1.91 0.00 1.02 17.91 174.60 15.61 317.64 0.3815 -747.0 -598.4
4 0.00 0.82 0.00 0.43 13.55 173.77 14.78 309.82 0.3243 -592.0 -602.6
5 0.00 0.54 0.00 0.30 22.56 172.46 13.47 328.95 0.4187 -481.0 -514.7
6 1.45 1.45 0.76 0.76 15.53 171.76 12.77 318.45 0.3224 623.3 0.0
7 0.00 1.27 0.00 0.67 16.32 171.48 12.49 320.69 0.3291 -839.0 -616.4
8 0.00 1.72 0.00 0.92 19.72 170.91 11.91 327.96 0.3678 -787.0 -543.9
9 0.00 1.91 0.00 0.98 14.42 169.64 10.64 321.03 0.2857 -811.0 -611.6
10 86.46 503.53 45.27 263.59 17.37 169.63 10.64 326.97 0.3247 -1527.1 -449.0
11 0.00 3.27 0.00 1.68 14.80 166.91 7.92 329.66 0.2648 -786.0 -707.6
12 0.00 1.36 0.00 0.70 14.49 166.71 7.71 329.67 0.2585 -927.0 -762.8
13 0.00 2.72 0.00 1.39 14.49 166.23 7.24 331.23 0.2546 -726.0 -623.6
14 0.00 2.63 0.00 1.35 14.71 165.92 6.93 332.68 0.2554 -969.0 -743.5
15 0.00 1.09 0.00 0.56 16.44 165.53 6.54 336.82 0.2788 788.0 637.7
16 0.00 1.00 0.00 0.52 17.04 165.52 6.53 337.71 0.2879 710.0 601.4
17 0.00 1.54 0.00 0.80 18.22 164.60 5.60 341.96 0.3009 843.0 612.4
18 0.00 1.91 0.00 0.98 17.30 164.31 5.32 341.82 0.2849 886.0 704.0
19 0.00 1.72 0.00 0.89 17.74 164.29 5.30 342.37 0.2918 834.0 684.0
20 0.00 1.45 0.00 0.75 17.36 164.06 5.06 342.70 0.2846 1042.0 810.6
21 0.00 2.27 0.00 1.18 18.28 164.05 5.06 343.68 0.2993 847.0 606.8
22 0.00 0.91 0.00 0.47 16.83 163.85 4.86 342.78 0.2750 871.0 723.9
23 0.00 1.36 0.00 0.70 17.77 163.75 4.76 344.12 0.2897 781.0 646.4
24 5.17 6.71 2.66 3.46 16.73 163.56 4.57 343.64 0.2721 1005.5 746.4
25 0.00 1.27 0.00 0.66 18.51 163.45 4.45 345.74 0.3002 728.0 642.9
26 0.00 0.91 0.00 0.47 17.78 163.43 4.43 345.14 0.2883 899.0 695.6
27 2.72 5.17 1.41 2.68 18.32 163.25 4.26 346.19 0.2963 908.2 614.1
28 0.00 2.27 0.00 1.17 18.03 163.24 4.25 345.96 0.2917 906.0 812.8
29 0.00 1.09 0.00 0.58 23.55 163.40 4.41 349.29 0.3809 751.0 576.5
30 3.90 45.18 2.00 23.15 16.07 163.16 4.17 344.30 0.2595 949.9 578.9
31 2.54 -30.00 1.30 -30.00 15.88 163.16 4.17 344.11 0.2564 950.1 999999
32 0.00 0.91 0.00 0.48 23.15 163.35 4.36 349.19 0.3745 738.0 588.1
33 8.44 -30.00 4.32 -30.00 16.01 162.85 3.85 345.38 0.2571 1198.5 999999
34 0.00 1.27 0.00 0.66 17.87 162.76 3.76 347.38 0.2872 696.0 569.6
35 0.00 1.72 0.00 0.90 19.53 162.18 3.19 350.31 0.3125 917.0 631.7
36 0.00 2.54 0.00 1.32 19.11 161.52 2.53 352.07 0.3040 981.0 796.6
37 0.00 1.36 0.00 0.70 16.89 161.37 2.37 351.42 0.2667 938.0 711.8
38 6.90 8.44 3.57 4.37 18.35 161.03 2.04 353.29 0.2903 1042.0 712.5
39 0.00 2.00 0.00 1.05 21.69 160.78 1.79 355.16 0.3450 578.0 458.9
40 0.00 2.45 0.00 1.26 17.40 160.45 1.45 354.90 0.2734 972.0 821.4
41 0.00 4.63 0.00 2.39 17.84 160.13 1.14 356.12 0.2804 825.0 733.7
42 0.00 1.27 0.00 0.67 21.59 159.99 1.00 357.27 0.3426 710.0 512.8
43 0.00 2.18 0.00 1.12 17.75 159.87 0.88 356.98 0.2785 1090.0 891.7
44 0.00 2.00 0.00 1.03 18.32 159.78 0.79 357.39 0.2880 977.0 688.8
45 0.00 1.63 0.00 0.85 18.64 159.68 0.69 357.75 0.2933 892.0 668.9
46 0.00 3.36 0.00 1.74 18.26 159.59 0.59 358.02 0.2869 711.0 695.4
47 0.00 1.81 0.00 0.93 15.85 158.91 -0.08 0.31 0.2461 883.0 637.2
48 0.00 1.45 0.00 0.74 15.20 158.88 -0.11 0.45 0.2349 984.0 748.8
49 0.00 1.54 0.00 0.79 16.80 158.88 -0.11 0.41 0.2621 853.0 653.5
50 0.00 1.09 0.00 0.56 17.12 158.75 -0.24 0.85 0.2675 805.0 625.7
51 0.00 0.64 0.00 0.33 16.17 156.15 -2.84 10.76 0.2559 582.0 602.3
52 0.00 4.26 0.00 2.17 14.69 156.02 -2.98 12.56 0.2319 881.0 786.0


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
