SDO HMI 2011-06-21 00:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 111.61 | 662.73 | 58.26 | 346.44 | 17.25 | 168.28 | 9.84 | 329.34 | 0.3196 | -247.1 | -251.8 | |
|
previous
or next observation for the same group /

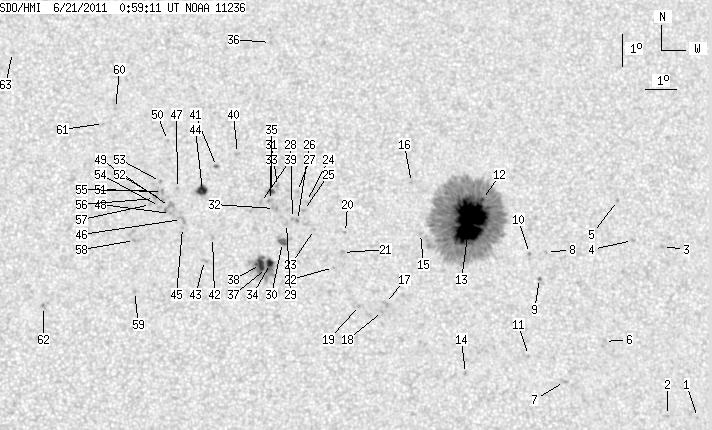

back to the solar disc SDO HMI 2011-06-21 00:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.58 | 11.17 | 176.64 | 18.20 | 298.50 | 0.3502 | -758.0 | -545.9 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 11.25 | 175.67 | 17.23 | 299.96 | 0.3368 | -890.0 | -646.7 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 16.51 | 175.91 | 17.47 | 311.79 | 0.3877 | -798.0 | -623.1 | |
| 0.00 | 1.63 | 0.00 | 0.87 | 16.71 | 174.93 | 16.49 | 313.77 | 0.3782 | 674.0 | 532.1 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 17.98 | 174.55 | 16.11 | 316.87 | 0.3877 | -799.0 | -644.0 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 13.56 | 173.77 | 15.33 | 308.82 | 0.3313 | -477.0 | -442.0 | |
| 0.00 | 3.27 | 0.00 | 1.70 | 12.32 | 172.40 | 13.96 | 308.21 | 0.3013 | -802.0 | -445.5 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 16.35 | 172.07 | 13.63 | 318.33 | 0.3417 | 686.0 | 535.8 | |
| 0.36 | 1.27 | 0.19 | 0.67 | 15.54 | 171.79 | 13.35 | 317.21 | 0.3289 | 706.0 | 541.2 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 16.33 | 171.52 | 13.08 | 319.43 | 0.3353 | -769.0 | -655.2 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 13.14 | 171.29 | 12.85 | 312.63 | 0.2956 | -762.0 | -488.2 | |
| 0.82 | 510.65 | 0.43 | 267.79 | 18.04 | 170.10 | 11.66 | 325.76 | 0.3430 | -782.8 | -448.3 | |
| 82.30 | -12.00 | 43.16 | -12.00 | 17.35 | 169.63 | 11.19 | 325.61 | 0.3293 | -1525.7 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.84 | 12.59 | 169.25 | 10.81 | 316.03 | 0.2649 | -875.0 | -680.9 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 16.98 | 168.02 | 9.58 | 328.93 | 0.3098 | -863.0 | -621.4 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 18.59 | 167.82 | 9.38 | 332.08 | 0.3311 | 664.0 | 470.4 | |
| 0.00 | 3.08 | 0.00 | 1.59 | 14.78 | 166.80 | 8.36 | 328.23 | 0.2682 | -913.0 | -751.2 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 14.53 | 166.69 | 8.25 | 328.04 | 0.2637 | -962.0 | -716.9 | |
| 0.00 | 1.72 | 0.00 | 0.88 | 14.72 | 165.97 | 7.53 | 330.71 | 0.2602 | -938.0 | -762.7 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 17.02 | 165.61 | 7.17 | 335.74 | 0.2916 | 596.0 | 485.6 | |
| 0.00 | 1.81 | 0.00 | 0.94 | 16.39 | 165.49 | 7.05 | 335.14 | 0.2813 | 745.0 | 694.2 | |
| 0.00 | 0.73 | 0.00 | 0.37 | 15.92 | 165.18 | 6.74 | 335.35 | 0.2720 | 721.0 | 498.9 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 17.12 | 164.62 | 6.18 | 338.89 | 0.2867 | 804.0 | 657.6 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 18.00 | 164.39 | 5.95 | 340.68 | 0.2993 | 785.0 | 641.1 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 17.72 | 164.28 | 5.84 | 340.67 | 0.2942 | 883.0 | 681.1 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 17.40 | 164.08 | 5.64 | 340.92 | 0.2881 | 973.0 | 825.5 | |
| 0.00 | 1.91 | 0.00 | 0.99 | 18.32 | 164.11 | 5.67 | 341.88 | 0.3028 | 721.0 | 572.6 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 17.47 | 163.92 | 5.48 | 341.49 | 0.2883 | 823.0 | 629.5 | |
| 0.00 | 2.09 | 0.00 | 1.08 | 17.31 | 163.73 | 5.29 | 341.93 | 0.2847 | 860.0 | 705.6 | |
| 4.99 | 9.16 | 2.57 | 4.72 | 16.71 | 163.58 | 5.14 | 341.70 | 0.2744 | 973.1 | 671.4 | |
| 0.00 | 2.90 | 0.00 | 1.51 | 18.48 | 163.47 | 5.03 | 343.96 | 0.3022 | 720.0 | 549.2 | |
| 0.00 | 3.99 | 0.00 | 2.07 | 17.78 | 163.35 | 4.91 | 343.62 | 0.2905 | 760.0 | 671.8 | |
| 2.72 | 2.81 | 1.41 | 1.46 | 18.32 | 163.27 | 4.83 | 344.41 | 0.2988 | 933.0 | 673.0 | |
| 3.90 | 41.47 | 2.00 | 21.26 | 16.05 | 163.18 | 4.74 | 342.26 | 0.2618 | 1002.7 | 623.6 | |
| 0.00 | 2.00 | 0.00 | 1.03 | 18.04 | 163.23 | 4.79 | 344.25 | 0.2940 | 865.0 | 806.5 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 23.13 | 163.40 | 4.96 | 347.75 | 0.3759 | 762.0 | 588.2 | |
| 2.09 | -34.00 | 1.07 | -34.00 | 15.89 | 163.05 | 4.61 | 342.53 | 0.2586 | 1041.8 | 999999 | |
| 6.99 | -34.00 | 3.58 | -34.00 | 16.02 | 162.86 | 4.42 | 343.34 | 0.2597 | 1205.8 | 999999 | |
| 0.00 | 1.91 | 0.00 | 0.99 | 17.98 | 162.91 | 4.47 | 345.21 | 0.2916 | 791.0 | 662.9 | |
| 0.00 | 2.09 | 0.00 | 1.09 | 19.54 | 162.21 | 3.77 | 348.59 | 0.3143 | 782.0 | 600.7 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 19.12 | 161.52 | 3.08 | 350.40 | 0.3054 | 940.0 | 803.5 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 16.87 | 161.35 | 2.91 | 349.49 | 0.2677 | 940.0 | 665.5 | |
| 0.00 | 2.54 | 0.00 | 1.30 | 16.15 | 161.09 | 2.65 | 349.93 | 0.2549 | 719.0 | 593.5 | |
| 7.44 | 8.44 | 3.85 | 4.37 | 18.36 | 161.05 | 2.61 | 351.42 | 0.2916 | 1012.8 | 826.7 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 17.19 | 160.40 | 1.96 | 353.04 | 0.2706 | 845.0 | 662.0 | |
| 0.00 | 4.17 | 0.00 | 2.15 | 17.44 | 160.37 | 1.93 | 353.26 | 0.2747 | 737.0 | 730.1 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 18.42 | 160.25 | 1.81 | 354.06 | 0.2909 | 816.0 | 657.0 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 17.63 | 160.02 | 1.58 | 354.54 | 0.2773 | 1025.0 | 837.8 | |
| 0.00 | 5.72 | 0.00 | 2.95 | 17.85 | 159.99 | 1.55 | 354.72 | 0.2810 | 907.0 | 820.5 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 19.96 | 159.95 | 1.50 | 355.50 | 0.3160 | 852.0 | 598.2 | |
| 0.00 | 1.91 | 0.00 | 0.99 | 18.33 | 159.77 | 1.33 | 355.60 | 0.2886 | 933.0 | 718.6 | |
| 0.00 | 1.72 | 0.00 | 0.89 | 18.04 | 159.77 | 1.33 | 355.53 | 0.2838 | 984.0 | 807.8 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 18.65 | 159.71 | 1.27 | 355.89 | 0.2939 | 896.0 | 706.7 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 17.85 | 159.67 | 1.23 | 355.80 | 0.2805 | 846.0 | 742.2 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 18.33 | 159.61 | 1.17 | 356.13 | 0.2884 | 797.0 | 702.6 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 18.11 | 159.51 | 1.07 | 356.40 | 0.2846 | 797.0 | 627.9 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 17.92 | 159.38 | 0.94 | 356.80 | 0.2813 | 697.0 | 570.8 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 16.78 | 158.87 | 0.43 | 358.43 | 0.2617 | 918.0 | 728.1 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 15.17 | 158.86 | 0.42 | 358.25 | 0.2345 | 890.0 | 722.1 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 20.99 | 158.26 | -0.18 | 0.51 | 0.3321 | 710.0 | 469.6 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 20.50 | 157.87 | -0.57 | 1.66 | 0.3242 | 667.0 | 385.7 | |
| 0.00 | 1.72 | 0.00 | 0.88 | 14.70 | 156.00 | -2.44 | 10.37 | 0.2301 | 1056.0 | 855.5 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 22.80 | 154.85 | -3.59 | 9.10 | 0.3666 | 759.0 | 514.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
