SDO HMI 2011-06-21 04:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 110.00 | 649.05 | 57.87 | 341.66 | 17.24 | 168.24 | 12.00 | 324.12 | 0.3387 | -344.8 | -251.6 | |
|
previous
or next observation for the same group /

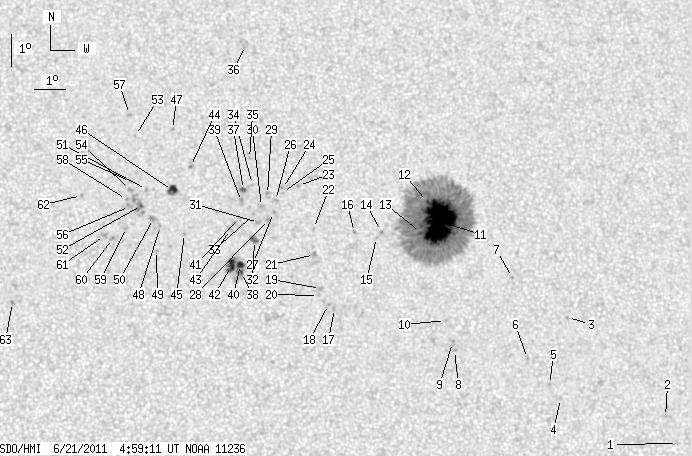

back to the solar disc SDO HMI 2011-06-21 04:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.58 | 10.35 | 176.95 | 20.71 | 293.61 | 0.3813 | -734.0 | -499.9 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 11.18 | 176.62 | 20.38 | 295.98 | 0.3816 | -810.0 | -707.4 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 14.29 | 173.62 | 17.38 | 307.12 | 0.3645 | -793.0 | -611.1 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 11.77 | 173.21 | 16.97 | 301.63 | 0.3370 | -844.0 | -646.4 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 12.21 | 172.88 | 16.64 | 303.24 | 0.3361 | -843.0 | -657.3 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 13.02 | 172.22 | 15.98 | 306.34 | 0.3343 | -737.0 | -612.7 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 15.55 | 171.91 | 15.67 | 312.73 | 0.3557 | 767.0 | 605.0 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 13.29 | 169.87 | 13.63 | 311.30 | 0.3066 | -883.0 | -658.1 | |
| 0.00 | 4.27 | 0.00 | 2.22 | 13.54 | 169.82 | 13.58 | 312.03 | 0.3087 | -548.0 | -643.3 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 14.22 | 169.64 | 13.39 | 314.08 | 0.3139 | -985.0 | -752.0 | |
| 83.32 | 502.92 | 44.05 | 265.85 | 17.33 | 169.65 | 13.41 | 320.66 | 0.3507 | -1563.3 | -445.5 | |
| 1.09 | -11.00 | 0.58 | -11.00 | 17.97 | 169.30 | 13.06 | 322.55 | 0.3551 | -1124.8 | 999999 | |
| 0.82 | -11.00 | 0.43 | -11.00 | 16.99 | 169.00 | 12.76 | 321.36 | 0.3398 | -1206.9 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 17.03 | 167.74 | 11.49 | 324.26 | 0.3276 | -884.0 | -778.1 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 16.84 | 167.56 | 11.32 | 324.31 | 0.3235 | -622.0 | -407.7 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 17.00 | 166.86 | 10.62 | 326.31 | 0.3190 | 681.0 | 592.1 | |
| 0.00 | 2.09 | 0.00 | 1.08 | 14.62 | 166.09 | 9.85 | 323.51 | 0.2796 | -915.0 | -751.4 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 14.74 | 165.91 | 9.66 | 324.30 | 0.2794 | -950.0 | -803.3 | |
| 0.00 | 2.00 | 0.00 | 1.03 | 15.25 | 165.67 | 9.43 | 326.01 | 0.2840 | -880.0 | -694.7 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 15.03 | 165.60 | 9.36 | 325.76 | 0.2803 | -690.0 | -597.2 | |
| 0.00 | 3.09 | 0.00 | 1.60 | 16.32 | 165.53 | 9.29 | 328.47 | 0.2976 | 881.0 | 677.2 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 17.14 | 165.54 | 9.30 | 329.90 | 0.3092 | 730.0 | 549.9 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 18.50 | 165.12 | 8.88 | 333.15 | 0.3256 | 741.0 | 472.8 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 18.41 | 164.60 | 8.36 | 334.39 | 0.3204 | 741.0 | 678.2 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 18.28 | 164.59 | 8.35 | 334.22 | 0.3184 | 744.0 | 522.5 | |
| 0.00 | 2.90 | 0.00 | 1.51 | 18.03 | 164.35 | 8.11 | 334.50 | 0.3130 | 696.0 | 595.9 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 17.65 | 164.27 | 8.03 | 334.16 | 0.3067 | 685.0 | 608.4 | |
| 0.00 | 1.72 | 0.00 | 0.90 | 17.43 | 164.10 | 7.86 | 334.31 | 0.3022 | 998.0 | 851.3 | |
| 0.00 | 2.90 | 0.00 | 1.51 | 18.22 | 164.10 | 7.86 | 335.45 | 0.3141 | 710.0 | 610.5 | |
| 0.00 | 2.45 | 0.00 | 1.28 | 17.84 | 163.89 | 7.65 | 335.50 | 0.3069 | 854.0 | 760.9 | |
| 0.00 | 2.45 | 0.00 | 1.27 | 17.33 | 163.77 | 7.53 | 335.10 | 0.2985 | 985.0 | 804.2 | |
| 1.54 | 4.36 | 0.80 | 2.25 | 16.76 | 163.62 | 7.38 | 334.68 | 0.2889 | 1118.9 | 937.0 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 17.59 | 163.62 | 7.38 | 335.90 | 0.3013 | 887.0 | 791.7 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 18.54 | 163.63 | 7.39 | 337.18 | 0.3157 | 606.0 | 436.5 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 19.37 | 163.57 | 7.33 | 338.37 | 0.3280 | 694.0 | 596.9 | |
| 0.00 | 3.09 | 0.00 | 1.65 | 23.02 | 163.62 | 7.38 | 341.99 | 0.3841 | 645.0 | 607.5 | |
| 2.36 | 2.90 | 1.23 | 1.51 | 18.38 | 163.33 | 7.09 | 337.80 | 0.3114 | 914.0 | 888.3 | |
| 1.72 | 28.77 | 0.89 | 14.80 | 15.76 | 163.17 | 6.93 | 334.46 | 0.2705 | 956.6 | 591.1 | |
| 0.00 | 2.27 | 0.00 | 1.18 | 18.00 | 163.25 | 7.01 | 337.53 | 0.3051 | 971.0 | 712.0 | |
| 4.08 | -38.00 | 2.10 | -38.00 | 16.01 | 163.15 | 6.90 | 334.95 | 0.2741 | 986.7 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 17.49 | 163.17 | 6.93 | 337.09 | 0.2968 | 792.0 | 642.4 | |
| 7.81 | -38.00 | 4.02 | -38.00 | 15.98 | 162.86 | 6.62 | 335.82 | 0.2716 | 1147.0 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.08 | 17.11 | 162.87 | 6.62 | 337.47 | 0.2890 | 984.0 | 657.5 | |
| 0.00 | 1.63 | 0.00 | 0.85 | 19.12 | 161.65 | 5.40 | 343.44 | 0.3136 | 899.0 | 699.4 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 16.99 | 161.39 | 5.15 | 341.98 | 0.2785 | 877.0 | 706.3 | |
| 6.72 | 8.17 | 3.49 | 4.24 | 18.36 | 161.04 | 4.80 | 344.51 | 0.2987 | 1007.5 | 731.6 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 20.31 | 161.10 | 4.86 | 346.02 | 0.3302 | -718.0 | -472.4 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 17.25 | 160.63 | 4.39 | 344.75 | 0.2789 | 854.0 | 638.4 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 16.46 | 160.48 | 4.24 | 344.44 | 0.2655 | 932.0 | 689.4 | |
| 0.00 | 4.18 | 0.00 | 2.15 | 17.47 | 160.41 | 4.17 | 345.69 | 0.2816 | 834.0 | 709.6 | |
| 0.00 | 1.63 | 0.00 | 0.85 | 18.39 | 160.20 | 3.96 | 347.13 | 0.2958 | 800.0 | 579.0 | |
| 0.54 | 10.35 | 0.28 | 5.35 | 17.88 | 160.03 | 3.79 | 347.27 | 0.2868 | 983.8 | 840.3 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 20.12 | 159.89 | 3.65 | 349.29 | 0.3228 | 740.0 | 620.2 | |
| 0.00 | 2.18 | 0.00 | 1.13 | 18.36 | 159.69 | 3.45 | 348.73 | 0.2935 | 915.0 | 739.0 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 18.65 | 159.70 | 3.45 | 348.91 | 0.2982 | 861.0 | 670.8 | |
| 0.00 | 3.09 | 0.00 | 1.59 | 17.85 | 159.65 | 3.41 | 348.50 | 0.2850 | 933.0 | 789.5 | |
| 0.00 | 2.00 | 0.00 | 1.05 | 20.79 | 159.71 | 3.47 | 350.19 | 0.3333 | 783.0 | 695.7 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 18.07 | 159.56 | 3.31 | 348.96 | 0.2883 | 862.0 | 726.3 | |
| 0.00 | 1.72 | 0.00 | 0.89 | 17.19 | 159.54 | 3.30 | 348.36 | 0.2737 | 813.0 | 684.5 | |
| 0.00 | 2.18 | 0.00 | 1.12 | 16.84 | 159.09 | 2.85 | 349.68 | 0.2665 | 1057.0 | 842.2 | |
| 0.00 | 2.81 | 0.00 | 1.45 | 16.93 | 158.83 | 2.59 | 350.65 | 0.2673 | 912.0 | 711.5 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 18.20 | 158.11 | 1.87 | 353.76 | 0.2868 | 856.0 | 621.8 | |
| 0.00 | 1.72 | 0.00 | 0.88 | 14.83 | 155.91 | -0.34 | 1.43 | 0.2281 | 1111.0 | 846.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
