SDO HMI 2011-06-21 05:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 109.55 | 655.42 | 57.75 | 345.70 | 17.29 | 168.10 | 12.41 | 323.35 | 0.3437 | -382.9 | -227.5 | |
|
previous
or next observation for the same group /

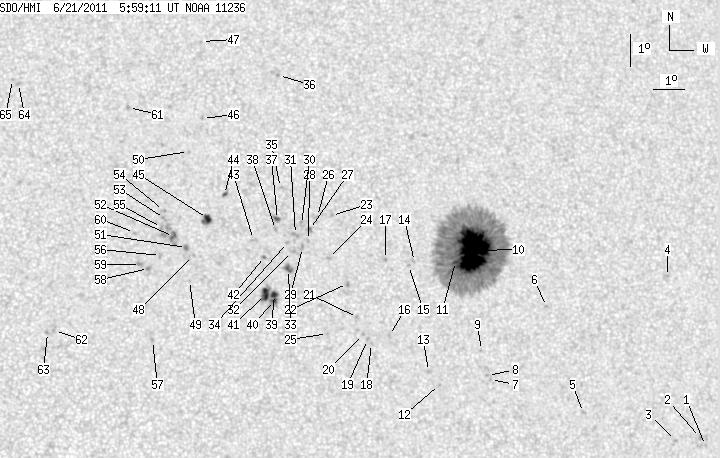

back to the solar disc SDO HMI 2011-06-21 05:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.54 | 11.18 | 176.83 | 21.14 | 295.20 | 0.3926 | -749.0 | -585.2 | |
| 0.00 | 1.63 | 0.00 | 0.88 | 11.43 | 176.69 | 20.99 | 295.93 | 0.3921 | -812.0 | -597.1 | |
| 0.00 | 1.72 | 0.00 | 0.92 | 11.35 | 175.85 | 20.16 | 296.59 | 0.3794 | -874.0 | -589.8 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 16.46 | 176.05 | 20.36 | 307.54 | 0.4225 | -643.0 | -543.1 | |
| 0.00 | 1.63 | 0.00 | 0.86 | 12.24 | 172.89 | 17.19 | 302.49 | 0.3440 | -809.0 | -623.2 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 15.56 | 171.92 | 16.23 | 311.76 | 0.3625 | 700.0 | 479.3 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 13.29 | 169.94 | 14.24 | 310.09 | 0.3143 | -760.0 | -606.0 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 13.42 | 169.85 | 14.15 | 310.57 | 0.3145 | -909.0 | -734.7 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 14.20 | 169.70 | 14.01 | 312.75 | 0.3210 | -862.0 | -670.5 | |
| 84.96 | 500.67 | 45.03 | 265.27 | 17.34 | 169.66 | 13.97 | 319.54 | 0.3566 | -1557.9 | -443.9 | |
| 0.73 | -10.00 | 0.38 | -10.00 | 17.00 | 169.04 | 13.35 | 320.12 | 0.3459 | -1263.8 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 13.15 | 168.29 | 12.59 | 313.13 | 0.2922 | -819.0 | -647.2 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 13.55 | 167.96 | 12.26 | 314.90 | 0.2928 | -764.0 | -560.4 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 17.00 | 167.71 | 12.01 | 323.02 | 0.3323 | -855.0 | -661.4 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 16.88 | 167.50 | 11.81 | 323.24 | 0.3286 | -799.0 | -624.2 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 14.68 | 166.76 | 11.07 | 320.45 | 0.2930 | -955.0 | -723.4 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 17.07 | 166.77 | 11.07 | 325.32 | 0.3241 | 797.0 | 611.4 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 14.44 | 166.17 | 10.48 | 321.40 | 0.2836 | -818.0 | -654.2 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 14.56 | 166.05 | 10.36 | 322.00 | 0.2839 | -1030.0 | -774.4 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 14.72 | 165.93 | 10.24 | 322.67 | 0.2848 | -985.0 | -772.5 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 15.25 | 165.76 | 10.07 | 324.26 | 0.2901 | -817.0 | -712.9 | |
| 0.00 | 2.45 | 0.00 | 1.27 | 16.32 | 165.50 | 9.80 | 327.10 | 0.3021 | 855.0 | 721.6 | |
| 0.00 | 1.63 | 0.00 | 0.86 | 18.48 | 165.09 | 9.40 | 331.79 | 0.3291 | 467.0 | 453.7 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 17.11 | 164.92 | 9.23 | 330.03 | 0.3082 | 766.0 | 570.6 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 14.76 | 164.78 | 9.09 | 325.94 | 0.2740 | -859.0 | -698.7 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 18.45 | 164.64 | 8.94 | 332.90 | 0.3251 | 726.0 | 592.9 | |
| 0.00 | 2.72 | 0.00 | 1.42 | 18.03 | 164.36 | 8.66 | 333.02 | 0.3170 | 780.0 | 646.3 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 17.69 | 164.31 | 8.61 | 332.62 | 0.3115 | 837.0 | 621.0 | |
| 0.00 | 2.27 | 0.00 | 1.18 | 17.46 | 164.10 | 8.41 | 332.83 | 0.3067 | 987.0 | 804.0 | |
| 0.00 | 3.36 | 0.00 | 1.75 | 18.19 | 164.10 | 8.41 | 333.92 | 0.3175 | 738.0 | 607.9 | |
| 0.00 | 4.08 | 0.00 | 2.13 | 17.88 | 163.89 | 8.20 | 334.02 | 0.3113 | 941.0 | 707.1 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 17.34 | 163.77 | 8.08 | 333.54 | 0.3024 | 953.0 | 872.3 | |
| 1.54 | 6.35 | 0.80 | 3.29 | 16.77 | 163.62 | 7.93 | 333.08 | 0.2929 | 1134.4 | 861.0 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 17.63 | 163.62 | 7.93 | 334.39 | 0.3056 | 926.0 | 713.6 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 19.38 | 163.48 | 7.79 | 337.17 | 0.3308 | 744.0 | 561.1 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 23.00 | 163.61 | 7.91 | 340.76 | 0.3863 | 811.0 | 708.1 | |
| 2.63 | 3.27 | 1.37 | 1.70 | 18.36 | 163.33 | 7.64 | 336.24 | 0.3145 | 882.8 | 806.1 | |
| 0.00 | 1.91 | 0.00 | 0.99 | 18.04 | 163.25 | 7.56 | 336.02 | 0.3092 | 935.0 | 666.7 | |
| 3.00 | 24.69 | 1.54 | 12.72 | 15.99 | 163.14 | 7.45 | 333.21 | 0.2776 | 1025.6 | 707.6 | |
| 1.72 | -39.00 | 0.89 | -39.00 | 15.80 | 163.13 | 7.44 | 332.91 | 0.2747 | 1018.0 | 999999 | |
| 7.08 | -39.00 | 3.65 | -39.00 | 15.99 | 162.85 | 7.16 | 334.10 | 0.2755 | 1158.9 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 17.18 | 162.87 | 7.17 | 335.92 | 0.2936 | 1004.0 | 823.8 | |
| 0.00 | 2.54 | 0.00 | 1.32 | 17.72 | 162.53 | 6.84 | 337.66 | 0.2997 | 691.0 | 567.1 | |
| 1.63 | 3.09 | 0.85 | 1.61 | 19.16 | 161.65 | 5.96 | 341.90 | 0.3169 | 768.4 | 551.3 | |
| 3.99 | 7.72 | 2.07 | 4.01 | 18.40 | 161.07 | 5.38 | 342.78 | 0.3019 | 1003.8 | 919.8 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 21.61 | 161.02 | 5.33 | 345.77 | 0.3526 | 638.0 | 489.9 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 24.12 | 161.09 | 5.39 | 347.32 | 0.3925 | 722.0 | 529.7 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 17.22 | 160.59 | 4.90 | 343.05 | 0.2808 | 871.0 | 667.9 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 16.43 | 160.44 | 4.75 | 342.65 | 0.2674 | 947.0 | 686.2 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 20.54 | 160.52 | 4.83 | 346.27 | 0.3337 | 748.0 | 621.4 | |
| 0.00 | 3.54 | 0.00 | 1.83 | 17.48 | 160.37 | 4.68 | 344.02 | 0.2839 | 919.0 | 793.6 | |
| 2.27 | 19.24 | 1.17 | 9.95 | 17.83 | 159.96 | 4.27 | 345.67 | 0.2877 | 1044.6 | 788.0 | |
| 0.00 | 2.45 | 0.00 | 1.27 | 18.40 | 159.69 | 3.99 | 347.03 | 0.2959 | 884.0 | 729.0 | |
| 0.00 | 2.18 | 0.00 | 1.13 | 18.65 | 159.66 | 3.97 | 347.32 | 0.3000 | 728.0 | 625.0 | |
| 0.00 | 2.36 | 0.00 | 1.22 | 18.11 | 159.59 | 3.89 | 347.13 | 0.2909 | 789.0 | 655.2 | |
| 0.00 | 2.45 | 0.00 | 1.26 | 17.23 | 159.53 | 3.84 | 346.55 | 0.2762 | 859.0 | 703.2 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 14.55 | 159.23 | 3.54 | 344.96 | 0.2312 | 918.0 | 661.1 | |
| 0.00 | 2.63 | 0.00 | 1.35 | 16.82 | 159.14 | 3.45 | 347.53 | 0.2680 | 1091.0 | 849.3 | |
| 0.00 | 2.09 | 0.00 | 1.07 | 16.94 | 158.89 | 3.20 | 348.52 | 0.2692 | 916.0 | 740.6 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 17.96 | 158.72 | 3.02 | 349.83 | 0.2854 | 655.0 | 505.1 | |
| 0.00 | 1.91 | 0.00 | 1.01 | 21.97 | 158.60 | 2.90 | 352.27 | 0.3508 | 934.0 | 629.2 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 14.87 | 156.15 | 0.45 | 358.08 | 0.2287 | 813.0 | 753.0 | |
| 0.00 | 1.91 | 0.00 | 0.97 | 14.81 | 155.92 | 0.23 | 359.01 | 0.2275 | 1080.0 | 770.7 | |
| 0.00 | 1.82 | 0.00 | 0.96 | 22.75 | 154.98 | -0.72 | 1.84 | 0.3607 | 831.0 | 660.2 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 22.88 | 154.78 | -0.91 | 2.33 | 0.3629 | 681.0 | 500.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
