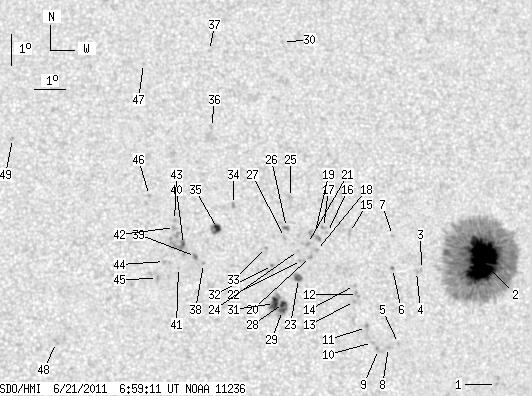

SDO HMI 2011-06-21 06:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 109.54 | 650.92 | 57.88 | 344.04 | 17.35 | 168.16 | 13.01 | 322.06 | 0.3495 | -397.0 | -230.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-21 06:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.57 | 13.42 | 169.85 | 14.70 | 309.53 | 0.3214 | -872.0 | -692.6 | |
| 86.41 | 511.39 | 45.90 | 271.52 | 17.34 | 169.64 | 14.49 | 318.51 | 0.3621 | -1559.9 | -438.6 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 17.04 | 167.65 | 12.50 | 321.99 | 0.3375 | -839.0 | -682.5 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 16.98 | 167.48 | 12.33 | 322.24 | 0.3350 | -696.0 | -654.4 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 14.72 | 166.76 | 11.61 | 319.18 | 0.2992 | -849.0 | -598.6 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 17.07 | 166.70 | 11.56 | 324.18 | 0.3286 | 842.0 | 696.1 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 18.12 | 166.77 | 11.63 | 325.90 | 0.3431 | 584.0 | 390.8 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 14.59 | 166.43 | 11.29 | 319.70 | 0.2941 | -907.0 | -741.6 | |
| 0.00 | 2.18 | 0.00 | 1.13 | 14.53 | 166.11 | 10.96 | 320.37 | 0.2898 | -879.0 | -796.0 | |
| 0.00 | 1.82 | 0.00 | 0.94 | 14.75 | 165.93 | 10.78 | 321.32 | 0.2907 | -884.0 | -637.9 | |
| 0.00 | 3.09 | 0.00 | 1.60 | 15.22 | 165.76 | 10.61 | 322.78 | 0.2951 | -788.0 | -664.2 | |
| 0.00 | 3.27 | 0.00 | 1.70 | 16.26 | 165.52 | 10.38 | 325.49 | 0.3065 | 675.0 | 665.4 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 16.04 | 165.41 | 10.27 | 325.34 | 0.3025 | 807.0 | 591.6 | |
| 0.00 | 1.63 | 0.00 | 0.85 | 16.54 | 165.44 | 10.29 | 326.24 | 0.3096 | 739.0 | 526.4 | |
| 0.00 | 3.45 | 0.00 | 1.81 | 18.22 | 165.37 | 10.23 | 329.34 | 0.3321 | 600.0 | 483.1 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 18.23 | 164.66 | 9.51 | 331.11 | 0.3263 | 600.0 | 491.6 | |
| 0.00 | 1.91 | 0.00 | 1.00 | 18.39 | 164.54 | 9.39 | 331.66 | 0.3276 | 830.0 | 587.6 | |
| 0.00 | 1.82 | 0.00 | 0.95 | 17.66 | 164.27 | 9.12 | 331.20 | 0.3151 | 765.0 | 628.5 | |
| 0.00 | 7.26 | 0.00 | 3.80 | 18.13 | 164.23 | 9.08 | 332.06 | 0.3216 | 584.0 | 639.5 | |
| 0.00 | 2.54 | 0.00 | 1.32 | 17.47 | 164.07 | 8.92 | 331.43 | 0.3107 | 934.0 | 827.7 | |
| 0.00 | 1.72 | 0.00 | 0.90 | 17.88 | 163.99 | 8.84 | 332.29 | 0.3161 | 852.0 | 784.3 | |
| 0.00 | 2.00 | 0.00 | 1.04 | 17.34 | 163.77 | 8.62 | 332.03 | 0.3065 | 960.0 | 834.1 | |
| 4.72 | 5.72 | 2.45 | 2.97 | 16.77 | 163.65 | 8.50 | 331.44 | 0.2973 | 927.9 | 927.6 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 17.66 | 163.69 | 8.54 | 332.76 | 0.3105 | 916.0 | 700.8 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 19.35 | 163.51 | 8.37 | 335.63 | 0.3342 | 833.0 | 589.7 | |
| 1.63 | 3.00 | 0.85 | 1.56 | 18.39 | 163.33 | 8.19 | 334.79 | 0.3187 | 925.9 | 740.6 | |
| 0.00 | 1.72 | 0.00 | 0.90 | 18.07 | 163.26 | 8.11 | 334.55 | 0.3134 | 1038.0 | 733.9 | |
| 2.90 | 25.96 | 1.50 | 13.39 | 15.99 | 163.13 | 7.99 | 331.57 | 0.2818 | 992.8 | 753.5 | |
| 1.27 | -28.00 | 0.66 | -28.00 | 15.77 | 163.09 | 7.95 | 331.30 | 0.2782 | 1112.9 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.49 | 24.38 | 163.55 | 8.40 | 340.96 | 0.4096 | 609.0 | 410.4 | |
| 7.35 | -28.00 | 3.79 | -28.00 | 15.99 | 162.84 | 7.70 | 332.44 | 0.2795 | 1160.2 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 17.19 | 162.83 | 7.68 | 334.43 | 0.2972 | 1015.0 | 791.5 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 17.76 | 162.66 | 7.51 | 335.75 | 0.3046 | 769.0 | 602.6 | |
| 0.00 | 2.27 | 0.00 | 1.19 | 19.13 | 161.65 | 6.50 | 340.33 | 0.3193 | 945.0 | 770.6 | |
| 4.08 | 8.08 | 2.12 | 4.20 | 18.37 | 161.10 | 5.96 | 341.04 | 0.3044 | 975.4 | 895.8 | |
| 0.00 | 1.91 | 0.00 | 1.01 | 21.61 | 161.03 | 5.88 | 344.36 | 0.3549 | 689.0 | 539.2 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 24.13 | 161.07 | 5.93 | 346.12 | 0.3944 | 750.0 | 505.5 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 17.26 | 160.62 | 5.47 | 341.24 | 0.2843 | 857.0 | 704.7 | |
| 0.00 | 2.45 | 0.00 | 1.27 | 17.48 | 160.37 | 5.22 | 342.29 | 0.2865 | 950.0 | 817.7 | |
| 1.18 | 21.69 | 0.61 | 11.23 | 17.86 | 159.99 | 4.85 | 343.87 | 0.2907 | 986.4 | 785.9 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 17.13 | 159.81 | 4.67 | 343.70 | 0.2782 | 794.0 | 612.8 | |
| 0.00 | 2.72 | 0.00 | 1.41 | 18.40 | 159.72 | 4.57 | 345.25 | 0.2982 | 871.0 | 715.9 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 18.63 | 159.72 | 4.58 | 345.43 | 0.3018 | 936.0 | 674.2 | |
| 0.00 | 1.82 | 0.00 | 0.94 | 17.32 | 159.37 | 4.22 | 345.36 | 0.2793 | 805.0 | 633.5 | |
| 0.00 | 1.82 | 0.00 | 0.93 | 16.79 | 159.13 | 3.99 | 345.64 | 0.2696 | 1060.0 | 870.5 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 19.43 | 158.94 | 3.79 | 348.42 | 0.3118 | 782.0 | 638.6 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 23.70 | 158.85 | 3.70 | 351.02 | 0.3806 | 698.0 | 466.9 | |
| 0.00 | 2.00 | 0.00 | 1.02 | 14.78 | 155.91 | 0.76 | 356.74 | 0.2273 | 881.0 | 697.1 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 21.26 | 154.50 | -0.65 | 1.80 | 0.3361 | 740.0 | 589.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
