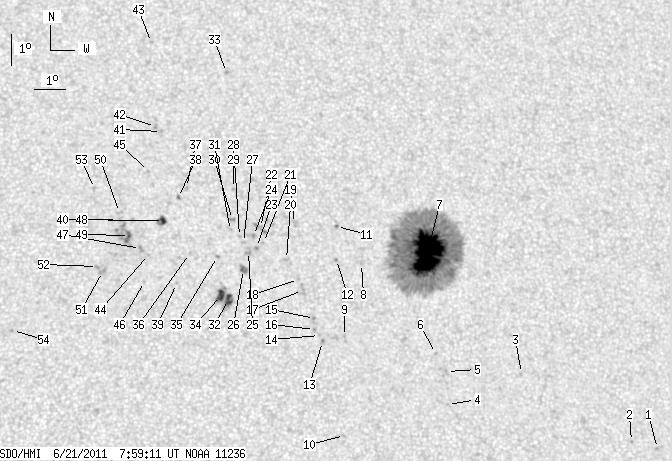

SDO HMI 2011-06-21 07:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 104.03 | 635.85 | 55.15 | 336.80 | 17.28 | 168.17 | 13.57 | 320.79 | 0.3543 | -444.2 | -209.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-21 07:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.59 | 11.12 | 176.77 | 22.17 | 294.07 | 0.4072 | -854.0 | -702.2 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 11.35 | 175.92 | 21.32 | 295.38 | 0.3962 | -851.0 | -696.1 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 13.49 | 172.44 | 17.84 | 304.56 | 0.3633 | -651.0 | -522.4 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 12.55 | 169.96 | 15.36 | 306.13 | 0.3215 | -750.0 | -558.8 | |
| 0.00 | 2.18 | 0.00 | 1.14 | 13.57 | 169.99 | 15.39 | 308.64 | 0.3318 | -662.0 | -580.8 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 14.14 | 169.67 | 15.07 | 310.56 | 0.3334 | -942.0 | -668.2 | |
| 87.96 | 491.70 | 46.84 | 261.74 | 17.31 | 169.65 | 15.05 | 317.39 | 0.3678 | -1571.9 | -444.3 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 16.98 | 167.46 | 12.86 | 321.09 | 0.3404 | -899.0 | -701.3 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 14.69 | 166.76 | 12.16 | 317.82 | 0.3048 | -857.0 | -650.2 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 11.61 | 166.61 | 12.01 | 310.21 | 0.2680 | -685.0 | -550.4 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 18.15 | 166.72 | 12.12 | 324.85 | 0.3481 | 739.0 | 614.0 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 17.11 | 166.65 | 12.05 | 323.11 | 0.3339 | 840.0 | 713.3 | |
| 0.00 | 1.63 | 0.00 | 0.85 | 14.53 | 166.04 | 11.45 | 319.16 | 0.2950 | -958.0 | -741.4 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 14.72 | 165.96 | 11.36 | 319.80 | 0.2964 | -883.0 | -675.9 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 15.26 | 165.83 | 11.23 | 321.30 | 0.3018 | -902.0 | -721.8 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 14.91 | 165.81 | 11.21 | 320.59 | 0.2972 | -965.0 | -776.3 | |
| 0.00 | 6.81 | 0.00 | 3.55 | 16.14 | 165.49 | 10.89 | 323.96 | 0.3097 | 602.0 | 576.3 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 16.48 | 165.38 | 10.78 | 324.90 | 0.3133 | 681.0 | 509.9 | |
| 0.00 | 2.27 | 0.00 | 1.19 | 18.26 | 165.35 | 10.76 | 328.12 | 0.3371 | 608.0 | 496.5 | |
| 0.00 | 2.63 | 0.00 | 1.38 | 17.12 | 165.03 | 10.43 | 326.95 | 0.3185 | 814.0 | 708.1 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 17.66 | 164.31 | 9.71 | 329.68 | 0.3198 | 882.0 | 647.9 | |
| 0.00 | 7.08 | 0.00 | 3.71 | 18.13 | 164.24 | 9.64 | 330.64 | 0.3260 | 679.0 | 628.8 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 17.50 | 164.07 | 9.48 | 330.02 | 0.3156 | 1016.0 | 900.4 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 17.88 | 164.00 | 9.40 | 330.85 | 0.3204 | 957.0 | 812.1 | |
| 0.00 | 4.54 | 0.00 | 2.37 | 17.38 | 163.81 | 9.21 | 330.51 | 0.3117 | 687.0 | 750.1 | |
| 0.00 | 5.90 | 0.00 | 3.07 | 16.81 | 163.62 | 9.02 | 330.05 | 0.3020 | 1159.0 | 894.2 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 17.66 | 163.66 | 9.06 | 331.36 | 0.3146 | 856.0 | 665.1 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 17.85 | 163.54 | 8.94 | 331.98 | 0.3164 | 868.0 | 685.9 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 19.38 | 163.43 | 8.83 | 334.50 | 0.3378 | 671.0 | 580.9 | |
| 0.00 | 2.45 | 0.00 | 1.28 | 18.39 | 163.34 | 8.74 | 333.32 | 0.3227 | 1053.0 | 778.0 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 18.04 | 163.26 | 8.66 | 333.02 | 0.3170 | 687.0 | 719.1 | |
| 5.45 | 23.51 | 2.81 | 12.14 | 15.87 | 163.09 | 8.50 | 329.84 | 0.2841 | 1069.2 | 728.5 | |
| 0.00 | 1.72 | 0.00 | 0.93 | 23.14 | 163.42 | 8.83 | 338.88 | 0.3933 | 845.0 | 708.3 | |
| 6.72 | -32.00 | 3.47 | -32.00 | 15.99 | 162.84 | 8.25 | 330.80 | 0.2838 | 1183.0 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.90 | 17.22 | 162.80 | 8.20 | 333.00 | 0.3015 | 911.0 | 665.7 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 17.32 | 161.90 | 7.31 | 335.71 | 0.2964 | 621.0 | 358.5 | |
| 0.00 | 0.73 | 0.00 | 0.38 | 19.42 | 161.90 | 7.30 | 338.50 | 0.3283 | 727.0 | 611.0 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 19.10 | 161.62 | 7.02 | 338.86 | 0.3218 | 919.0 | 755.1 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 16.38 | 161.45 | 6.85 | 335.66 | 0.2790 | 827.0 | 654.4 | |
| 2.63 | 7.08 | 1.37 | 3.68 | 18.37 | 161.11 | 6.51 | 339.43 | 0.3074 | 985.2 | 882.9 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 21.22 | 161.16 | 6.56 | 342.31 | 0.3520 | 690.0 | 573.8 | |
| 0.00 | 2.36 | 0.00 | 1.25 | 21.39 | 160.97 | 6.37 | 342.94 | 0.3536 | 860.0 | 676.6 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 24.13 | 160.97 | 6.37 | 345.14 | 0.3961 | 688.0 | 538.8 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 17.29 | 160.59 | 5.99 | 339.65 | 0.2876 | 897.0 | 725.6 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 19.94 | 160.68 | 6.08 | 342.33 | 0.3295 | 731.0 | 538.8 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 16.44 | 160.43 | 5.83 | 339.02 | 0.2734 | 783.0 | 587.5 | |
| 0.00 | 2.27 | 0.00 | 1.17 | 17.48 | 160.33 | 5.74 | 340.66 | 0.2892 | 913.0 | 841.4 | |
| 0.00 | 2.00 | 0.00 | 1.04 | 18.37 | 160.14 | 5.54 | 342.27 | 0.3022 | 718.0 | 572.6 | |
| 1.27 | 21.97 | 0.66 | 11.38 | 17.90 | 159.99 | 5.40 | 342.19 | 0.2939 | 932.7 | 819.2 | |
| 0.00 | 2.45 | 0.00 | 1.27 | 18.63 | 159.69 | 5.10 | 343.86 | 0.3041 | 857.0 | 636.3 | |
| 0.00 | 3.99 | 0.00 | 2.06 | 16.76 | 159.10 | 4.50 | 343.85 | 0.2713 | 985.0 | 737.7 | |
| 0.00 | 1.82 | 0.00 | 0.93 | 16.92 | 158.94 | 4.34 | 344.54 | 0.2731 | 803.0 | 737.5 | |
| 0.00 | 2.00 | 0.00 | 1.04 | 19.40 | 158.91 | 4.31 | 346.86 | 0.3131 | 697.0 | 480.0 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 14.91 | 156.22 | 1.62 | 353.18 | 0.2307 | 872.0 | 724.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
