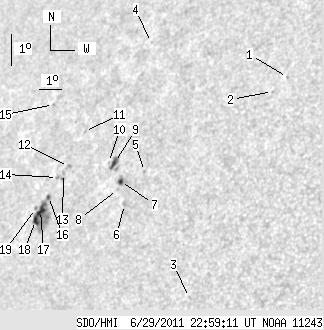

SDO HMI 2011-06-29 22:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.44 | 67.46 | 12.90 | 52.96 | 15.46 | 350.34 | -50.08 | 72.17 | 0.7783 | -30.8 | 274.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-29 22:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.81 | 19.35 | 358.96 | -41.46 | 64.53 | 0.6943 | -509.0 | -491.5 | |
| 0.00 | 0.91 | 0.00 | 0.63 | 18.88 | 358.45 | -41.97 | 65.36 | 0.6984 | -585.0 | -430.4 | |
| 0.00 | 1.27 | 0.00 | 0.88 | 12.35 | 356.55 | -43.86 | 75.07 | 0.7028 | -514.0 | -404.9 | |
| 0.00 | 0.82 | 0.00 | 0.63 | 20.26 | 352.40 | -48.02 | 65.60 | 0.7680 | -539.0 | -455.6 | |
| 0.00 | 0.91 | 0.00 | 0.67 | 16.19 | 353.53 | -46.88 | 70.54 | 0.7457 | -496.0 | -408.2 | |
| 0.00 | 2.36 | 0.00 | 1.76 | 15.13 | 352.92 | -47.50 | 72.08 | 0.7502 | -689.0 | -467.8 | |
| 2.54 | 6.08 | 1.92 | 4.58 | 15.84 | 352.51 | -47.90 | 71.25 | 0.7561 | -720.4 | -297.3 | |
| 0.00 | 0.82 | 0.00 | 0.62 | 15.59 | 352.45 | -47.97 | 71.59 | 0.7563 | -541.0 | -494.9 | |
| 5.36 | 8.17 | 4.09 | 6.23 | 16.43 | 352.04 | -48.38 | 70.60 | 0.7624 | -536.4 | -490.7 | |
| 0.00 | 0.27 | 0.00 | 0.21 | 16.42 | 351.75 | -48.66 | 70.68 | 0.7655 | -216.0 | -147.0 | |
| 0.00 | 0.82 | 0.00 | 0.65 | 17.34 | 350.24 | -50.18 | 69.85 | 0.7831 | -498.0 | -346.7 | |
| 0.00 | 2.45 | 0.00 | 1.95 | 16.22 | 349.85 | -50.57 | 71.35 | 0.7850 | 764.0 | 631.8 | |
| 0.00 | 1.45 | 0.00 | 1.16 | 16.00 | 349.68 | -50.74 | 71.67 | 0.7863 | 833.0 | 597.3 | |
| 0.00 | 1.73 | 0.00 | 1.38 | 15.86 | 349.42 | -50.99 | 71.89 | 0.7887 | 738.0 | 615.7 | |
| 0.00 | 1.18 | 0.00 | 0.98 | 18.13 | 348.33 | -52.08 | 69.29 | 0.8037 | -487.0 | -365.5 | |
| 1.54 | 35.59 | 1.24 | 28.64 | 15.25 | 349.18 | -51.24 | 72.70 | 0.7902 | 689.6 | 606.0 | |
| 4.09 | -16.00 | 3.30 | -16.00 | 14.81 | 348.92 | -51.49 | 73.30 | 0.7921 | 838.2 | 999999 | |
| 2.91 | -16.00 | 2.35 | -16.00 | 14.49 | 348.77 | -51.64 | 73.73 | 0.7931 | 679.7 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.18 | 14.86 | 348.65 | -51.77 | 73.28 | 0.7950 | 270.0 | 178.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
