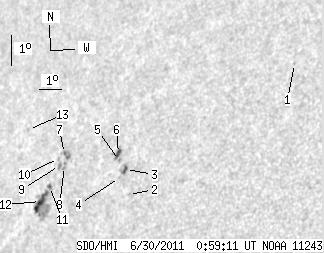

SDO HMI 2011-06-30 00:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.53 | 60.67 | 14.32 | 46.95 | 15.47 | 349.93 | -49.38 | 72.04 | 0.7710 | 199.9 | 370.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-30 00:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.55 | 19.46 | 359.00 | -40.31 | 63.90 | 0.6814 | -413.0 | -410.6 | |
| 0.00 | 0.91 | 0.00 | 0.66 | 15.12 | 352.96 | -46.35 | 71.84 | 0.7373 | -646.0 | -510.9 | |
| 2.82 | 4.81 | 2.08 | 3.56 | 15.90 | 352.60 | -46.71 | 70.90 | 0.7431 | -693.1 | -542.6 | |
| 0.00 | 0.64 | 0.00 | 0.47 | 15.64 | 352.40 | -46.91 | 71.29 | 0.7448 | -513.0 | -411.3 | |
| 0.00 | 1.36 | 0.00 | 1.01 | 16.17 | 352.23 | -47.08 | 70.64 | 0.7477 | -622.0 | -516.9 | |
| 3.45 | 7.27 | 2.57 | 5.42 | 16.39 | 352.12 | -47.19 | 70.38 | 0.7495 | -591.0 | -343.2 | |
| 1.00 | 5.27 | 0.78 | 4.11 | 16.30 | 349.55 | -49.76 | 71.09 | 0.7767 | 708.3 | 725.4 | |
| 0.00 | 2.45 | 0.00 | 1.91 | 15.89 | 349.69 | -49.62 | 71.58 | 0.7745 | 776.0 | 710.5 | |
| 0.00 | 2.54 | 0.00 | 1.99 | 15.91 | 349.43 | -49.88 | 71.60 | 0.7772 | 760.0 | 624.2 | |
| 0.00 | 1.36 | 0.00 | 1.07 | 16.13 | 349.31 | -50.00 | 71.36 | 0.7789 | 499.0 | 413.2 | |
| 1.36 | 32.15 | 1.07 | 25.31 | 15.24 | 349.16 | -50.15 | 72.51 | 0.7788 | 684.0 | 575.2 | |
| 9.90 | -11.00 | 7.82 | -11.00 | 14.76 | 348.87 | -50.44 | 73.18 | 0.7811 | 769.0 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.89 | 16.98 | 347.47 | -51.84 | 70.67 | 0.7991 | 283.0 | 285.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
