SDO HMI 2011-06-30 03:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.34 | 69.03 | 13.04 | 51.53 | 15.73 | 350.26 | -47.40 | 71.28 | 0.7502 | 134.4 | 250.5 | |
|
previous
or next observation for the same group /

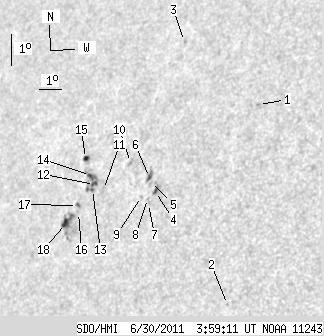

back to the solar disc SDO HMI 2011-06-30 03:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.87 | 18.71 | 356.29 | -41.37 | 65.40 | 0.6907 | 606.0 | 433.0 | |
| 0.00 | 0.82 | 0.00 | 0.54 | 12.44 | 356.52 | -41.14 | 74.34 | 0.6695 | -555.0 | -446.1 | |
| 0.00 | 1.09 | 0.00 | 0.80 | 20.61 | 352.34 | -45.32 | 64.31 | 0.7408 | -620.0 | -514.0 | |
| 2.00 | 5.63 | 1.43 | 4.03 | 15.84 | 352.60 | -45.06 | 70.56 | 0.7244 | -722.0 | -516.3 | |
| 0.00 | 2.54 | 0.00 | 1.83 | 16.12 | 352.30 | -45.36 | 70.28 | 0.7285 | -644.0 | -491.8 | |
| 2.18 | 6.09 | 1.57 | 4.40 | 16.27 | 352.21 | -45.45 | 70.09 | 0.7299 | -608.5 | -462.1 | |
| 0.00 | 0.64 | 0.00 | 0.46 | 15.46 | 352.40 | -45.27 | 71.14 | 0.7258 | -513.0 | -522.4 | |
| 0.00 | 0.27 | 0.00 | 0.20 | 15.61 | 352.31 | -45.35 | 70.95 | 0.7272 | -607.0 | -540.3 | |
| 0.00 | 1.00 | 0.00 | 0.72 | 15.67 | 352.02 | -45.64 | 70.96 | 0.7306 | -498.0 | -368.9 | |
| 0.00 | 3.18 | 0.00 | 2.34 | 16.71 | 351.20 | -46.46 | 69.78 | 0.7422 | -554.0 | -464.6 | |
| 0.00 | 2.45 | 0.00 | 1.83 | 15.83 | 350.21 | -47.45 | 71.19 | 0.7510 | 488.0 | 347.8 | |
| 2.54 | 17.80 | 1.92 | 13.48 | 15.97 | 349.74 | -47.92 | 71.12 | 0.7564 | 810.1 | 644.2 | |
| 1.09 | -12.00 | 0.82 | -12.00 | 15.81 | 349.70 | -47.96 | 71.34 | 0.7565 | 801.4 | 999999 | |
| 1.00 | -12.00 | 0.76 | -12.00 | 16.24 | 349.46 | -48.20 | 70.83 | 0.7600 | 840.9 | 999999 | |
| 2.54 | 3.36 | 1.95 | 2.58 | 16.77 | 349.05 | -48.61 | 70.25 | 0.7655 | 609.2 | 546.2 | |
| 0.00 | 0.45 | 0.00 | 0.34 | 15.07 | 349.26 | -48.40 | 72.39 | 0.7598 | 554.0 | 540.0 | |
| 1.45 | 1.73 | 1.11 | 1.31 | 15.29 | 349.15 | -48.51 | 72.14 | 0.7615 | 698.4 | 687.2 | |
| 4.54 | 20.71 | 3.48 | 15.80 | 14.71 | 348.75 | -48.91 | 72.97 | 0.7647 | 750.7 | 603.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
