SDO HMI 2011-06-30 05:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.71 | 68.32 | 14.51 | 49.90 | 15.92 | 350.42 | -46.14 | 70.70 | 0.7367 | 89.1 | 262.3 | |
|
previous
or next observation for the same group /

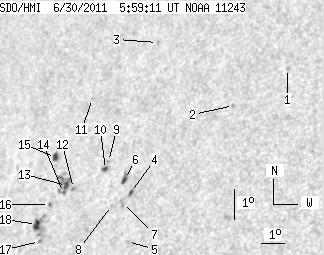

back to the solar disc SDO HMI 2011-06-30 05:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 1.02 | 19.96 | 358.19 | -38.37 | 62.35 | 0.6609 | -696.0 | -548.8 | |
| 0.00 | 1.64 | 0.00 | 1.10 | 18.73 | 356.29 | -40.27 | 64.96 | 0.6780 | 235.0 | 293.7 | |
| 0.00 | 1.27 | 0.00 | 0.92 | 20.62 | 352.33 | -44.23 | 63.91 | 0.7292 | -651.0 | -513.1 | |
| 1.36 | 2.63 | 0.96 | 1.85 | 15.86 | 352.65 | -43.91 | 70.24 | 0.7112 | -711.9 | -607.0 | |
| 0.00 | 1.73 | 0.00 | 1.20 | 14.33 | 352.92 | -43.65 | 72.28 | 0.7043 | -602.0 | -370.7 | |
| 3.36 | 5.54 | 2.38 | 3.92 | 16.26 | 352.27 | -44.29 | 69.80 | 0.7166 | -560.9 | -544.9 | |
| 0.00 | 4.09 | 0.00 | 2.88 | 15.54 | 352.39 | -44.18 | 70.76 | 0.7135 | -750.0 | -524.2 | |
| 0.00 | 0.91 | 0.00 | 0.64 | 15.43 | 351.93 | -44.64 | 71.03 | 0.7185 | -534.0 | -469.6 | |
| 0.00 | 1.18 | 0.00 | 0.85 | 16.80 | 351.40 | -45.17 | 69.32 | 0.7280 | -458.0 | -412.0 | |
| 1.73 | 2.91 | 1.24 | 2.09 | 16.54 | 351.34 | -45.23 | 69.68 | 0.7280 | -530.8 | -460.4 | |
| 0.00 | 1.09 | 0.00 | 0.81 | 18.75 | 350.01 | -46.56 | 67.14 | 0.7484 | -567.0 | -411.4 | |
| 0.00 | 1.82 | 0.00 | 1.33 | 15.90 | 350.06 | -46.50 | 70.88 | 0.7406 | 766.0 | 700.6 | |
| 2.73 | 18.44 | 2.02 | 13.68 | 15.98 | 349.71 | -46.85 | 70.85 | 0.7447 | 905.9 | 623.9 | |
| 1.27 | -13.00 | 0.94 | -13.00 | 15.76 | 349.64 | -46.92 | 71.17 | 0.7450 | 773.6 | 999999 | |
| 3.63 | 4.63 | 2.74 | 3.49 | 16.84 | 348.92 | -47.64 | 69.93 | 0.7553 | 716.1 | 667.7 | |
| 1.00 | 1.64 | 0.75 | 1.22 | 15.36 | 349.11 | -47.46 | 71.81 | 0.7501 | 614.6 | 636.0 | |
| 0.00 | 1.09 | 0.00 | 0.81 | 14.20 | 348.98 | -47.59 | 73.38 | 0.7492 | 717.0 | 675.4 | |
| 4.63 | 16.17 | 3.48 | 12.09 | 14.72 | 348.69 | -47.88 | 72.75 | 0.7534 | 695.2 | 665.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
