SDO HMI 2011-06-30 07:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.81 | 0.00 | 8.17 | 15.64 | 25.28 | -10.19 | 37.21 | 0.2839 | -543.6 | -477.0 | |
|
previous
or next observation for the same group /

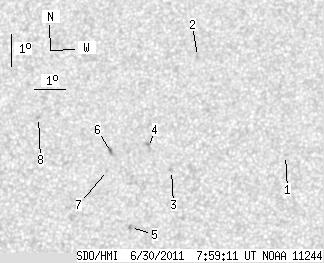

back to the solar disc SDO HMI 2011-06-30 07:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.51 | 15.44 | 29.84 | -5.63 | 23.29 | 0.2403 | -644.0 | -479.4 | |
| 0.00 | 2.00 | 0.00 | 1.04 | 18.54 | 26.89 | -8.58 | 27.43 | 0.3083 | -954.0 | -665.2 | |
| 0.00 | 1.64 | 0.00 | 0.84 | 14.95 | 26.22 | -9.25 | 36.24 | 0.2638 | -624.0 | -570.5 | |
| 0.00 | 3.72 | 0.00 | 1.92 | 15.66 | 25.45 | -10.02 | 36.78 | 0.2810 | -857.0 | -762.0 | |
| 0.00 | 1.91 | 0.00 | 0.98 | 13.17 | 24.99 | -10.48 | 44.29 | 0.2547 | 1111.0 | 876.9 | |
| 0.00 | 2.91 | 0.00 | 1.51 | 15.50 | 24.27 | -11.20 | 40.21 | 0.2912 | -1077.0 | -782.7 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 14.93 | 24.17 | -11.30 | 41.79 | 0.2853 | -577.0 | -449.8 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 16.57 | 21.83 | -13.64 | 43.28 | 0.3311 | -727.0 | -550.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
