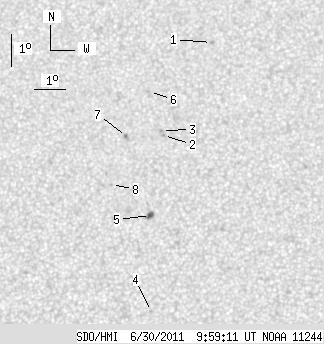

SDO HMI 2011-06-30 09:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.45 | 14.61 | 1.76 | 7.51 | 14.59 | 25.13 | -9.24 | 37.68 | 0.2602 | -310.2 | -434.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-30 09:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.66 | 18.58 | 26.90 | -7.48 | 24.32 | 0.3009 | -967.0 | -801.9 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 15.64 | 25.48 | -8.89 | 33.67 | 0.2697 | -925.0 | -754.2 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 15.80 | 25.41 | -8.97 | 33.55 | 0.2725 | -845.0 | -665.8 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 10.19 | 25.30 | -9.08 | 50.09 | 0.2033 | -833.0 | -660.2 | |
| 3.45 | 4.72 | 1.76 | 2.41 | 13.15 | 25.17 | -9.21 | 40.73 | 0.2398 | 966.8 | 795.4 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 17.02 | 24.96 | -9.41 | 32.34 | 0.2935 | -644.0 | -587.3 | |
| 0.00 | 2.36 | 0.00 | 1.22 | 15.60 | 24.29 | -10.08 | 37.09 | 0.2807 | -995.0 | -842.9 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 14.10 | 23.89 | -10.49 | 41.80 | 0.2660 | 790.0 | 595.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
