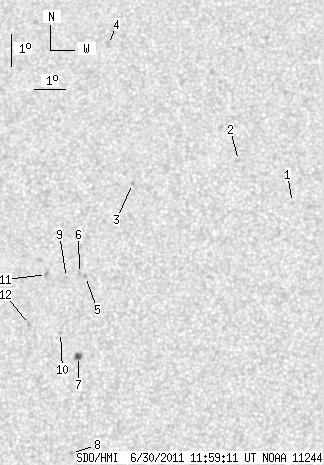

SDO HMI 2011-06-30 11:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.82 | 21.90 | 1.94 | 11.26 | 16.12 | 26.11 | -7.17 | 28.83 | 0.2664 | -404.1 | -418.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-30 11:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.56 | 17.97 | 32.13 | -1.15 | 4.16 | 0.2641 | -692.0 | -492.8 | |
| 0.00 | 1.91 | 0.00 | 0.99 | 19.30 | 30.37 | -2.90 | 9.54 | 0.2898 | -783.0 | -528.0 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 18.55 | 26.97 | -6.31 | 20.93 | 0.2929 | -896.0 | -706.2 | |
| 0.00 | 2.82 | 0.00 | 1.50 | 23.01 | 25.97 | -7.30 | 18.66 | 0.3671 | -332.0 | -298.1 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 15.62 | 25.57 | -7.71 | 30.10 | 0.2587 | -1012.0 | -769.2 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 15.71 | 25.37 | -7.90 | 30.53 | 0.2617 | -903.0 | -689.9 | |
| 3.82 | 4.45 | 1.94 | 2.26 | 13.13 | 25.43 | -7.84 | 36.39 | 0.2250 | 980.4 | 929.0 | |
| 0.00 | 1.73 | 0.00 | 0.87 | 10.14 | 25.30 | -7.98 | 46.70 | 0.1885 | -906.0 | -728.7 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 15.58 | 24.96 | -8.31 | 32.07 | 0.2635 | -772.0 | -613.5 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 13.87 | 24.84 | -8.44 | 36.42 | 0.2410 | -563.0 | -300.2 | |
| 0.00 | 1.64 | 0.00 | 0.84 | 15.67 | 24.32 | -8.96 | 33.80 | 0.2707 | -967.0 | -843.6 | |
| 0.00 | 1.82 | 0.00 | 0.93 | 14.11 | 23.84 | -9.43 | 38.85 | 0.2545 | 695.0 | 498.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
