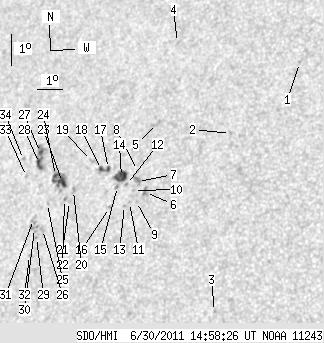

SDO HMI 2011-06-30 14:58:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.52 | 104.14 | 19.97 | 70.22 | 16.11 | 350.46 | -41.16 | 69.00 | 0.6793 | 13.5 | 138.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-30 14:58:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.68 | 20.07 | 358.14 | -33.49 | 59.53 | 0.6035 | -699.0 | -553.9 | |
| 0.00 | 1.36 | 0.00 | 0.86 | 17.75 | 355.98 | -35.64 | 64.30 | 0.6181 | -669.0 | -475.8 | |
| 0.00 | 1.18 | 0.00 | 0.72 | 12.19 | 356.42 | -35.20 | 72.99 | 0.5914 | -616.0 | -495.3 | |
| 0.00 | 0.91 | 0.00 | 0.60 | 20.57 | 353.09 | -38.54 | 61.59 | 0.6655 | -312.0 | -228.6 | |
| 0.00 | 3.63 | 0.00 | 2.38 | 17.98 | 352.99 | -38.64 | 65.36 | 0.6557 | -477.0 | -556.0 | |
| 0.00 | 4.36 | 0.00 | 2.83 | 15.81 | 353.03 | -38.60 | 68.56 | 0.6472 | -788.0 | -593.1 | |
| 0.00 | 4.63 | 0.00 | 3.02 | 16.14 | 352.62 | -39.00 | 68.22 | 0.6533 | -943.0 | -680.1 | |
| 0.00 | 0.91 | 0.00 | 0.59 | 16.48 | 352.54 | -39.09 | 67.74 | 0.6555 | -673.0 | -482.1 | |
| 0.00 | 1.27 | 0.00 | 0.83 | 15.52 | 352.73 | -38.90 | 69.11 | 0.6499 | -649.0 | -486.9 | |
| 0.00 | 1.27 | 0.00 | 0.83 | 15.85 | 352.52 | -39.10 | 68.68 | 0.6535 | -689.0 | -575.1 | |
| 0.00 | 1.18 | 0.00 | 0.77 | 15.48 | 352.45 | -39.18 | 69.27 | 0.6532 | -748.0 | -548.8 | |
| 0.00 | 1.27 | 0.00 | 0.83 | 16.03 | 352.20 | -39.43 | 68.54 | 0.6582 | -667.0 | -540.5 | |
| 0.00 | 1.18 | 0.00 | 0.77 | 15.38 | 352.27 | -39.36 | 69.49 | 0.6552 | -537.0 | -485.6 | |
| 10.17 | 11.62 | 6.71 | 7.67 | 16.28 | 351.93 | -39.69 | 68.28 | 0.6622 | -659.2 | -361.6 | |
| 0.00 | 2.09 | 0.00 | 1.38 | 15.96 | 351.84 | -39.78 | 68.78 | 0.6623 | -452.0 | -352.6 | |
| 0.00 | 1.18 | 0.00 | 0.78 | 15.30 | 351.67 | -39.96 | 69.82 | 0.6623 | -530.0 | -425.2 | |
| 2.00 | 6.54 | 1.33 | 4.36 | 16.51 | 351.33 | -40.29 | 68.16 | 0.6703 | -332.9 | -171.9 | |
| 2.00 | -17.00 | 1.34 | -17.00 | 16.47 | 351.05 | -40.58 | 68.32 | 0.6735 | -335.9 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.10 | 16.74 | 350.56 | -41.07 | 68.11 | 0.6803 | -418.0 | -271.4 | |
| 0.00 | 2.63 | 0.00 | 1.78 | 15.78 | 350.04 | -41.58 | 69.66 | 0.6835 | 706.0 | 694.7 | |
| 0.00 | 1.09 | 0.00 | 0.74 | 15.43 | 349.96 | -41.67 | 70.18 | 0.6835 | 709.0 | 602.8 | |
| 0.00 | 0.91 | 0.00 | 0.62 | 15.49 | 349.73 | -41.89 | 70.17 | 0.6863 | 808.0 | 758.3 | |
| 5.81 | 17.89 | 3.97 | 12.25 | 16.01 | 349.51 | -42.11 | 69.49 | 0.6905 | 826.5 | 608.8 | |
| 2.27 | -23.00 | 1.56 | -23.00 | 16.22 | 349.16 | -42.47 | 69.31 | 0.6953 | 696.4 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.69 | 15.34 | 349.04 | -42.59 | 70.59 | 0.6942 | 812.0 | 505.5 | |
| 0.00 | 2.45 | 0.00 | 1.68 | 14.53 | 349.03 | -42.60 | 71.75 | 0.6922 | 725.0 | 611.0 | |
| 1.91 | 17.98 | 1.33 | 12.54 | 16.92 | 348.31 | -43.32 | 68.61 | 0.7072 | 856.1 | 670.5 | |
| 5.36 | -27.00 | 3.73 | -27.00 | 16.58 | 348.36 | -43.26 | 69.07 | 0.7056 | 794.4 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.69 | 14.27 | 348.83 | -42.80 | 72.17 | 0.6939 | 646.0 | 564.7 | |
| 0.00 | 4.63 | 0.00 | 3.19 | 14.55 | 348.68 | -42.95 | 71.82 | 0.6965 | 684.0 | 587.5 | |
| 0.00 | 3.54 | 0.00 | 2.44 | 14.82 | 348.57 | -43.06 | 71.46 | 0.6985 | 480.0 | 484.3 | |
| 0.00 | 1.18 | 0.00 | 0.81 | 13.70 | 348.66 | -42.97 | 73.02 | 0.6946 | 684.0 | 589.3 | |
| 0.00 | 1.27 | 0.00 | 0.89 | 16.15 | 347.91 | -43.72 | 69.80 | 0.7096 | 539.0 | 516.3 | |
| 0.00 | 1.27 | 0.00 | 0.90 | 16.68 | 347.63 | -44.00 | 69.16 | 0.7143 | 556.0 | 501.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
