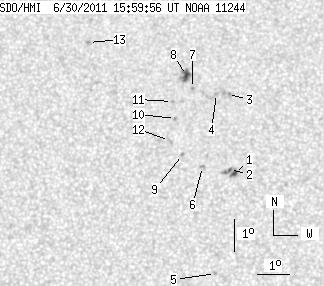

SDO HMI 2011-06-30 15:59:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.99 | 37.59 | 4.07 | 19.14 | 14.64 | 24.69 | -6.37 | 27.60 | 0.2336 | -203.0 | -36.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-30 15:59:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.00 | 9.72 | 1.01 | 4.91 | 13.12 | 25.84 | -5.22 | 26.25 | 0.2013 | 1130.2 | 822.9 | |
| 1.09 | -1.00 | 0.55 | -1.00 | 13.24 | 25.68 | -5.38 | 26.66 | 0.2044 | 792.9 | 999999 | |
| 0.00 | 4.45 | 0.00 | 2.27 | 15.57 | 25.56 | -5.50 | 22.61 | 0.2413 | -525.0 | -577.6 | |
| 0.00 | 1.73 | 0.00 | 0.88 | 15.60 | 25.20 | -5.85 | 23.84 | 0.2441 | -778.0 | -571.8 | |
| 0.00 | 1.63 | 0.00 | 0.82 | 10.03 | 25.30 | -5.75 | 37.96 | 0.1612 | -1017.0 | -777.4 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 13.33 | 24.82 | -6.23 | 29.94 | 0.2127 | 694.0 | 485.9 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 15.76 | 24.44 | -6.62 | 26.26 | 0.2519 | -1029.0 | -873.1 | |
| 4.90 | 8.63 | 2.51 | 4.42 | 16.16 | 24.23 | -6.83 | 26.22 | 0.2596 | -991.7 | -810.6 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 13.70 | 24.18 | -6.87 | 31.49 | 0.2236 | 779.0 | 597.5 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 14.82 | 23.93 | -7.13 | 29.87 | 0.2421 | -872.0 | -636.1 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 15.35 | 23.81 | -7.24 | 29.15 | 0.2508 | -939.0 | -687.9 | |
| 0.00 | 2.36 | 0.00 | 1.20 | 14.13 | 23.76 | -7.30 | 31.99 | 0.2336 | 725.0 | 544.4 | |
| 0.00 | 1.91 | 0.00 | 0.99 | 17.18 | 21.03 | -10.02 | 33.69 | 0.3011 | 1017.0 | 652.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
