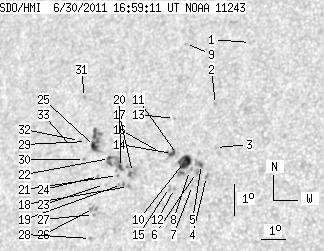

SDO HMI 2011-06-30 16:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.15 | 117.32 | 15.90 | 78.07 | 16.17 | 350.15 | -40.36 | 68.66 | 0.6699 | -39.2 | 301.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-30 16:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.53 | 20.05 | 353.77 | -36.74 | 61.43 | 0.6421 | -523.0 | -478.1 | |
| 0.00 | 1.27 | 0.00 | 0.82 | 18.05 | 352.88 | -37.63 | 64.81 | 0.6438 | -866.0 | -699.5 | |
| 0.00 | 1.45 | 0.00 | 0.93 | 16.70 | 353.20 | -37.31 | 66.69 | 0.6343 | -612.0 | -488.6 | |
| 0.00 | 2.00 | 0.00 | 1.27 | 15.78 | 353.05 | -37.46 | 68.15 | 0.6328 | -841.0 | -678.0 | |
| 1.54 | 4.45 | 0.99 | 2.86 | 16.15 | 352.77 | -37.74 | 67.70 | 0.6377 | -802.9 | -771.2 | |
| 0.00 | 2.63 | 0.00 | 1.69 | 15.90 | 352.62 | -37.89 | 68.15 | 0.6386 | -780.0 | -680.7 | |
| 0.00 | 0.45 | 0.00 | 0.29 | 15.49 | 352.55 | -37.96 | 68.80 | 0.6380 | -577.0 | -590.8 | |
| 0.00 | 2.27 | 0.00 | 1.46 | 15.95 | 352.33 | -38.18 | 68.18 | 0.6425 | -654.0 | -555.2 | |
| 0.00 | 1.18 | 0.00 | 0.79 | 19.95 | 351.12 | -39.39 | 62.88 | 0.6725 | -563.0 | -361.0 | |
| 12.17 | 16.98 | 7.88 | 11.00 | 16.23 | 352.06 | -38.45 | 67.88 | 0.6467 | -664.5 | -409.3 | |
| 0.00 | 1.18 | 0.00 | 0.77 | 16.44 | 351.73 | -38.78 | 67.70 | 0.6516 | -371.0 | -345.9 | |
| 0.00 | 1.09 | 0.00 | 0.71 | 15.37 | 351.85 | -38.66 | 69.24 | 0.6464 | -584.0 | -516.2 | |
| 0.00 | 0.91 | 0.00 | 0.60 | 17.56 | 351.32 | -39.19 | 66.21 | 0.6606 | -512.0 | -423.6 | |
| 2.72 | 5.81 | 1.78 | 3.80 | 16.46 | 351.52 | -38.99 | 67.74 | 0.6543 | -538.6 | -286.4 | |
| 0.00 | 1.82 | 0.00 | 1.18 | 15.40 | 351.64 | -38.87 | 69.28 | 0.6491 | -374.0 | -333.4 | |
| 0.00 | 1.00 | 0.00 | 0.66 | 16.48 | 351.02 | -39.49 | 67.91 | 0.6604 | -329.0 | -224.0 | |
| 0.00 | 9.17 | 0.00 | 6.11 | 15.82 | 350.02 | -40.49 | 69.24 | 0.6704 | 829.0 | 638.7 | |
| 0.00 | 2.18 | 0.00 | 1.45 | 15.38 | 349.96 | -40.55 | 69.90 | 0.6698 | 829.0 | 678.5 | |
| 0.00 | 3.00 | 0.00 | 2.00 | 15.43 | 349.65 | -40.86 | 69.92 | 0.6737 | 727.0 | 652.7 | |
| 2.36 | 25.79 | 1.59 | 17.32 | 15.96 | 349.48 | -41.03 | 69.22 | 0.6774 | 855.7 | 644.9 | |
| 0.00 | 0.91 | 0.00 | 0.61 | 15.71 | 349.41 | -41.09 | 69.60 | 0.6774 | 787.0 | 633.9 | |
| 1.82 | -20.00 | 1.23 | -20.00 | 16.23 | 348.94 | -41.57 | 69.02 | 0.6846 | 623.0 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.31 | 15.41 | 348.94 | -41.57 | 70.19 | 0.6822 | 508.0 | 522.6 | |
| 0.00 | 1.54 | 0.00 | 1.05 | 15.65 | 348.62 | -41.89 | 69.94 | 0.6867 | 331.0 | 395.5 | |
| 3.54 | 17.43 | 2.43 | 11.97 | 16.58 | 348.21 | -42.30 | 68.76 | 0.6944 | 869.5 | 758.4 | |
| 0.00 | 4.18 | 0.00 | 2.83 | 14.65 | 348.65 | -41.85 | 71.36 | 0.6836 | 645.0 | 631.4 | |
| 0.00 | 0.91 | 0.00 | 0.61 | 14.46 | 348.70 | -41.81 | 71.62 | 0.6825 | 748.0 | 655.2 | |
| 0.00 | 1.27 | 0.00 | 0.86 | 13.72 | 348.74 | -41.77 | 72.69 | 0.6801 | 681.0 | 560.6 | |
| 0.00 | 1.27 | 0.00 | 0.88 | 16.73 | 347.82 | -42.69 | 68.68 | 0.6993 | 335.0 | 347.2 | |
| 0.00 | 1.18 | 0.00 | 0.81 | 16.16 | 347.89 | -42.62 | 69.45 | 0.6969 | 681.0 | 547.2 | |
| 0.00 | 1.18 | 0.00 | 0.83 | 18.11 | 347.33 | -43.18 | 66.94 | 0.7092 | 673.0 | 563.5 | |
| 0.00 | 0.64 | 0.00 | 0.44 | 16.75 | 347.51 | -43.00 | 68.75 | 0.7030 | 405.0 | 379.6 | |
| 0.00 | 0.91 | 0.00 | 0.63 | 16.55 | 347.22 | -43.29 | 69.12 | 0.7058 | 474.0 | 387.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
