SDO HMI 2011-06-30 17:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.15 | 51.76 | 7.18 | 26.31 | 14.82 | 24.71 | -5.24 | 22.83 | 0.2279 | -179.3 | -302.0 | |
|
previous
or next observation for the same group /

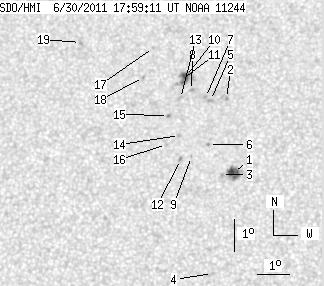

back to the solar disc SDO HMI 2011-06-30 17:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.62 | 13.89 | 4.86 | 7.01 | 13.22 | 25.92 | -4.03 | 20.68 | 0.1947 | 1001.8 | 823.0 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 15.52 | 25.66 | -4.29 | 18.11 | 0.2332 | -995.0 | -772.2 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 13.16 | 25.55 | -4.41 | 22.54 | 0.1960 | 312.0 | 333.5 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 10.10 | 25.32 | -4.64 | 31.96 | 0.1511 | -844.0 | -577.8 | |
| 0.00 | 2.54 | 0.00 | 1.30 | 15.46 | 25.15 | -4.80 | 20.17 | 0.2350 | -1021.0 | -761.7 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 14.08 | 25.12 | -4.83 | 22.61 | 0.2135 | -1004.0 | -742.2 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 15.55 | 24.99 | -4.96 | 20.64 | 0.2374 | -903.0 | -773.1 | |
| 0.00 | 1.91 | 0.00 | 0.97 | 15.77 | 24.54 | -5.41 | 21.98 | 0.2436 | -1031.0 | -815.4 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 13.71 | 24.59 | -5.36 | 25.56 | 0.2113 | -781.0 | -633.9 | |
| 3.99 | 14.53 | 2.04 | 7.43 | 16.20 | 24.34 | -5.61 | 22.02 | 0.2517 | -978.2 | -782.4 | |
| 0.54 | -10.00 | 0.28 | -10.00 | 16.08 | 24.18 | -5.77 | 22.76 | 0.2508 | -846.5 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.87 | 13.62 | 24.25 | -5.70 | 27.17 | 0.2125 | 951.0 | 708.9 | |
| 0.00 | 2.18 | 0.00 | 1.11 | 15.51 | 24.20 | -5.75 | 23.65 | 0.2419 | -881.0 | -669.7 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 14.36 | 24.20 | -5.75 | 25.80 | 0.2242 | -715.0 | -450.4 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 14.98 | 23.83 | -6.12 | 25.95 | 0.2364 | -1050.0 | -905.4 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 14.08 | 23.80 | -6.16 | 27.94 | 0.2231 | 881.0 | 622.1 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 17.11 | 23.29 | -6.67 | 24.13 | 0.2727 | -817.0 | -612.0 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 16.16 | 23.00 | -6.95 | 26.64 | 0.2605 | 857.0 | 636.6 | |
| 0.00 | 1.73 | 0.00 | 0.89 | 17.25 | 20.93 | -9.02 | 30.88 | 0.2931 | 916.0 | 710.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
