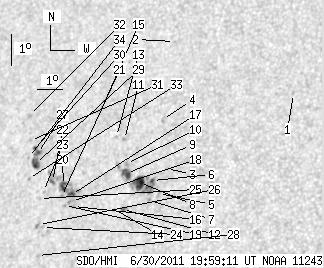

SDO HMI 2011-06-30 19:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.94 | 122.55 | 25.88 | 79.31 | 16.22 | 350.49 | -38.35 | 67.83 | 0.6453 | 70.9 | 90.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-30 19:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.71 | 19.09 | 357.70 | -31.15 | 59.55 | 0.5691 | -654.0 | -536.7 | |
| 0.00 | 0.73 | 0.00 | 0.47 | 20.63 | 352.68 | -36.16 | 60.29 | 0.6380 | -665.0 | -577.6 | |
| 0.00 | 1.27 | 0.00 | 0.79 | 16.61 | 353.35 | -35.50 | 66.02 | 0.6112 | -740.0 | -553.4 | |
| 0.00 | 1.36 | 0.00 | 0.86 | 18.14 | 352.84 | -36.00 | 63.91 | 0.6242 | -765.0 | -644.5 | |
| 0.00 | 2.00 | 0.00 | 1.25 | 15.82 | 353.20 | -35.64 | 67.33 | 0.6098 | -866.0 | -612.1 | |
| 1.63 | 30.51 | 1.02 | 19.21 | 16.21 | 352.88 | -35.96 | 66.85 | 0.6155 | -890.7 | -659.6 | |
| 0.00 | 1.54 | 0.00 | 0.97 | 15.59 | 352.89 | -35.95 | 67.83 | 0.6128 | -739.0 | -613.5 | |
| 11.17 | -6.00 | 7.05 | -6.00 | 16.14 | 352.39 | -36.46 | 67.19 | 0.6214 | -740.8 | 999999 | |
| 6.81 | 11.35 | 4.33 | 7.23 | 16.41 | 351.81 | -37.03 | 67.04 | 0.6297 | -666.5 | -298.6 | |
| 0.00 | 2.27 | 0.00 | 1.45 | 16.72 | 351.74 | -37.10 | 66.59 | 0.6318 | -495.0 | -317.8 | |
| 0.00 | 1.36 | 0.00 | 0.87 | 17.47 | 351.48 | -37.36 | 65.57 | 0.6380 | -598.0 | -493.5 | |
| 1.36 | 3.00 | 0.86 | 1.89 | 15.28 | 351.89 | -36.95 | 68.74 | 0.6245 | -615.7 | -537.6 | |
| 0.00 | 1.54 | 0.00 | 1.00 | 17.55 | 351.14 | -37.70 | 65.60 | 0.6425 | -531.0 | -377.1 | |
| 0.00 | 0.91 | 0.00 | 0.58 | 15.27 | 351.58 | -37.26 | 68.88 | 0.6284 | -216.0 | -190.9 | |
| 0.00 | 0.91 | 0.00 | 0.59 | 18.48 | 350.33 | -38.51 | 64.59 | 0.6561 | -461.0 | -420.0 | |
| 0.00 | 1.36 | 0.00 | 0.89 | 15.31 | 349.92 | -38.92 | 69.44 | 0.6495 | 745.0 | 638.6 | |
| 2.72 | 17.70 | 1.78 | 11.58 | 15.69 | 349.75 | -39.09 | 68.95 | 0.6527 | 951.5 | 691.5 | |
| 0.00 | 2.72 | 0.00 | 1.77 | 15.47 | 349.80 | -39.04 | 69.25 | 0.6514 | 687.0 | 654.7 | |
| 0.00 | 1.18 | 0.00 | 0.77 | 15.33 | 349.55 | -39.30 | 69.55 | 0.6542 | 821.0 | 687.5 | |
| 4.27 | -17.00 | 2.80 | -17.00 | 15.96 | 349.36 | -39.48 | 68.69 | 0.6585 | 893.0 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.83 | 15.61 | 349.36 | -39.48 | 69.20 | 0.6574 | 758.0 | 640.4 | |
| 1.00 | 10.62 | 0.66 | 7.03 | 16.07 | 348.88 | -39.96 | 68.70 | 0.6647 | 759.1 | 628.8 | |
| 0.00 | 1.27 | 0.00 | 0.84 | 15.74 | 348.58 | -40.26 | 69.28 | 0.6673 | 652.0 | 588.9 | |
| 0.00 | 1.54 | 0.00 | 1.02 | 14.62 | 348.80 | -40.04 | 70.86 | 0.6612 | 694.0 | 623.8 | |
| 0.00 | 1.63 | 0.00 | 1.08 | 15.52 | 348.47 | -40.37 | 69.65 | 0.6680 | 497.0 | 323.1 | |
| 0.00 | 2.36 | 0.00 | 1.56 | 14.71 | 348.62 | -40.23 | 70.79 | 0.6638 | 641.0 | 542.2 | |
| 2.81 | 14.25 | 1.89 | 9.57 | 16.92 | 348.04 | -40.81 | 67.77 | 0.6777 | 867.5 | 758.8 | |
| 0.00 | 1.54 | 0.00 | 1.01 | 13.75 | 348.78 | -40.06 | 72.16 | 0.6590 | 723.0 | 558.9 | |
| 6.72 | -27.00 | 4.51 | -27.00 | 16.61 | 348.03 | -40.81 | 68.22 | 0.6767 | 852.1 | 999999 | |
| 1.45 | -27.00 | 0.98 | -27.00 | 17.11 | 347.90 | -40.94 | 67.56 | 0.6799 | 722.2 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.61 | 17.32 | 347.63 | -41.21 | 67.35 | 0.6838 | 691.0 | 569.6 | |
| 0.00 | 2.09 | 0.00 | 1.42 | 18.11 | 347.37 | -41.48 | 66.34 | 0.6895 | 774.0 | 686.9 | |
| 0.00 | 1.27 | 0.00 | 0.85 | 16.13 | 347.86 | -40.98 | 68.97 | 0.6772 | 645.0 | 496.1 | |
| 0.00 | 0.91 | 0.00 | 0.61 | 16.79 | 347.69 | -41.15 | 68.09 | 0.6814 | 600.0 | 466.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
