SDO HMI 2011-06-30 20:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.63 | 49.40 | 5.86 | 25.06 | 14.57 | 25.08 | -3.20 | 14.45 | 0.2130 | -4.9 | -131.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-30 20:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

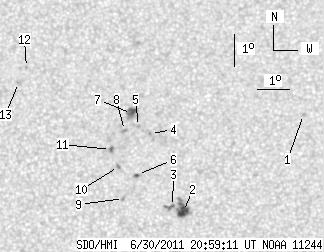

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.69 | 16.17 | 29.92 | 1.63 | 353.27 | 0.2339 | -904.0 | -674.2 | |
| 8.63 | 17.61 | 4.35 | 8.88 | 13.15 | 26.14 | -2.15 | 11.48 | 0.1842 | 1131.8 | 777.4 | |
| 1.09 | 4.45 | 0.55 | 2.24 | 13.30 | 25.79 | -2.49 | 13.07 | 0.1881 | 825.8 | 817.7 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 15.57 | 25.07 | -3.22 | 13.73 | 0.2287 | -919.0 | -767.9 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 15.79 | 24.69 | -3.60 | 15.04 | 0.2339 | -1103.0 | -830.4 | |
| 0.82 | 1.91 | 0.41 | 0.97 | 14.29 | 24.68 | -3.61 | 17.00 | 0.2094 | -941.3 | -883.2 | |
| 0.00 | 10.26 | 0.00 | 5.24 | 16.20 | 24.46 | -3.83 | 15.47 | 0.2416 | -1296.0 | -891.3 | |
| 0.00 | 2.45 | 0.00 | 1.25 | 15.66 | 24.25 | -4.04 | 16.94 | 0.2339 | -1066.0 | -779.2 | |
| 0.00 | 1.91 | 0.00 | 0.96 | 13.55 | 24.25 | -4.03 | 20.13 | 0.1997 | 979.0 | 729.1 | |
| 0.00 | 2.18 | 0.00 | 1.11 | 14.54 | 24.08 | -4.21 | 19.24 | 0.2167 | -1095.0 | -803.3 | |
| 1.09 | 2.36 | 0.55 | 1.20 | 15.07 | 23.81 | -4.47 | 19.50 | 0.2266 | -1019.9 | -934.5 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 17.63 | 21.06 | -7.23 | 25.09 | 0.2842 | 923.0 | 709.3 | |
| 0.00 | 1.73 | 0.00 | 0.89 | 17.15 | 20.82 | -7.47 | 26.58 | 0.2789 | 914.0 | 531.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
