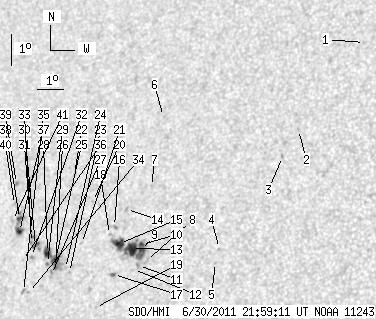

SDO HMI 2011-06-30 21:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.31 | 140.94 | 26.21 | 89.25 | 16.29 | 351.06 | -36.67 | 66.99 | 0.6247 | -54.9 | -35.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-06-30 21:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.81 | 22.88 | 359.97 | -27.76 | 50.92 | 0.5550 | 532.0 | 396.7 | |
| 0.00 | 0.91 | 0.00 | 0.54 | 20.04 | 358.12 | -29.62 | 56.94 | 0.5561 | -677.0 | -612.3 | |
| 0.00 | 1.45 | 0.00 | 0.86 | 19.16 | 357.70 | -30.04 | 58.66 | 0.5557 | -642.0 | -583.1 | |
| 0.00 | 1.09 | 0.00 | 0.65 | 16.21 | 355.91 | -31.82 | 64.74 | 0.5620 | -694.0 | -556.4 | |
| 0.00 | 0.91 | 0.00 | 0.54 | 15.77 | 355.84 | -31.89 | 65.52 | 0.5608 | -616.0 | -522.9 | |
| 0.00 | 0.82 | 0.00 | 0.52 | 20.32 | 352.86 | -34.88 | 60.03 | 0.6212 | -540.0 | -406.8 | |
| 0.00 | 1.54 | 0.00 | 0.96 | 18.09 | 352.93 | -34.81 | 63.38 | 0.6091 | -795.0 | -587.6 | |
| 0.00 | 2.91 | 0.00 | 1.79 | 15.76 | 353.22 | -34.51 | 66.90 | 0.5949 | -850.0 | -601.1 | |
| 2.09 | 56.75 | 1.29 | 35.25 | 16.07 | 352.97 | -34.76 | 66.53 | 0.5995 | -1052.2 | -584.2 | |
| 1.45 | -9.00 | 0.90 | -9.00 | 16.26 | 352.93 | -34.80 | 66.25 | 0.6008 | -949.8 | 999999 | |
| 0.00 | 3.00 | 0.00 | 1.85 | 15.60 | 352.95 | -34.79 | 67.29 | 0.5978 | -784.0 | -659.8 | |
| 0.00 | 0.73 | 0.00 | 0.45 | 15.47 | 352.78 | -34.95 | 67.58 | 0.5995 | -673.0 | -567.6 | |
| 11.26 | -9.00 | 6.99 | -9.00 | 16.12 | 352.57 | -35.16 | 66.64 | 0.6048 | -825.7 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.20 | 17.34 | 352.12 | -35.62 | 64.96 | 0.6158 | -775.0 | -648.0 | |
| 8.72 | -9.00 | 5.45 | -9.00 | 16.27 | 352.07 | -35.66 | 66.65 | 0.6118 | -664.6 | 999999 | |
| 0.00 | 2.63 | 0.00 | 1.66 | 16.79 | 351.76 | -35.97 | 65.97 | 0.6179 | -300.0 | -211.8 | |
| 0.64 | 1.91 | 0.40 | 1.19 | 15.29 | 352.04 | -35.69 | 68.20 | 0.6084 | -669.9 | -544.0 | |
| 0.00 | 1.00 | 0.00 | 0.63 | 16.54 | 351.62 | -36.11 | 66.43 | 0.6186 | -365.0 | -262.9 | |
| 0.00 | 0.91 | 0.00 | 0.57 | 14.25 | 351.54 | -36.20 | 70.07 | 0.6111 | -599.0 | -429.5 | |
| 0.00 | 0.91 | 0.00 | 0.58 | 17.55 | 350.71 | -37.02 | 65.30 | 0.6341 | -268.0 | -155.0 | |
| 0.00 | 1.00 | 0.00 | 0.64 | 16.23 | 350.58 | -37.15 | 67.38 | 0.6305 | -194.0 | -230.7 | |
| 0.00 | 0.91 | 0.00 | 0.59 | 18.38 | 349.78 | -37.95 | 64.50 | 0.6489 | -593.0 | -449.9 | |
| 0.00 | 0.91 | 0.00 | 0.58 | 15.31 | 350.30 | -37.43 | 68.90 | 0.6306 | -303.0 | -190.8 | |
| 0.00 | 1.45 | 0.00 | 0.93 | 15.43 | 350.11 | -37.62 | 68.79 | 0.6334 | 235.0 | 252.2 | |
| 1.63 | 22.43 | 1.05 | 14.44 | 15.70 | 349.65 | -38.08 | 68.56 | 0.6401 | 1005.1 | 680.2 | |
| 0.54 | -25.00 | 0.35 | -25.00 | 15.45 | 349.71 | -38.02 | 68.92 | 0.6386 | 949.5 | 999999 | |
| 0.00 | 2.45 | 0.00 | 1.58 | 15.22 | 349.60 | -38.14 | 69.30 | 0.6392 | 672.0 | 689.0 | |
| 6.17 | -25.00 | 3.99 | -25.00 | 15.90 | 349.28 | -38.45 | 68.39 | 0.6455 | 852.2 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.76 | 15.56 | 349.36 | -38.37 | 68.88 | 0.6433 | 719.0 | 651.5 | |
| 3.00 | 4.27 | 1.95 | 2.78 | 16.11 | 348.75 | -38.98 | 68.29 | 0.6528 | 726.6 | 685.8 | |
| 0.36 | 2.36 | 0.24 | 1.55 | 16.39 | 348.52 | -39.21 | 67.97 | 0.6566 | 795.2 | 589.8 | |
| 0.00 | 1.45 | 0.00 | 0.95 | 15.76 | 348.67 | -39.07 | 68.84 | 0.6527 | 795.0 | 662.2 | |
| 0.00 | 1.45 | 0.00 | 0.95 | 16.20 | 348.56 | -39.17 | 68.23 | 0.6554 | 700.0 | 567.7 | |
| 0.00 | 1.00 | 0.00 | 0.65 | 14.64 | 348.79 | -38.94 | 70.48 | 0.6475 | 702.0 | 655.8 | |
| 0.00 | 2.27 | 0.00 | 1.48 | 14.66 | 348.58 | -39.15 | 70.51 | 0.6502 | 731.0 | 571.7 | |
| 0.00 | 0.82 | 0.00 | 0.54 | 15.63 | 348.33 | -39.41 | 69.17 | 0.6564 | 486.0 | 430.3 | |
| 3.00 | 11.35 | 1.98 | 7.51 | 16.53 | 347.99 | -39.74 | 67.97 | 0.6635 | 883.3 | 769.6 | |
| 2.45 | -37.00 | 1.62 | -37.00 | 16.93 | 347.89 | -39.85 | 67.41 | 0.6662 | 887.7 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.97 | 18.03 | 347.47 | -40.26 | 66.00 | 0.6750 | 817.0 | 711.8 | |
| 0.00 | 1.82 | 0.00 | 1.21 | 17.37 | 347.56 | -40.17 | 66.91 | 0.6715 | 740.0 | 586.0 | |
| 0.00 | 1.63 | 0.00 | 1.09 | 16.86 | 347.61 | -40.12 | 67.62 | 0.6692 | 557.0 | 455.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
