SDO HMI 2011-06-30 21:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.98 | 48.40 | 8.08 | 24.55 | 14.66 | 25.30 | -2.43 | 11.18 | 0.2117 | -69.5 | -91.7 | |
|
previous
or next observation for the same group /

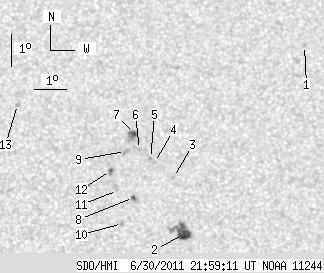

back to the solar disc SDO HMI 2011-06-30 21:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.91 | 0.00 | 0.98 | 19.08 | 30.00 | 2.27 | 352.39 | 0.2840 | -826.0 | -555.6 | |
| 10.53 | 20.79 | 5.31 | 10.48 | 13.16 | 26.15 | -1.58 | 8.51 | 0.1826 | 1112.4 | 836.2 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 14.93 | 25.82 | -1.91 | 8.72 | 0.2135 | -842.0 | -656.5 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 15.39 | 25.22 | -2.52 | 10.99 | 0.2231 | -912.0 | -680.4 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 15.52 | 25.09 | -2.64 | 11.42 | 0.2256 | -987.0 | -886.6 | |
| 0.00 | 1.82 | 0.00 | 0.92 | 15.80 | 24.74 | -3.00 | 12.61 | 0.2315 | -1090.0 | -780.8 | |
| 2.09 | 7.99 | 1.07 | 4.08 | 16.30 | 24.57 | -3.16 | 12.78 | 0.2405 | -955.4 | -867.6 | |
| 1.73 | 2.54 | 0.87 | 1.29 | 14.30 | 24.57 | -3.16 | 15.02 | 0.2074 | -994.2 | -797.4 | |
| 0.00 | 2.81 | 0.00 | 1.43 | 15.74 | 24.29 | -3.44 | 14.46 | 0.2323 | -1037.0 | -816.2 | |
| 0.00 | 2.18 | 0.00 | 1.10 | 13.49 | 24.23 | -3.50 | 17.73 | 0.1957 | 1027.0 | 692.8 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 14.52 | 24.06 | -3.67 | 16.97 | 0.2134 | -786.0 | -627.9 | |
| 1.63 | 2.45 | 0.83 | 1.25 | 15.14 | 23.83 | -3.90 | 17.09 | 0.2247 | -953.4 | -937.6 | |
| 0.00 | 1.82 | 0.00 | 0.94 | 17.20 | 20.81 | -6.93 | 24.83 | 0.2755 | 1038.0 | 686.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
