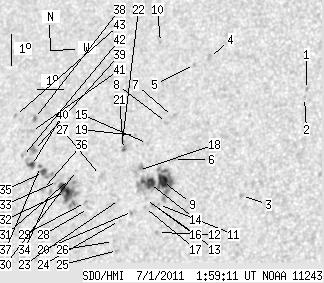

SDO HMI 2011-07-01 01:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.06 | 174.57 | 26.71 | 107.66 | 16.33 | 351.00 | -34.52 | 65.97 | 0.5973 | -76.0 | -73.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-01 01:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.79 | 19.19 | 357.73 | -27.79 | 56.91 | 0.5276 | -723.0 | -544.9 | |
| 0.00 | 1.00 | 0.00 | 0.58 | 18.93 | 357.71 | -27.82 | 57.37 | 0.5262 | -713.0 | -614.2 | |
| 0.00 | 2.00 | 0.00 | 1.17 | 15.80 | 355.95 | -29.58 | 64.11 | 0.5300 | -792.0 | -600.3 | |
| 0.00 | 2.82 | 0.00 | 1.71 | 20.12 | 353.92 | -31.60 | 58.29 | 0.5806 | -626.0 | -469.8 | |
| 0.00 | 1.09 | 0.00 | 0.66 | 19.88 | 353.40 | -32.12 | 59.01 | 0.5855 | -720.0 | -621.5 | |
| 0.00 | 2.36 | 0.00 | 1.42 | 16.86 | 353.24 | -32.29 | 63.97 | 0.5711 | -701.0 | -559.2 | |
| 0.00 | 1.63 | 0.00 | 0.99 | 18.21 | 352.93 | -32.60 | 61.96 | 0.5820 | -726.0 | -636.2 | |
| 0.00 | 1.73 | 0.00 | 1.05 | 18.02 | 352.74 | -32.79 | 62.38 | 0.5833 | -709.0 | -622.1 | |
| 9.45 | 59.04 | 5.69 | 35.65 | 16.16 | 352.95 | -32.57 | 65.28 | 0.5713 | -1000.9 | -559.0 | |
| 0.00 | 1.00 | 0.00 | 0.62 | 20.55 | 351.92 | -33.60 | 58.95 | 0.6071 | -451.0 | -451.6 | |
| 0.00 | 1.09 | 0.00 | 0.66 | 15.44 | 352.93 | -32.59 | 66.50 | 0.5683 | -678.0 | -525.8 | |
| 0.00 | 1.63 | 0.00 | 0.98 | 14.57 | 353.05 | -32.48 | 67.92 | 0.5630 | -590.0 | -520.3 | |
| 0.00 | 1.45 | 0.00 | 0.88 | 15.43 | 352.71 | -32.81 | 66.63 | 0.5712 | -766.0 | -586.5 | |
| 8.72 | -9.00 | 5.28 | -9.00 | 16.09 | 352.48 | -33.05 | 65.67 | 0.5772 | -780.3 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.55 | 17.34 | 352.15 | -33.37 | 63.81 | 0.5873 | -745.0 | -624.7 | |
| 0.00 | 0.82 | 0.00 | 0.49 | 15.58 | 352.42 | -33.11 | 66.53 | 0.5757 | -332.0 | -313.0 | |
| 0.00 | 1.09 | 0.00 | 0.66 | 15.33 | 352.42 | -33.10 | 66.94 | 0.5745 | -645.0 | -457.3 | |
| 0.00 | 6.36 | 0.00 | 3.88 | 16.48 | 351.98 | -33.54 | 65.29 | 0.5855 | 216.0 | -12.6 | |
| 0.00 | 1.27 | 0.00 | 0.78 | 17.58 | 351.64 | -33.88 | 63.71 | 0.5949 | -568.0 | -482.3 | |
| 0.00 | 2.91 | 0.00 | 1.76 | 15.20 | 351.99 | -33.53 | 67.39 | 0.5796 | -639.0 | -533.1 | |
| 1.45 | 3.00 | 0.90 | 1.85 | 17.13 | 351.27 | -34.25 | 64.63 | 0.5975 | -599.8 | -513.3 | |
| 0.00 | 1.91 | 0.00 | 1.18 | 17.41 | 351.17 | -34.35 | 64.24 | 0.6000 | -625.0 | -453.8 | |
| 0.00 | 0.82 | 0.00 | 0.50 | 15.56 | 351.43 | -34.09 | 67.07 | 0.5885 | -163.0 | -188.1 | |
| 0.00 | 0.73 | 0.00 | 0.44 | 14.90 | 351.55 | -33.97 | 68.08 | 0.5842 | -508.0 | -344.9 | |
| 0.00 | 1.73 | 0.00 | 1.05 | 13.97 | 351.64 | -33.88 | 69.59 | 0.5794 | -715.0 | -567.7 | |
| 0.00 | 0.91 | 0.00 | 0.55 | 14.24 | 351.44 | -34.08 | 69.22 | 0.5831 | -636.0 | -552.7 | |
| 0.00 | 2.00 | 0.00 | 1.24 | 16.29 | 350.56 | -34.97 | 66.32 | 0.6029 | -599.0 | -351.2 | |
| 0.00 | 1.54 | 0.00 | 0.96 | 15.24 | 350.30 | -35.22 | 68.10 | 0.6020 | 273.0 | 201.1 | |
| 0.00 | 1.45 | 0.00 | 0.90 | 15.43 | 350.15 | -35.38 | 67.88 | 0.6046 | 787.0 | 668.2 | |
| 0.00 | 1.09 | 0.00 | 0.68 | 16.42 | 349.59 | -35.93 | 66.57 | 0.6157 | -215.0 | -114.3 | |
| 0.00 | 1.91 | 0.00 | 1.20 | 16.16 | 349.41 | -36.11 | 67.06 | 0.6170 | 412.0 | 391.6 | |
| 14.81 | 30.97 | 9.30 | 19.42 | 15.75 | 349.30 | -36.22 | 67.75 | 0.6168 | 924.2 | 706.0 | |
| 0.00 | 2.36 | 0.00 | 1.49 | 16.05 | 348.92 | -36.60 | 67.44 | 0.6227 | 447.0 | 494.1 | |
| 0.00 | 2.09 | 0.00 | 1.32 | 15.70 | 348.72 | -36.81 | 68.07 | 0.6240 | 703.0 | 589.7 | |
| 3.54 | 7.99 | 2.26 | 5.09 | 16.32 | 348.30 | -37.22 | 67.30 | 0.6315 | 875.0 | 745.6 | |
| 0.00 | 2.36 | 0.00 | 1.50 | 15.79 | 348.38 | -37.14 | 68.08 | 0.6285 | 662.0 | 539.9 | |
| 0.00 | 1.54 | 0.00 | 0.99 | 16.50 | 348.14 | -37.38 | 67.09 | 0.6342 | 871.0 | 809.1 | |
| 1.82 | 2.36 | 1.18 | 1.53 | 18.00 | 347.54 | -37.99 | 65.11 | 0.6475 | 741.7 | 756.3 | |
| 0.00 | 4.63 | 0.00 | 2.98 | 16.99 | 347.75 | -37.78 | 66.51 | 0.6410 | 924.0 | 787.6 | |
| 3.27 | 6.81 | 2.10 | 4.38 | 16.52 | 347.78 | -37.75 | 67.21 | 0.6389 | 825.3 | 559.6 | |
| 0.00 | 2.27 | 0.00 | 1.47 | 17.59 | 347.52 | -38.00 | 65.73 | 0.6461 | 762.0 | 677.2 | |
| 0.00 | 1.09 | 0.00 | 0.71 | 16.79 | 347.35 | -38.18 | 66.98 | 0.6452 | 439.0 | 379.5 | |
| 0.00 | 1.45 | 0.00 | 0.95 | 18.07 | 346.74 | -38.78 | 65.35 | 0.6574 | 497.0 | 392.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
