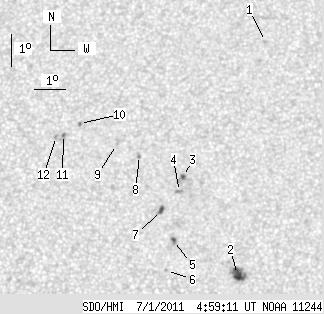

SDO HMI 2011-07-01 04:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.73 | 41.44 | 8.45 | 21.03 | 15.11 | 24.84 | 0.97 | 354.71 | 0.2159 | 105.8 | -11.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-01 04:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.52 | 20.63 | 27.47 | 3.59 | 349.14 | 0.3124 | -818.0 | -677.6 | |
| 10.18 | 16.81 | 5.13 | 8.48 | 13.31 | 26.45 | 2.57 | 346.46 | 0.1875 | 1064.6 | 741.5 | |
| 1.91 | 5.63 | 0.97 | 2.87 | 16.36 | 24.77 | 0.90 | 356.33 | 0.2351 | -1020.0 | -741.7 | |
| 0.00 | 2.00 | 0.00 | 1.02 | 15.89 | 24.64 | 0.77 | 356.74 | 0.2270 | -1147.0 | -886.4 | |
| 1.64 | 3.09 | 0.83 | 1.56 | 14.37 | 24.45 | 0.57 | 357.22 | 0.2007 | -983.8 | -835.4 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 13.43 | 24.23 | 0.35 | 358.14 | 0.1845 | 746.0 | 556.6 | |
| 3.00 | 4.09 | 1.52 | 2.07 | 15.30 | 24.07 | 0.20 | 359.12 | 0.2165 | -1048.3 | -807.3 | |
| 0.00 | 2.00 | 0.00 | 1.02 | 17.02 | 23.37 | -0.50 | 1.97 | 0.2460 | -917.0 | -807.3 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 17.37 | 22.64 | -1.24 | 4.71 | 0.2526 | -907.0 | -690.9 | |
| 0.00 | 1.64 | 0.00 | 0.84 | 18.03 | 21.45 | -2.43 | 8.75 | 0.2661 | 826.0 | 668.6 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 17.68 | 20.94 | -2.94 | 10.80 | 0.2617 | 1022.0 | 838.9 | |
| 0.00 | 1.82 | 0.00 | 0.93 | 17.62 | 20.72 | -3.16 | 11.65 | 0.2614 | 873.0 | 772.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
