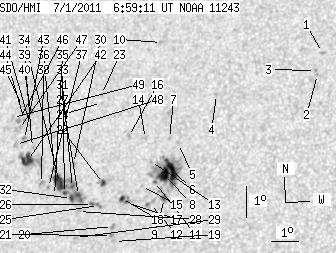

SDO HMI 2011-07-01 06:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.96 | 226.38 | 36.51 | 135.77 | 16.27 | 350.75 | -32.03 | 64.75 | 0.5646 | 19.8 | 77.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-01 06:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.18 | 0.00 | 1.24 | 20.14 | 358.05 | -24.73 | 52.51 | 0.4970 | -739.0 | -546.4 | |
| 0.00 | 0.82 | 0.00 | 0.46 | 19.44 | 357.99 | -24.79 | 53.79 | 0.4921 | -454.0 | -486.4 | |
| 0.00 | 1.00 | 0.00 | 0.57 | 19.56 | 357.90 | -24.89 | 53.66 | 0.4942 | -635.0 | -459.0 | |
| 0.00 | 1.00 | 0.00 | 0.58 | 18.73 | 354.46 | -28.32 | 58.16 | 0.5309 | -707.0 | -602.8 | |
| 0.00 | 1.73 | 0.00 | 1.01 | 17.15 | 353.35 | -29.43 | 61.68 | 0.5354 | -812.0 | -594.1 | |
| 12.63 | 68.87 | 7.38 | 40.30 | 16.30 | 353.24 | -29.54 | 63.24 | 0.5321 | -1081.4 | -418.7 | |
| 0.00 | 1.27 | 0.00 | 0.75 | 17.30 | 352.99 | -29.79 | 61.68 | 0.5409 | -738.0 | -586.2 | |
| 9.81 | -6.00 | 5.74 | -6.00 | 16.17 | 353.00 | -29.78 | 63.63 | 0.5345 | -971.6 | 999999 | |
| 1.73 | 7.18 | 1.01 | 4.19 | 15.42 | 353.12 | -29.66 | 64.87 | 0.5289 | -766.0 | -615.6 | |
| 0.00 | 2.36 | 0.00 | 1.42 | 20.34 | 352.09 | -30.69 | 57.34 | 0.5706 | -310.0 | -312.9 | |
| 0.36 | -6.00 | 0.21 | -6.00 | 15.94 | 352.67 | -30.11 | 64.24 | 0.5376 | -453.5 | 999999 | |
| 0.00 | 4.27 | 0.00 | 2.50 | 15.25 | 352.64 | -30.14 | 65.47 | 0.5346 | -708.0 | -538.5 | |
| 0.00 | 1.45 | 0.00 | 0.86 | 16.57 | 352.42 | -30.36 | 63.32 | 0.5443 | -536.0 | -381.1 | |
| 0.00 | 1.64 | 0.00 | 0.97 | 17.28 | 352.11 | -30.67 | 62.31 | 0.5522 | -783.0 | -546.0 | |
| 0.00 | 1.09 | 0.00 | 0.64 | 15.78 | 352.22 | -30.56 | 64.81 | 0.5428 | -482.0 | -299.8 | |
| 0.00 | 2.45 | 0.00 | 1.47 | 17.33 | 351.46 | -31.32 | 62.64 | 0.5608 | -785.0 | -529.9 | |
| 0.91 | 8.99 | 0.54 | 5.32 | 15.26 | 351.75 | -31.03 | 65.98 | 0.5465 | -693.4 | -252.9 | |
| 2.09 | -17.00 | 1.24 | -17.00 | 15.38 | 351.55 | -31.23 | 65.89 | 0.5498 | -471.1 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.38 | 14.04 | 351.50 | -31.28 | 68.26 | 0.5443 | -496.0 | -482.1 | |
| 0.00 | 2.63 | 0.00 | 1.56 | 14.51 | 351.36 | -31.42 | 67.52 | 0.5483 | -545.0 | -461.9 | |
| 0.00 | 1.54 | 0.00 | 0.91 | 14.22 | 351.37 | -31.42 | 68.01 | 0.5470 | -764.0 | -632.2 | |
| 2.63 | 4.45 | 1.58 | 2.66 | 15.84 | 350.80 | -31.98 | 65.54 | 0.5619 | -680.2 | -385.1 | |
| 0.00 | 1.18 | 0.00 | 0.72 | 18.63 | 350.18 | -32.60 | 61.33 | 0.5841 | -633.0 | -400.9 | |
| 0.00 | 0.27 | 0.00 | 0.17 | 18.38 | 350.23 | -32.55 | 61.70 | 0.5820 | -548.0 | -414.3 | |
| 0.00 | 2.09 | 0.00 | 1.25 | 15.15 | 350.73 | -32.05 | 66.75 | 0.5596 | 832.0 | 664.0 | |
| 1.36 | 1.54 | 0.82 | 0.92 | 15.17 | 350.51 | -32.28 | 66.83 | 0.5627 | 687.6 | 801.5 | |
| 2.09 | 46.97 | 1.26 | 28.47 | 15.44 | 349.93 | -32.85 | 66.68 | 0.5715 | 947.1 | 671.4 | |
| 0.00 | 1.82 | 0.00 | 1.09 | 14.94 | 350.02 | -32.76 | 67.47 | 0.5682 | 779.0 | 552.8 | |
| 0.00 | 1.45 | 0.00 | 0.87 | 14.13 | 350.04 | -32.74 | 68.84 | 0.5645 | 645.0 | 554.4 | |
| 0.00 | 1.54 | 0.00 | 0.94 | 16.43 | 349.56 | -33.22 | 65.23 | 0.5809 | 707.0 | 546.8 | |
| 1.54 | -27.00 | 0.93 | -27.00 | 15.68 | 349.66 | -33.12 | 66.41 | 0.5761 | 886.7 | 999999 | |
| 2.45 | -27.00 | 1.48 | -27.00 | 15.34 | 349.69 | -33.09 | 66.97 | 0.5743 | 801.7 | 999999 | |
| 1.64 | -27.00 | 0.99 | -27.00 | 15.49 | 349.40 | -33.39 | 66.87 | 0.5788 | 931.7 | 999999 | |
| 12.27 | -27.00 | 7.47 | -27.00 | 15.83 | 349.14 | -33.64 | 66.45 | 0.5836 | 928.0 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.66 | 15.42 | 349.03 | -33.75 | 67.18 | 0.5833 | 349.0 | 356.8 | |
| 0.00 | 1.54 | 0.00 | 0.95 | 16.23 | 348.87 | -33.91 | 65.93 | 0.5888 | 833.0 | 670.4 | |
| 0.00 | 1.27 | 0.00 | 0.78 | 15.66 | 348.75 | -34.03 | 66.91 | 0.5879 | 689.0 | 557.4 | |
| 0.00 | 2.36 | 0.00 | 1.45 | 15.78 | 348.46 | -34.32 | 66.86 | 0.5922 | 711.0 | 538.7 | |
| 0.00 | 1.09 | 0.00 | 0.68 | 16.89 | 347.89 | -34.89 | 65.36 | 0.6044 | 686.0 | 591.8 | |
| 0.00 | 3.18 | 0.00 | 1.99 | 18.05 | 347.56 | -35.23 | 63.73 | 0.6138 | 869.0 | 722.9 | |
| 0.00 | 0.82 | 0.00 | 0.51 | 17.58 | 347.66 | -35.12 | 64.40 | 0.6103 | 692.0 | 613.9 | |
| 9.45 | 24.08 | 5.86 | 14.92 | 16.48 | 347.78 | -35.00 | 66.07 | 0.6040 | 900.6 | 677.3 | |
| 0.00 | 3.18 | 0.00 | 1.98 | 17.14 | 347.52 | -35.26 | 65.17 | 0.6100 | 782.0 | 716.9 | |
| 0.00 | 1.09 | 0.00 | 0.68 | 17.73 | 347.39 | -35.39 | 64.31 | 0.6144 | 851.0 | 767.2 | |
| 0.00 | 1.18 | 0.00 | 0.74 | 18.17 | 347.21 | -35.57 | 63.72 | 0.6186 | 618.0 | 572.2 | |
| 0.00 | 3.00 | 0.00 | 1.88 | 17.73 | 347.16 | -35.62 | 64.44 | 0.6172 | 630.0 | 563.6 | |
| 0.00 | 5.63 | 0.00 | 3.53 | 17.44 | 347.22 | -35.56 | 64.84 | 0.6152 | 548.0 | 553.1 | |
| 0.00 | 2.36 | 0.00 | 1.48 | 16.97 | 347.21 | -35.57 | 65.58 | 0.6133 | 430.0 | 359.2 | |
| 0.00 | 2.09 | 0.00 | 1.32 | 17.81 | 346.90 | -35.88 | 64.43 | 0.6208 | 475.0 | 392.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
