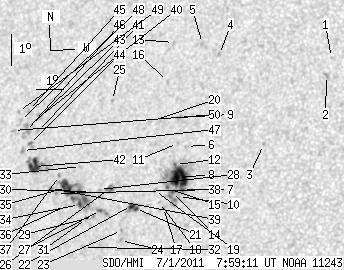

SDO HMI 2011-07-01 07:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.96 | 222.71 | 35.13 | 132.89 | 16.35 | 350.68 | -31.55 | 64.32 | 0.5588 | -49.2 | 98.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-01 07:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.52 | 20.15 | 358.04 | -24.20 | 51.94 | 0.4907 | -604.0 | -510.2 | |
| 0.00 | 3.00 | 0.00 | 1.70 | 19.58 | 357.95 | -24.28 | 53.03 | 0.4869 | -501.0 | -423.4 | |
| 0.00 | 1.18 | 0.00 | 0.67 | 17.35 | 356.06 | -26.18 | 58.80 | 0.4942 | -770.0 | -539.1 | |
| 0.00 | 1.82 | 0.00 | 1.07 | 20.17 | 353.97 | -28.26 | 55.72 | 0.5400 | -464.0 | -462.7 | |
| 0.00 | 1.64 | 0.00 | 0.97 | 20.51 | 353.27 | -28.96 | 55.74 | 0.5508 | -214.0 | -289.6 | |
| 0.00 | 1.45 | 0.00 | 0.85 | 17.23 | 353.30 | -28.93 | 61.20 | 0.5293 | -754.0 | -593.0 | |
| 0.55 | 68.23 | 0.32 | 39.68 | 15.88 | 353.38 | -28.86 | 63.53 | 0.5206 | -1049.5 | -502.4 | |
| 21.08 | -7.00 | 12.25 | -7.00 | 16.25 | 353.21 | -29.03 | 62.98 | 0.5249 | -1082.9 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.34 | 18.14 | 352.85 | -29.39 | 59.98 | 0.5407 | -829.0 | -714.3 | |
| 0.00 | 1.09 | 0.00 | 0.63 | 15.66 | 353.27 | -28.97 | 64.00 | 0.5209 | -769.0 | -670.8 | |
| 0.00 | 1.27 | 0.00 | 0.74 | 17.32 | 352.96 | -29.28 | 61.30 | 0.5343 | -745.0 | -568.6 | |
| 1.27 | -7.00 | 0.74 | -7.00 | 16.66 | 353.00 | -29.24 | 62.42 | 0.5300 | -563.9 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.54 | 20.51 | 352.19 | -30.05 | 56.58 | 0.5640 | -551.0 | -448.2 | |
| 1.18 | -7.00 | 0.69 | -7.00 | 15.81 | 353.02 | -29.21 | 63.89 | 0.5249 | -712.5 | 999999 | |
| 0.91 | -7.00 | 0.53 | -7.00 | 15.90 | 352.83 | -29.41 | 63.87 | 0.5280 | -505.5 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.86 | 19.27 | 352.22 | -30.01 | 58.56 | 0.5555 | -555.0 | -444.1 | |
| 0.00 | 1.18 | 0.00 | 0.69 | 15.30 | 352.78 | -29.46 | 64.96 | 0.5256 | -725.0 | -571.5 | |
| 0.00 | 0.55 | 0.00 | 0.32 | 15.46 | 352.61 | -29.63 | 64.80 | 0.5287 | -549.0 | -313.0 | |
| 0.00 | 1.64 | 0.00 | 0.96 | 15.83 | 352.37 | -29.87 | 64.30 | 0.5338 | -576.0 | -379.6 | |
| 0.00 | 0.82 | 0.00 | 0.49 | 17.99 | 351.84 | -30.40 | 60.94 | 0.5526 | -578.0 | -433.4 | |
| 2.27 | 9.99 | 1.33 | 5.88 | 15.25 | 351.76 | -30.47 | 65.68 | 0.5390 | -714.6 | -133.5 | |
| 2.54 | -21.00 | 1.50 | -21.00 | 15.34 | 351.60 | -30.63 | 65.62 | 0.5416 | -548.8 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.91 | 14.55 | 351.36 | -30.88 | 67.14 | 0.5411 | -588.0 | -417.8 | |
| 0.00 | 1.64 | 0.00 | 0.96 | 14.24 | 351.37 | -30.87 | 67.69 | 0.5396 | -800.0 | -624.8 | |
| 0.00 | 1.27 | 0.00 | 0.77 | 18.62 | 350.28 | -31.95 | 60.95 | 0.5758 | -637.0 | -441.4 | |
| 0.00 | 4.91 | 0.00 | 2.92 | 15.85 | 350.70 | -31.53 | 65.27 | 0.5560 | -614.0 | -584.1 | |
| 1.27 | 4.82 | 0.76 | 2.86 | 15.16 | 350.48 | -31.75 | 66.58 | 0.5556 | 839.0 | 696.3 | |
| 0.00 | 1.45 | 0.00 | 0.87 | 15.81 | 350.33 | -31.90 | 65.55 | 0.5607 | -277.0 | -175.5 | |
| 0.00 | 1.73 | 0.00 | 1.03 | 14.96 | 350.25 | -31.98 | 67.03 | 0.5578 | -284.0 | -124.6 | |
| 0.00 | 1.00 | 0.00 | 0.60 | 15.74 | 350.01 | -32.22 | 65.85 | 0.5646 | 461.0 | 432.4 | |
| 0.00 | 2.27 | 0.00 | 1.36 | 14.89 | 350.01 | -32.23 | 67.28 | 0.5609 | 578.0 | 476.3 | |
| 0.00 | 1.91 | 0.00 | 1.14 | 13.99 | 350.04 | -32.19 | 68.82 | 0.5566 | 877.0 | 635.8 | |
| 0.00 | 1.09 | 0.00 | 0.66 | 16.51 | 349.49 | -32.74 | 64.85 | 0.5750 | 499.0 | 458.4 | |
| 2.45 | 48.06 | 1.47 | 28.96 | 15.32 | 349.67 | -32.56 | 66.73 | 0.5672 | 794.9 | 733.6 | |
| 13.90 | -34.00 | 8.42 | -34.00 | 15.84 | 349.09 | -33.15 | 66.17 | 0.5772 | 915.3 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.71 | 15.28 | 349.19 | -33.05 | 67.05 | 0.5734 | 616.0 | 474.1 | |
| 0.00 | 1.64 | 0.00 | 1.00 | 16.21 | 348.75 | -33.48 | 65.74 | 0.5832 | 809.0 | 599.2 | |
| 0.00 | 1.18 | 0.00 | 0.72 | 15.64 | 348.74 | -33.49 | 66.67 | 0.5808 | 595.0 | 549.7 | |
| 0.00 | 1.73 | 0.00 | 1.05 | 15.79 | 348.49 | -33.75 | 66.56 | 0.5848 | 772.0 | 687.8 | |
| 0.00 | 2.82 | 0.00 | 1.75 | 18.04 | 347.60 | -34.64 | 63.44 | 0.6064 | 895.0 | 732.0 | |
| 0.00 | 1.09 | 0.00 | 0.68 | 17.57 | 347.63 | -34.61 | 64.17 | 0.6038 | 787.0 | 621.2 | |
| 10.09 | 21.35 | 6.22 | 13.16 | 16.47 | 347.74 | -34.49 | 65.85 | 0.5974 | 888.4 | 661.9 | |
| 0.00 | 1.09 | 0.00 | 0.68 | 17.78 | 347.34 | -34.89 | 63.98 | 0.6083 | 816.0 | 734.0 | |
| 1.45 | 2.91 | 0.90 | 1.80 | 17.18 | 347.40 | -34.84 | 64.89 | 0.6049 | 598.6 | 743.0 | |
| 0.00 | 1.64 | 0.00 | 1.02 | 18.22 | 347.13 | -35.11 | 63.42 | 0.6131 | 612.0 | 518.6 | |
| 0.00 | 7.36 | 0.00 | 4.59 | 17.55 | 347.16 | -35.07 | 64.43 | 0.6096 | 544.0 | 618.8 | |
| 0.00 | 2.63 | 0.00 | 1.64 | 16.95 | 347.17 | -35.06 | 65.36 | 0.6068 | 551.0 | 426.2 | |
| 0.00 | 2.18 | 0.00 | 1.37 | 17.89 | 346.89 | -35.35 | 64.04 | 0.6146 | 561.0 | 417.9 | |
| 0.00 | 1.09 | 0.00 | 0.69 | 18.18 | 346.74 | -35.49 | 63.68 | 0.6176 | 578.0 | 434.2 | |
| 0.00 | 1.73 | 0.00 | 1.08 | 17.57 | 346.68 | -35.55 | 64.64 | 0.6156 | 213.0 | 268.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
