SDO HMI 2011-07-01 08:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 64.41 | 220.60 | 38.06 | 130.84 | 16.18 | 350.67 | -31.02 | 64.32 | 0.5508 | -35.7 | 124.9 | |
|
previous
or next observation for the same group /

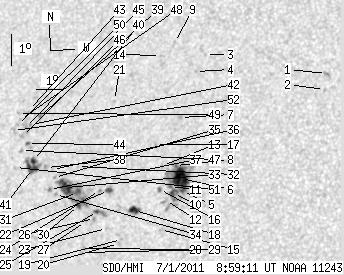

back to the solar disc SDO HMI 2011-07-01 08:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.27 | 0.00 | 1.28 | 19.62 | 357.90 | -23.78 | 52.43 | 0.4812 | -878.0 | -713.3 | |
| 0.00 | 1.27 | 0.00 | 0.72 | 19.11 | 357.91 | -23.77 | 53.32 | 0.4769 | -634.0 | -426.8 | |
| 0.00 | 0.73 | 0.00 | 0.43 | 20.14 | 353.44 | -28.24 | 55.76 | 0.5395 | -641.0 | -470.0 | |
| 0.00 | 1.00 | 0.00 | 0.59 | 19.59 | 353.18 | -28.50 | 56.88 | 0.5389 | -815.0 | -630.8 | |
| 0.91 | 72.14 | 0.52 | 41.72 | 15.80 | 353.36 | -28.32 | 63.31 | 0.5129 | -894.7 | -528.9 | |
| 21.08 | -5.00 | 12.18 | -5.00 | 16.20 | 353.23 | -28.46 | 62.68 | 0.5170 | -1135.2 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.90 | 18.12 | 352.90 | -28.78 | 59.56 | 0.5328 | -831.0 | -713.3 | |
| 0.36 | -5.00 | 0.21 | -5.00 | 16.61 | 352.98 | -28.70 | 62.14 | 0.5226 | -671.0 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.49 | 20.49 | 352.22 | -29.47 | 56.17 | 0.5568 | -504.0 | -468.3 | |
| 4.00 | -5.00 | 2.31 | -5.00 | 15.73 | 353.05 | -28.64 | 63.66 | 0.5168 | -728.0 | 999999 | |
| 0.45 | -5.00 | 0.26 | -5.00 | 15.94 | 352.91 | -28.78 | 63.37 | 0.5199 | -595.4 | 999999 | |
| 0.00 | 3.18 | 0.00 | 1.84 | 15.50 | 352.80 | -28.89 | 64.24 | 0.5190 | -406.0 | -350.5 | |
| 0.00 | 1.09 | 0.00 | 0.64 | 16.59 | 352.51 | -29.17 | 62.49 | 0.5288 | -297.0 | -255.0 | |
| 0.00 | 1.00 | 0.00 | 0.60 | 20.07 | 351.78 | -29.90 | 57.19 | 0.5593 | -510.0 | -376.6 | |
| 0.00 | 1.45 | 0.00 | 0.84 | 14.60 | 352.75 | -28.94 | 65.92 | 0.5149 | -719.0 | -588.3 | |
| 0.55 | 1.73 | 0.32 | 1.00 | 15.84 | 352.53 | -29.16 | 63.81 | 0.5244 | -423.7 | -361.3 | |
| 0.00 | 0.82 | 0.00 | 0.48 | 17.25 | 352.14 | -29.54 | 61.61 | 0.5373 | -788.0 | -596.3 | |
| 6.18 | 8.90 | 3.61 | 5.20 | 15.16 | 351.72 | -29.96 | 65.53 | 0.5317 | -711.6 | -222.7 | |
| 0.00 | 0.82 | 0.00 | 0.48 | 14.25 | 351.39 | -30.30 | 67.36 | 0.5319 | -707.0 | -613.8 | |
| 0.00 | 2.00 | 0.00 | 1.17 | 14.12 | 351.30 | -30.39 | 67.64 | 0.5325 | -640.0 | -570.0 | |
| 0.00 | 0.91 | 0.00 | 0.55 | 18.60 | 350.36 | -31.33 | 60.58 | 0.5679 | -608.0 | -422.8 | |
| 2.63 | 4.00 | 1.56 | 2.37 | 15.76 | 350.67 | -31.02 | 65.12 | 0.5488 | -669.2 | -564.9 | |
| 0.00 | 1.45 | 0.00 | 0.86 | 14.58 | 350.79 | -30.90 | 67.11 | 0.5415 | -395.0 | -256.6 | |
| 0.00 | 1.45 | 0.00 | 0.86 | 15.76 | 350.34 | -31.35 | 65.33 | 0.5531 | -319.0 | -96.6 | |
| 2.18 | 6.45 | 1.29 | 3.81 | 15.10 | 350.37 | -31.31 | 66.44 | 0.5495 | 878.3 | 793.3 | |
| 0.00 | 1.73 | 0.00 | 1.02 | 14.88 | 350.30 | -31.39 | 66.86 | 0.5495 | -315.0 | -196.9 | |
| 0.00 | 1.27 | 0.00 | 0.76 | 14.78 | 349.98 | -31.71 | 67.21 | 0.5533 | 777.0 | 629.1 | |
| 0.00 | 1.64 | 0.00 | 0.97 | 13.94 | 350.08 | -31.61 | 68.62 | 0.5484 | 795.0 | 644.2 | |
| 0.00 | 1.18 | 0.00 | 0.70 | 13.81 | 350.02 | -31.66 | 68.87 | 0.5486 | 617.0 | 555.5 | |
| 1.73 | 51.24 | 1.03 | 30.71 | 15.27 | 349.64 | -32.05 | 66.55 | 0.5601 | 899.9 | 717.0 | |
| 3.18 | -30.00 | 1.90 | -30.00 | 15.67 | 349.53 | -32.16 | 65.93 | 0.5634 | 938.4 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.49 | 16.49 | 349.38 | -32.31 | 64.65 | 0.5692 | 805.0 | 576.0 | |
| 10.08 | -30.00 | 6.07 | -30.00 | 15.82 | 349.05 | -32.63 | 65.94 | 0.5704 | 980.5 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.82 | 15.59 | 348.72 | -32.97 | 66.50 | 0.5737 | 712.0 | 515.1 | |
| 0.00 | 0.91 | 0.00 | 0.55 | 16.12 | 348.58 | -33.11 | 65.70 | 0.5779 | 629.0 | 496.7 | |
| 0.00 | 0.82 | 0.00 | 0.50 | 16.37 | 348.46 | -33.23 | 65.36 | 0.5806 | 754.0 | 589.9 | |
| 0.00 | 1.82 | 0.00 | 1.10 | 15.74 | 348.46 | -33.22 | 66.39 | 0.5777 | 759.0 | 676.2 | |
| 0.00 | 2.63 | 0.00 | 1.61 | 16.42 | 348.22 | -33.47 | 65.39 | 0.5840 | 812.0 | 702.6 | |
| 0.00 | 2.36 | 0.00 | 1.46 | 18.02 | 347.62 | -34.07 | 63.17 | 0.5992 | 849.0 | 717.7 | |
| 2.27 | 17.26 | 1.39 | 10.59 | 16.63 | 347.68 | -34.01 | 65.34 | 0.5919 | 910.2 | 702.3 | |
| 7.45 | -40.00 | 4.57 | -40.00 | 16.38 | 347.69 | -34.00 | 65.74 | 0.5906 | 852.7 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.67 | 17.76 | 347.32 | -34.36 | 63.74 | 0.6016 | 863.0 | 760.2 | |
| 0.00 | 0.55 | 0.00 | 0.34 | 18.19 | 347.15 | -34.54 | 63.15 | 0.6059 | 559.0 | 602.8 | |
| 1.36 | 2.91 | 0.84 | 1.79 | 17.16 | 347.34 | -34.35 | 64.68 | 0.5986 | 673.2 | 682.6 | |
| 0.00 | 4.45 | 0.00 | 2.76 | 17.66 | 347.15 | -34.53 | 63.99 | 0.6033 | 753.0 | 651.6 | |
| 0.00 | 1.73 | 0.00 | 1.07 | 17.37 | 347.10 | -34.59 | 64.47 | 0.6026 | 657.0 | 481.1 | |
| 0.00 | 1.64 | 0.00 | 1.01 | 16.93 | 347.15 | -34.53 | 65.13 | 0.5999 | 659.0 | 451.1 | |
| 0.00 | 1.18 | 0.00 | 0.74 | 17.90 | 346.90 | -34.78 | 63.74 | 0.6076 | 531.0 | 470.2 | |
| 0.00 | 1.09 | 0.00 | 0.68 | 18.09 | 346.78 | -34.91 | 63.51 | 0.6099 | 609.0 | 520.6 | |
| 0.00 | 1.36 | 0.00 | 0.85 | 17.74 | 346.82 | -34.87 | 64.03 | 0.6078 | 450.0 | 393.9 | |
| 0.00 | 1.45 | 0.00 | 0.90 | 16.39 | 347.03 | -34.65 | 66.05 | 0.5991 | 439.0 | 374.8 | |
| 0.00 | 3.09 | 0.00 | 1.92 | 17.55 | 346.71 | -34.98 | 64.39 | 0.6084 | 375.0 | 356.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
