SDO HMI 2011-07-01 08:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.00 | 44.16 | 6.59 | 22.50 | 15.82 | 23.67 | 1.98 | 350.53 | 0.2316 | -39.6 | -22.0 | |
|
previous
or next observation for the same group /

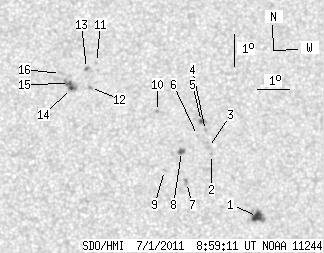

back to the solar disc SDO HMI 2011-07-01 08:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.00 | 10.18 | 3.54 | 5.15 | 13.38 | 26.62 | 4.93 | 335.39 | 0.2017 | 1114.0 | 844.9 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 15.31 | 25.20 | 3.51 | 344.66 | 0.2245 | -814.0 | -634.4 | |
| 0.00 | 1.64 | 0.00 | 0.83 | 15.53 | 25.11 | 3.42 | 345.30 | 0.2277 | -978.0 | -662.7 | |
| 0.00 | 1.73 | 0.00 | 0.88 | 16.06 | 25.02 | 3.34 | 346.23 | 0.2361 | -812.0 | -612.8 | |
| 1.64 | 3.18 | 0.83 | 1.62 | 16.34 | 24.90 | 3.21 | 347.00 | 0.2403 | -1012.8 | -886.7 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 15.91 | 24.77 | 3.08 | 347.10 | 0.2325 | -789.0 | -602.5 | |
| 0.00 | 3.00 | 0.00 | 1.52 | 14.44 | 24.40 | 2.71 | 347.13 | 0.2067 | -946.0 | -754.5 | |
| 1.45 | 3.54 | 0.74 | 1.80 | 15.41 | 24.25 | 2.57 | 348.75 | 0.2223 | -1201.0 | -901.4 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 14.82 | 23.71 | 2.02 | 350.64 | 0.2107 | -635.0 | -594.9 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 16.66 | 23.50 | 1.82 | 352.73 | 0.2414 | -965.0 | -764.0 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 18.21 | 21.56 | -0.12 | 0.44 | 0.2656 | -695.0 | -506.2 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 17.42 | 21.37 | -0.31 | 1.19 | 0.2523 | 885.0 | 582.1 | |
| 0.00 | 1.73 | 0.00 | 0.89 | 18.02 | 21.24 | -0.44 | 1.61 | 0.2625 | 585.0 | 402.2 | |
| 1.18 | 9.63 | 0.60 | 4.93 | 17.39 | 20.77 | -0.92 | 3.50 | 0.2522 | 1069.3 | 772.0 | |
| 1.73 | -14.00 | 0.88 | -14.00 | 17.54 | 20.70 | -0.99 | 3.71 | 0.2549 | 993.2 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.03 | 17.86 | 20.41 | -1.28 | 4.68 | 0.2606 | 738.0 | 600.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
