SDO HMI 2011-07-01 09:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 71.70 | 243.95 | 42.13 | 143.68 | 16.08 | 350.70 | -30.44 | 64.13 | 0.5426 | -7.0 | 123.3 | |
|
previous
or next observation for the same group /

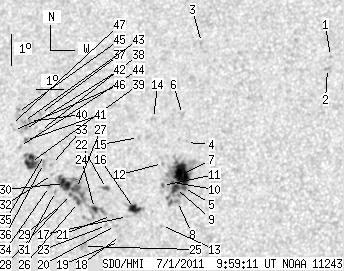

back to the solar disc SDO HMI 2011-07-01 09:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.67 | 20.05 | 357.96 | -23.18 | 51.03 | 0.4775 | -794.0 | -567.2 | |
| 0.00 | 1.82 | 0.00 | 1.02 | 19.67 | 357.91 | -23.22 | 51.75 | 0.4747 | -854.0 | -677.0 | |
| 0.00 | 1.64 | 0.00 | 0.96 | 20.40 | 353.25 | -27.89 | 55.04 | 0.5371 | -629.0 | -587.7 | |
| 0.00 | 0.45 | 0.00 | 0.26 | 17.22 | 353.27 | -27.86 | 60.42 | 0.5153 | -289.0 | -409.6 | |
| 0.55 | 76.86 | 0.31 | 44.21 | 15.81 | 353.39 | -27.75 | 62.88 | 0.5053 | -1099.3 | -489.4 | |
| 0.00 | 1.64 | 0.00 | 0.95 | 18.10 | 352.98 | -28.16 | 59.12 | 0.5247 | -715.0 | -536.4 | |
| 21.35 | -5.00 | 12.27 | -5.00 | 16.22 | 353.26 | -27.88 | 62.24 | 0.5095 | -1144.9 | 999999 | |
| 0.00 | 2.91 | 0.00 | 1.67 | 15.37 | 353.24 | -27.90 | 63.80 | 0.5048 | -839.0 | -624.7 | |
| 5.54 | -5.00 | 3.18 | -5.00 | 15.77 | 353.11 | -28.03 | 63.16 | 0.5089 | -802.9 | 999999 | |
| 1.00 | -5.00 | 0.58 | -5.00 | 15.96 | 352.97 | -28.17 | 62.92 | 0.5118 | -558.8 | 999999 | |
| 1.45 | 1.73 | 0.84 | 1.00 | 15.86 | 352.63 | -28.51 | 63.35 | 0.5158 | -457.1 | -314.0 | |
| 0.00 | 1.27 | 0.00 | 0.74 | 16.54 | 352.52 | -28.62 | 62.19 | 0.5212 | -655.0 | -402.6 | |
| 0.00 | 1.00 | 0.00 | 0.57 | 14.61 | 352.77 | -28.36 | 65.53 | 0.5071 | -660.0 | -516.3 | |
| 0.00 | 2.54 | 0.00 | 1.49 | 17.95 | 351.95 | -29.19 | 60.16 | 0.5370 | -582.0 | -497.5 | |
| 0.00 | 1.45 | 0.00 | 0.85 | 17.34 | 351.50 | -29.63 | 61.52 | 0.5390 | -630.0 | -429.5 | |
| 7.00 | 14.45 | 4.06 | 8.39 | 15.11 | 351.73 | -29.41 | 65.28 | 0.5240 | -723.9 | -261.8 | |
| 0.00 | 1.36 | 0.00 | 0.79 | 14.86 | 351.51 | -29.63 | 65.87 | 0.5256 | 260.0 | 227.6 | |
| 0.00 | 0.82 | 0.00 | 0.48 | 14.26 | 351.35 | -29.79 | 67.05 | 0.5250 | -775.0 | -622.9 | |
| 0.00 | 0.82 | 0.00 | 0.48 | 14.08 | 351.34 | -29.80 | 67.40 | 0.5242 | -652.0 | -594.1 | |
| 0.00 | 1.64 | 0.00 | 0.95 | 14.57 | 351.12 | -30.02 | 66.63 | 0.5295 | -475.0 | -354.4 | |
| 0.00 | 1.45 | 0.00 | 0.85 | 14.88 | 350.93 | -30.21 | 66.20 | 0.5336 | 624.0 | 509.3 | |
| 2.27 | 3.72 | 1.34 | 2.19 | 15.71 | 350.61 | -30.53 | 64.92 | 0.5420 | -573.2 | -400.7 | |
| 0.00 | 1.27 | 0.00 | 0.74 | 14.56 | 350.79 | -30.35 | 66.84 | 0.5339 | -329.0 | -204.6 | |
| 2.82 | 69.86 | 1.66 | 41.52 | 15.08 | 350.27 | -30.87 | 66.22 | 0.5434 | 888.5 | 616.9 | |
| 0.00 | 3.91 | 0.00 | 2.30 | 13.89 | 350.05 | -31.09 | 68.44 | 0.5410 | 649.0 | 591.5 | |
| 1.82 | -24.00 | 1.08 | -24.00 | 15.25 | 349.65 | -31.49 | 66.28 | 0.5526 | 902.7 | 999999 | |
| 5.00 | -24.00 | 2.98 | -24.00 | 15.69 | 349.50 | -31.64 | 65.62 | 0.5566 | 923.3 | 999999 | |
| 1.09 | -24.00 | 0.65 | -24.00 | 15.49 | 349.31 | -31.83 | 66.05 | 0.5582 | 845.2 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.92 | 15.27 | 349.16 | -31.98 | 66.51 | 0.5591 | 730.0 | 600.4 | |
| 10.18 | -24.00 | 6.09 | -24.00 | 15.83 | 349.03 | -32.11 | 65.64 | 0.5635 | 957.8 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.98 | 15.57 | 348.74 | -32.40 | 66.23 | 0.5662 | 670.0 | 551.4 | |
| 0.00 | 1.18 | 0.00 | 0.71 | 16.10 | 348.53 | -32.61 | 65.46 | 0.5714 | 545.0 | 499.4 | |
| 0.00 | 1.45 | 0.00 | 0.88 | 16.41 | 348.43 | -32.71 | 65.00 | 0.5741 | 804.0 | 583.1 | |
| 0.00 | 1.36 | 0.00 | 0.82 | 15.72 | 348.48 | -32.66 | 66.12 | 0.5702 | 739.0 | 647.9 | |
| 0.00 | 2.09 | 0.00 | 1.27 | 16.72 | 348.11 | -33.03 | 64.68 | 0.5797 | 726.0 | 502.2 | |
| 0.00 | 2.91 | 0.00 | 1.76 | 16.44 | 348.12 | -33.02 | 65.13 | 0.5782 | 792.0 | 699.2 | |
| 0.00 | 1.82 | 0.00 | 1.11 | 18.00 | 347.69 | -33.45 | 62.85 | 0.5913 | 877.0 | 721.3 | |
| 0.00 | 0.73 | 0.00 | 0.44 | 17.47 | 347.80 | -33.34 | 63.64 | 0.5872 | 643.0 | 522.0 | |
| 11.63 | 17.81 | 7.09 | 10.85 | 16.45 | 347.62 | -33.51 | 65.37 | 0.5847 | 875.4 | 659.9 | |
| 0.00 | 1.45 | 0.00 | 0.89 | 17.74 | 347.32 | -33.82 | 63.47 | 0.5946 | 789.0 | 600.8 | |
| 0.00 | 1.73 | 0.00 | 1.06 | 17.14 | 347.29 | -33.84 | 64.44 | 0.5921 | 822.0 | 674.6 | |
| 0.00 | 4.91 | 0.00 | 3.02 | 17.48 | 347.18 | -33.96 | 63.96 | 0.5952 | 750.0 | 578.4 | |
| 0.00 | 2.45 | 0.00 | 1.51 | 17.73 | 347.09 | -34.05 | 63.61 | 0.5975 | 713.0 | 672.9 | |
| 0.00 | 1.54 | 0.00 | 0.95 | 16.94 | 347.10 | -34.04 | 64.86 | 0.5936 | 549.0 | 422.1 | |
| 0.00 | 4.09 | 0.00 | 2.53 | 18.01 | 346.80 | -34.34 | 63.34 | 0.6025 | 452.0 | 480.4 | |
| 0.00 | 0.73 | 0.00 | 0.45 | 17.44 | 346.77 | -34.37 | 64.25 | 0.6002 | 457.0 | 394.0 | |
| 0.00 | 0.73 | 0.00 | 0.45 | 17.63 | 346.65 | -34.49 | 64.02 | 0.6026 | 414.0 | 340.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
