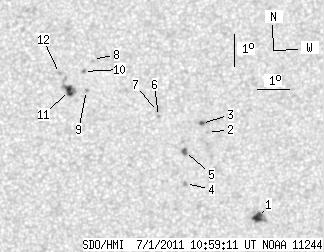

SDO HMI 2011-07-01 10:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.71 | 41.07 | 8.51 | 20.94 | 15.81 | 23.48 | 2.89 | 346.69 | 0.2354 | 163.0 | 321.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-01 10:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.72 | 12.54 | 3.41 | 6.35 | 13.40 | 26.63 | 6.04 | 330.75 | 0.2106 | 1106.2 | 708.9 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 16.06 | 25.12 | 4.53 | 341.60 | 0.2415 | -778.0 | -670.7 | |
| 2.00 | 2.09 | 1.02 | 1.07 | 16.34 | 24.93 | 4.35 | 342.67 | 0.2451 | -950.6 | -827.0 | |
| 0.00 | 2.18 | 0.00 | 1.11 | 14.47 | 24.39 | 3.80 | 342.30 | 0.2120 | -1019.0 | -755.5 | |
| 2.54 | 3.27 | 1.29 | 1.66 | 15.46 | 24.38 | 3.79 | 343.73 | 0.2282 | -994.7 | -724.0 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 16.56 | 23.57 | 2.98 | 348.11 | 0.2430 | -1043.0 | -749.4 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 16.72 | 23.54 | 2.95 | 348.36 | 0.2455 | -685.0 | -543.9 | |
| 0.00 | 0.55 | 0.00 | 0.28 | 18.37 | 21.48 | 0.89 | 356.83 | 0.2686 | -388.0 | -548.0 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 17.39 | 21.28 | 0.69 | 357.36 | 0.2519 | 860.0 | 641.6 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 17.99 | 21.19 | 0.60 | 357.81 | 0.2620 | 541.0 | 363.9 | |
| 5.45 | 12.99 | 2.79 | 6.65 | 17.39 | 20.74 | 0.15 | 359.42 | 0.2517 | 1025.2 | 755.1 | |
| 0.00 | 1.91 | 0.00 | 0.98 | 17.92 | 20.42 | -0.17 | 0.61 | 0.2608 | 824.0 | 562.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
