SDO HMI 2011-07-01 12:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.56 | 257.85 | 40.78 | 149.12 | 16.13 | 351.02 | -28.46 | 62.74 | 0.5167 | 2.3 | 45.5 | |
|
previous
or next observation for the same group /

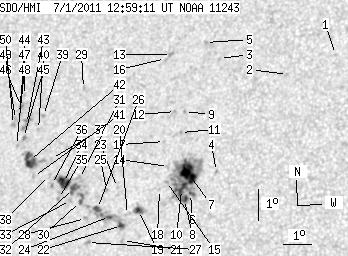

back to the solar disc SDO HMI 2011-07-01 12:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.66 | 20.11 | 357.98 | -21.51 | 48.99 | 0.4582 | -621.0 | -402.9 | |
| 0.00 | 0.82 | 0.00 | 0.46 | 19.44 | 356.39 | -23.09 | 52.01 | 0.4712 | -466.0 | -402.1 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 19.91 | 353.90 | -25.59 | 53.78 | 0.5054 | -488.0 | -500.4 | |
| 0.00 | 1.18 | 0.00 | 0.66 | 16.34 | 354.35 | -25.14 | 59.80 | 0.4737 | -740.0 | -540.8 | |
| 0.00 | 1.54 | 0.00 | 0.89 | 20.41 | 353.31 | -26.18 | 53.50 | 0.5164 | -623.0 | -448.9 | |
| 0.91 | 99.82 | 0.51 | 56.53 | 15.63 | 353.53 | -25.96 | 61.85 | 0.4801 | -1001.9 | -495.3 | |
| 20.07 | -6.00 | 11.37 | -6.00 | 16.26 | 353.37 | -26.12 | 60.79 | 0.4861 | -1155.6 | 999999 | |
| 3.09 | -6.00 | 1.74 | -6.00 | 15.44 | 353.34 | -26.15 | 62.36 | 0.4814 | -921.4 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.57 | 18.20 | 352.93 | -26.56 | 57.63 | 0.5049 | -848.0 | -713.8 | |
| 8.17 | -6.00 | 4.63 | -6.00 | 15.75 | 353.19 | -26.29 | 61.89 | 0.4853 | -871.7 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.52 | 17.54 | 352.89 | -26.59 | 58.84 | 0.5008 | -720.0 | -606.9 | |
| 0.00 | 1.00 | 0.00 | 0.57 | 18.19 | 352.61 | -26.88 | 57.92 | 0.5090 | -616.0 | -470.7 | |
| 0.00 | 2.00 | 0.00 | 1.16 | 20.00 | 352.14 | -27.34 | 55.23 | 0.5275 | -673.0 | -481.6 | |
| 0.00 | 2.72 | 0.00 | 1.55 | 16.46 | 352.63 | -26.86 | 61.02 | 0.4973 | -492.0 | -331.1 | |
| 0.00 | 1.54 | 0.00 | 0.88 | 15.99 | 352.63 | -26.86 | 61.89 | 0.4944 | -433.0 | -336.1 | |
| 0.00 | 1.36 | 0.00 | 0.79 | 19.87 | 351.95 | -27.54 | 55.62 | 0.5289 | -266.0 | -336.5 | |
| 0.00 | 1.00 | 0.00 | 0.57 | 17.24 | 352.37 | -27.12 | 59.81 | 0.5057 | -543.0 | -460.7 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 15.73 | 352.41 | -27.07 | 62.53 | 0.4957 | 553.0 | 311.5 | |
| 3.00 | 8.17 | 1.71 | 4.67 | 15.06 | 351.76 | -27.73 | 64.26 | 0.5007 | -753.3 | -503.5 | |
| 0.00 | 2.27 | 0.00 | 1.30 | 14.93 | 351.39 | -28.10 | 64.77 | 0.5051 | 203.0 | 232.0 | |
| 0.00 | 1.91 | 0.00 | 1.09 | 14.12 | 351.32 | -28.17 | 66.33 | 0.5018 | -746.0 | -535.6 | |
| 2.54 | 31.88 | 1.46 | 18.40 | 14.58 | 351.22 | -28.27 | 65.52 | 0.5056 | -565.8 | 457.7 | |
| 0.00 | 0.91 | 0.00 | 0.52 | 15.76 | 350.90 | -28.58 | 63.57 | 0.5162 | 699.0 | 503.0 | |
| 1.82 | -22.00 | 1.05 | -22.00 | 14.85 | 350.75 | -28.74 | 65.33 | 0.5134 | 684.6 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.74 | 15.69 | 350.52 | -28.97 | 63.96 | 0.5210 | -600.0 | -466.4 | |
| 3.45 | -22.00 | 2.00 | -22.00 | 15.09 | 350.28 | -29.21 | 65.20 | 0.5210 | 865.2 | 999999 | |
| 0.00 | 2.54 | 0.00 | 1.47 | 14.03 | 350.08 | -29.41 | 67.27 | 0.5186 | 861.0 | 696.0 | |
| 0.00 | 2.00 | 0.00 | 1.16 | 14.77 | 349.90 | -29.59 | 66.02 | 0.5247 | 758.0 | 596.6 | |
| 0.00 | 1.63 | 0.00 | 0.97 | 18.85 | 349.11 | -30.37 | 59.52 | 0.5574 | -413.0 | -373.4 | |
| 1.54 | 30.61 | 0.90 | 17.97 | 15.30 | 349.63 | -29.85 | 65.24 | 0.5308 | 883.4 | 723.0 | |
| 0.00 | 4.45 | 0.00 | 2.61 | 16.01 | 349.48 | -30.01 | 64.07 | 0.5366 | 889.0 | 649.5 | |
| 4.63 | -30.00 | 2.72 | -30.00 | 15.70 | 349.31 | -30.17 | 64.73 | 0.5372 | 932.5 | 999999 | |
| 0.00 | 1.73 | 0.00 | 1.01 | 15.32 | 349.26 | -30.22 | 65.43 | 0.5359 | 718.0 | 612.1 | |
| 9.17 | -30.00 | 5.40 | -30.00 | 15.87 | 348.92 | -30.57 | 64.67 | 0.5434 | 943.6 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.07 | 15.37 | 348.82 | -30.67 | 65.60 | 0.5422 | 626.0 | 518.8 | |
| 0.00 | 2.00 | 0.00 | 1.18 | 15.80 | 348.49 | -31.00 | 65.05 | 0.5487 | 575.0 | 512.0 | |
| 0.00 | 1.18 | 0.00 | 0.70 | 16.61 | 348.34 | -31.14 | 63.75 | 0.5547 | 683.0 | 527.5 | |
| 0.00 | 1.82 | 0.00 | 1.08 | 16.08 | 348.36 | -31.12 | 64.65 | 0.5517 | 748.0 | 581.8 | |
| 0.00 | 1.54 | 0.00 | 0.93 | 17.96 | 347.79 | -31.70 | 61.87 | 0.5690 | 783.0 | 632.4 | |
| 0.00 | 1.45 | 0.00 | 0.87 | 17.51 | 347.69 | -31.80 | 62.66 | 0.5679 | 704.0 | 586.2 | |
| 0.00 | 1.36 | 0.00 | 0.81 | 16.04 | 347.78 | -31.71 | 65.07 | 0.5592 | 630.0 | 555.3 | |
| 12.17 | 19.80 | 7.29 | 11.86 | 16.53 | 347.54 | -31.95 | 64.38 | 0.5648 | 847.2 | 679.9 | |
| 0.00 | 7.54 | 0.00 | 4.56 | 17.69 | 347.20 | -32.29 | 62.67 | 0.5750 | 794.0 | 713.8 | |
| 0.00 | 1.18 | 0.00 | 0.72 | 18.57 | 346.94 | -32.55 | 61.41 | 0.5830 | 606.0 | 490.0 | |
| 0.00 | 1.91 | 0.00 | 1.15 | 17.25 | 347.17 | -32.31 | 63.41 | 0.5731 | 565.0 | 525.2 | |
| 0.00 | 2.09 | 0.00 | 1.27 | 18.22 | 346.90 | -32.59 | 61.99 | 0.5816 | 664.0 | 572.3 | |
| 0.00 | 1.27 | 0.00 | 0.77 | 18.00 | 346.87 | -32.62 | 62.37 | 0.5808 | 530.0 | 581.2 | |
| 0.00 | 0.82 | 0.00 | 0.49 | 16.99 | 346.96 | -32.53 | 63.95 | 0.5745 | 229.0 | 342.0 | |
| 0.00 | 2.18 | 0.00 | 1.32 | 17.81 | 346.76 | -32.73 | 62.75 | 0.5812 | 483.0 | 405.5 | |
| 0.00 | 2.27 | 0.00 | 1.38 | 17.65 | 346.71 | -32.77 | 63.03 | 0.5810 | 515.0 | 414.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
