SDO HMI 2011-07-01 13:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 71.58 | 270.17 | 41.16 | 155.34 | 16.24 | 351.21 | -27.72 | 61.98 | 0.5075 | -84.7 | -37.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-01 13:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

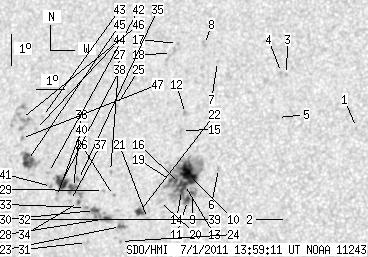

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.49 | 17.79 | 358.98 | -19.95 | 51.31 | 0.4180 | -684.0 | -581.8 | |
| 0.00 | 0.73 | 0.00 | 0.40 | 14.87 | 356.96 | -21.97 | 59.71 | 0.4205 | -762.0 | -574.0 | |
| 0.00 | 1.09 | 0.00 | 0.61 | 19.43 | 356.35 | -22.58 | 51.47 | 0.4649 | -756.0 | -634.3 | |
| 0.00 | 1.09 | 0.00 | 0.61 | 19.49 | 356.17 | -22.77 | 51.57 | 0.4676 | -759.0 | -614.8 | |
| 0.00 | 1.09 | 0.00 | 0.61 | 18.06 | 356.23 | -22.70 | 54.11 | 0.4548 | -817.0 | -664.8 | |
| 0.00 | 1.54 | 0.00 | 0.86 | 16.42 | 354.40 | -24.54 | 59.10 | 0.4661 | -830.0 | -648.2 | |
| 0.00 | 0.54 | 0.00 | 0.31 | 19.79 | 353.85 | -25.08 | 53.49 | 0.4983 | -742.0 | -541.3 | |
| 0.00 | 2.45 | 0.00 | 1.41 | 20.32 | 353.29 | -25.64 | 53.13 | 0.5093 | -723.0 | -554.8 | |
| 1.82 | 117.43 | 1.02 | 66.21 | 15.62 | 353.60 | -25.34 | 61.36 | 0.4715 | -1068.1 | -493.7 | |
| 20.16 | -9.00 | 11.36 | -9.00 | 16.21 | 353.38 | -25.56 | 60.42 | 0.4784 | -1191.3 | 999999 | |
| 3.18 | -9.00 | 1.78 | -9.00 | 15.39 | 353.45 | -25.49 | 61.91 | 0.4721 | -947.6 | 999999 | |
| 0.00 | 2.72 | 0.00 | 1.55 | 18.12 | 352.98 | -25.95 | 57.24 | 0.4966 | -844.0 | -568.2 | |
| 1.82 | -9.00 | 1.02 | -9.00 | 15.89 | 353.28 | -25.66 | 61.10 | 0.4776 | -1067.9 | 999999 | |
| 1.54 | -9.00 | 0.87 | -9.00 | 15.70 | 353.20 | -25.74 | 61.53 | 0.4775 | -914.0 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.09 | 17.58 | 352.92 | -26.01 | 58.26 | 0.4936 | -740.0 | -644.3 | |
| 0.82 | -9.00 | 0.46 | -9.00 | 15.92 | 353.10 | -25.84 | 61.20 | 0.4802 | -715.6 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.74 | 20.33 | 352.31 | -26.63 | 54.03 | 0.5212 | -720.0 | -571.4 | |
| 0.00 | 4.81 | 0.00 | 2.79 | 20.01 | 352.15 | -26.78 | 54.72 | 0.5207 | -546.0 | -495.4 | |
| 1.82 | -9.00 | 1.03 | -9.00 | 16.01 | 352.77 | -26.17 | 61.31 | 0.4852 | -542.0 | 999999 | |
| 0.00 | 3.81 | 0.00 | 2.16 | 15.34 | 352.47 | -26.46 | 62.80 | 0.4851 | 11.0 | 39.9 | |
| 0.00 | 1.45 | 0.00 | 0.82 | 14.80 | 352.12 | -26.82 | 64.10 | 0.4868 | -402.0 | -356.4 | |
| 4.36 | 5.90 | 2.48 | 3.36 | 15.01 | 351.81 | -27.13 | 63.92 | 0.4923 | -747.2 | -617.0 | |
| 2.54 | 6.99 | 1.45 | 3.99 | 14.53 | 351.20 | -27.74 | 65.26 | 0.4980 | -738.1 | -218.2 | |
| 0.00 | 1.18 | 0.00 | 0.67 | 14.07 | 351.26 | -27.67 | 66.11 | 0.4947 | -771.0 | -606.1 | |
| 0.00 | 1.18 | 0.00 | 0.69 | 18.32 | 350.46 | -28.48 | 59.00 | 0.5302 | -765.0 | -511.0 | |
| 0.00 | 1.36 | 0.00 | 0.78 | 15.49 | 350.81 | -28.12 | 63.75 | 0.5085 | 840.0 | 626.8 | |
| 0.00 | 1.27 | 0.00 | 0.73 | 16.24 | 350.59 | -28.35 | 62.55 | 0.5157 | -679.0 | -478.5 | |
| 2.18 | 15.80 | 1.25 | 9.09 | 14.77 | 350.70 | -28.23 | 65.15 | 0.5061 | 918.3 | 636.4 | |
| 0.00 | 1.18 | 0.00 | 0.68 | 15.64 | 350.43 | -28.51 | 63.74 | 0.5145 | -522.0 | -338.2 | |
| 3.54 | -28.00 | 2.04 | -28.00 | 15.01 | 350.20 | -28.74 | 65.05 | 0.5142 | 939.5 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.05 | 14.01 | 350.05 | -28.88 | 66.99 | 0.5112 | 887.0 | 658.0 | |
| 0.00 | 0.91 | 0.00 | 0.52 | 14.72 | 349.92 | -29.02 | 65.76 | 0.5166 | 853.0 | 742.7 | |
| 0.00 | 1.73 | 0.00 | 1.00 | 15.09 | 349.86 | -29.07 | 65.11 | 0.5192 | 820.0 | 678.6 | |
| 0.91 | 1.73 | 0.53 | 1.00 | 15.24 | 349.59 | -29.35 | 65.02 | 0.5238 | 777.9 | 867.7 | |
| 0.00 | 3.18 | 0.00 | 1.85 | 15.96 | 349.47 | -29.46 | 63.81 | 0.5291 | 851.0 | 636.0 | |
| 4.45 | 28.70 | 2.60 | 16.78 | 15.71 | 349.33 | -29.61 | 64.35 | 0.5296 | 964.2 | 741.0 | |
| 0.00 | 1.45 | 0.00 | 0.85 | 15.30 | 349.29 | -29.65 | 65.11 | 0.5281 | 730.0 | 577.4 | |
| 10.63 | -36.00 | 6.23 | -36.00 | 15.85 | 348.87 | -30.07 | 64.39 | 0.5365 | 909.1 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.74 | 14.70 | 349.01 | -29.92 | 66.35 | 0.5288 | 713.0 | 565.1 | |
| 0.00 | 3.09 | 0.00 | 1.81 | 15.41 | 348.76 | -30.18 | 65.24 | 0.5358 | 636.0 | 568.6 | |
| 0.00 | 1.00 | 0.00 | 0.59 | 15.72 | 348.52 | -30.41 | 64.84 | 0.5404 | 630.0 | 552.7 | |
| 0.00 | 1.45 | 0.00 | 0.86 | 16.15 | 348.34 | -30.60 | 64.20 | 0.5451 | 709.0 | 598.9 | |
| 0.00 | 1.18 | 0.00 | 0.71 | 17.91 | 347.79 | -31.14 | 61.60 | 0.5616 | 843.0 | 644.1 | |
| 0.00 | 1.91 | 0.00 | 1.14 | 17.49 | 347.61 | -31.32 | 62.40 | 0.5616 | 749.0 | 619.8 | |
| 11.81 | 19.25 | 7.04 | 11.47 | 16.51 | 347.50 | -31.44 | 64.11 | 0.5580 | 871.5 | 681.1 | |
| 0.00 | 21.89 | 0.00 | 13.18 | 17.82 | 347.02 | -31.92 | 62.23 | 0.5710 | 737.0 | 598.7 | |
| 0.00 | 1.91 | 0.00 | 1.14 | 17.19 | 347.14 | -31.79 | 63.18 | 0.5661 | 710.0 | 597.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
