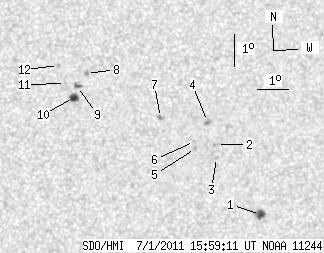

SDO HMI 2011-07-01 15:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.26 | 34.33 | 6.78 | 17.59 | 16.12 | 23.37 | 5.55 | 337.58 | 0.2531 | 191.8 | -139.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-01 15:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.72 | 7.54 | 2.92 | 3.84 | 13.48 | 26.67 | 8.84 | 320.98 | 0.2386 | 1051.8 | 920.5 | |
| 0.00 | 1.73 | 0.00 | 0.88 | 15.67 | 25.36 | 7.53 | 330.37 | 0.2562 | -842.0 | -690.5 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 15.27 | 25.34 | 7.51 | 329.58 | 0.2502 | -826.0 | -556.0 | |
| 0.00 | 2.63 | 0.00 | 1.35 | 16.39 | 25.09 | 7.27 | 332.59 | 0.2647 | -947.0 | -858.7 | |
| 0.00 | 2.09 | 0.00 | 1.07 | 15.55 | 24.68 | 6.85 | 332.37 | 0.2490 | -1127.0 | -844.1 | |
| 0.00 | 0.64 | 0.00 | 0.33 | 15.77 | 24.66 | 6.83 | 332.87 | 0.2521 | -824.0 | -660.0 | |
| 0.00 | 2.63 | 0.00 | 1.35 | 16.53 | 23.60 | 5.77 | 337.80 | 0.2561 | -1089.0 | -858.6 | |
| 0.00 | 2.00 | 0.00 | 1.03 | 17.92 | 21.26 | 3.43 | 347.61 | 0.2669 | 322.0 | 113.6 | |
| 2.18 | 4.27 | 1.12 | 2.19 | 17.51 | 20.97 | 3.14 | 348.32 | 0.2591 | 645.3 | 552.8 | |
| 5.36 | 7.08 | 2.74 | 3.63 | 17.17 | 20.83 | 3.00 | 348.53 | 0.2529 | 1065.0 | 750.9 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 17.61 | 20.58 | 2.76 | 349.78 | 0.2594 | 693.0 | 471.3 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 18.18 | 20.37 | 2.54 | 350.93 | 0.2683 | 954.0 | 693.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
