SDO HMI 2011-07-01 20:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.80 | 32.88 | 6.07 | 16.95 | 16.45 | 23.08 | 8.03 | 330.37 | 0.2749 | 15.3 | -74.5 | |
|
previous
or next observation for the same group /

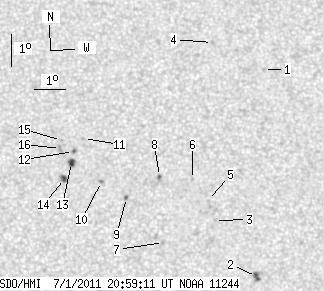

back to the solar disc SDO HMI 2011-07-01 20:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.72 | 19.98 | 27.28 | 12.23 | 325.95 | 0.3571 | -772.0 | -525.8 | |
| 3.81 | 5.36 | 1.96 | 2.76 | 13.48 | 26.64 | 11.59 | 313.37 | 0.2699 | 1032.5 | 855.2 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 15.23 | 25.38 | 10.33 | 321.09 | 0.2766 | -814.0 | -640.2 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 20.86 | 25.66 | 10.60 | 330.90 | 0.3551 | -819.0 | -651.5 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 15.86 | 25.19 | 10.14 | 323.04 | 0.2828 | -811.0 | -574.3 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 16.52 | 24.74 | 9.69 | 325.66 | 0.2872 | -814.0 | -579.1 | |
| 0.00 | 2.00 | 0.00 | 1.02 | 14.56 | 23.72 | 8.67 | 324.25 | 0.2508 | -915.0 | -619.9 | |
| 0.91 | 2.27 | 0.47 | 1.17 | 16.62 | 23.68 | 8.63 | 328.84 | 0.2790 | -899.1 | -782.6 | |
| 0.00 | 1.73 | 0.00 | 0.88 | 15.97 | 22.59 | 7.54 | 330.88 | 0.2605 | -966.0 | -806.8 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 16.48 | 21.81 | 6.76 | 334.34 | 0.2619 | -813.0 | -556.1 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 17.84 | 21.28 | 6.23 | 338.16 | 0.2791 | 322.0 | 143.7 | |
| 0.82 | 1.45 | 0.42 | 0.75 | 17.43 | 20.95 | 5.90 | 338.67 | 0.2706 | 898.1 | 831.6 | |
| 3.63 | 4.81 | 1.87 | 2.47 | 17.08 | 20.87 | 5.82 | 338.42 | 0.2648 | 1053.5 | 855.5 | |
| 2.63 | 3.18 | 1.35 | 1.63 | 16.58 | 20.63 | 5.58 | 338.50 | 0.2555 | 965.9 | 1003.8 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 17.78 | 20.57 | 5.52 | 340.36 | 0.2739 | 698.0 | 539.5 | |
| 0.00 | 3.00 | 0.00 | 1.54 | 17.52 | 20.53 | 5.48 | 340.17 | 0.2697 | 744.0 | 683.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
