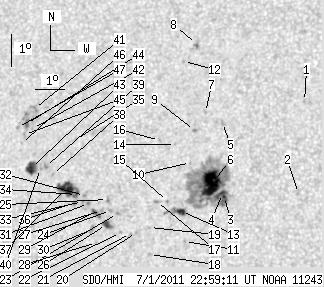

SDO HMI 2011-07-01 22:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 76.01 | 288.76 | 41.97 | 158.58 | 16.15 | 351.94 | -22.00 | 56.96 | 0.4304 | -19.8 | -154.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-01 22:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.59 | 18.75 | 356.50 | -17.44 | 45.90 | 0.3969 | -692.0 | -619.7 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 15.86 | 356.58 | -17.36 | 51.77 | 0.3669 | -683.0 | -489.5 | |
| 1.18 | 164.00 | 0.64 | 88.95 | 15.72 | 354.12 | -19.82 | 55.48 | 0.3978 | -1210.8 | -398.3 | |
| 2.18 | -3.00 | 1.18 | -3.00 | 15.82 | 354.05 | -19.90 | 55.38 | 0.3996 | -1100.3 | 999999 | |
| 0.00 | 1.82 | 0.00 | 0.99 | 18.04 | 353.80 | -20.15 | 51.14 | 0.4223 | -784.0 | -716.6 | |
| 30.69 | -3.00 | 16.64 | -3.00 | 16.12 | 353.64 | -20.30 | 55.23 | 0.4075 | -1213.4 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.90 | 18.35 | 353.18 | -20.77 | 51.34 | 0.4327 | -853.0 | -603.6 | |
| 0.00 | 3.63 | 0.00 | 2.02 | 20.50 | 352.57 | -21.37 | 48.18 | 0.4599 | -786.0 | -627.2 | |
| 0.00 | 1.91 | 0.00 | 1.05 | 17.78 | 352.87 | -21.07 | 52.83 | 0.4315 | -950.0 | -698.3 | |
| 0.00 | 1.09 | 0.00 | 0.60 | 16.77 | 352.86 | -21.09 | 54.85 | 0.4231 | -604.0 | -427.9 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 14.30 | 352.92 | -21.03 | 60.02 | 0.4031 | -808.0 | -566.2 | |
| 0.00 | 1.00 | 0.00 | 0.56 | 19.95 | 352.20 | -21.75 | 49.60 | 0.4591 | -590.0 | -417.0 | |
| 4.18 | 11.44 | 2.27 | 6.23 | 15.23 | 352.72 | -21.22 | 58.20 | 0.4127 | -924.5 | -581.5 | |
| 0.00 | 0.54 | 0.00 | 0.30 | 17.32 | 352.28 | -21.67 | 54.42 | 0.4352 | -629.0 | -449.8 | |
| 0.00 | 1.00 | 0.00 | 0.55 | 15.53 | 352.21 | -21.73 | 58.12 | 0.4218 | -579.0 | -477.2 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 17.44 | 351.71 | -22.23 | 54.84 | 0.4434 | -570.0 | -429.6 | |
| 0.00 | 1.91 | 0.00 | 1.04 | 15.53 | 351.84 | -22.11 | 58.54 | 0.4268 | -776.0 | -483.0 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 13.87 | 351.78 | -22.17 | 62.13 | 0.4161 | -795.0 | -565.2 | |
| 0.00 | 1.09 | 0.00 | 0.60 | 14.71 | 351.69 | -22.25 | 60.41 | 0.4230 | -688.0 | -505.7 | |
| 0.00 | 0.73 | 0.00 | 0.40 | 14.55 | 351.26 | -22.68 | 61.18 | 0.4278 | -529.0 | -517.2 | |
| 0.00 | 0.91 | 0.00 | 0.50 | 14.51 | 351.06 | -22.88 | 61.45 | 0.4303 | -432.0 | -338.7 | |
| 0.00 | 0.91 | 0.00 | 0.50 | 14.54 | 350.72 | -23.23 | 61.72 | 0.4353 | 637.0 | 574.6 | |
| 0.00 | 1.27 | 0.00 | 0.70 | 15.13 | 350.55 | -23.40 | 60.66 | 0.4416 | 981.0 | 731.0 | |
| 0.00 | 1.63 | 0.00 | 0.90 | 15.22 | 350.29 | -23.65 | 60.71 | 0.4456 | 983.0 | 846.8 | |
| 0.00 | 1.91 | 0.00 | 1.06 | 15.56 | 350.15 | -23.79 | 60.16 | 0.4499 | 804.0 | 678.7 | |
| 4.81 | 6.27 | 2.66 | 3.46 | 14.78 | 350.21 | -23.73 | 61.69 | 0.4439 | 1013.4 | 804.8 | |
| 0.00 | 1.54 | 0.00 | 0.86 | 15.21 | 349.98 | -23.96 | 61.01 | 0.4498 | 838.0 | 675.0 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 14.21 | 349.93 | -24.01 | 63.11 | 0.4442 | 823.0 | 634.4 | |
| 2.09 | 5.18 | 1.16 | 2.87 | 15.17 | 349.75 | -24.20 | 61.30 | 0.4528 | 945.9 | 803.9 | |
| 0.00 | 3.72 | 0.00 | 2.06 | 14.61 | 349.71 | -24.23 | 62.48 | 0.4497 | 871.0 | 713.0 | |
| 0.00 | 0.82 | 0.00 | 0.45 | 15.42 | 349.51 | -24.44 | 61.03 | 0.4577 | 868.0 | 779.4 | |
| 0.00 | 1.45 | 0.00 | 0.81 | 15.67 | 349.34 | -24.61 | 60.69 | 0.4616 | 1047.0 | 871.8 | |
| 0.00 | 1.36 | 0.00 | 0.76 | 15.48 | 349.29 | -24.65 | 61.10 | 0.4610 | 864.0 | 746.9 | |
| 2.82 | 26.24 | 1.57 | 14.72 | 15.69 | 349.05 | -24.89 | 60.89 | 0.4656 | 929.5 | 674.7 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 17.41 | 348.78 | -25.16 | 57.86 | 0.4811 | -616.0 | -458.5 | |
| 0.00 | 1.63 | 0.00 | 0.91 | 15.44 | 349.02 | -24.93 | 61.42 | 0.4645 | 860.0 | 715.4 | |
| 15.26 | -34.00 | 8.56 | -34.00 | 15.87 | 348.68 | -25.26 | 60.87 | 0.4719 | 916.4 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.77 | 16.30 | 348.13 | -25.81 | 60.52 | 0.4820 | 911.0 | 682.7 | |
| 0.00 | 2.09 | 0.00 | 1.18 | 16.54 | 347.85 | -26.10 | 60.30 | 0.4874 | 882.0 | 788.3 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 16.48 | 347.68 | -26.26 | 60.57 | 0.4892 | 881.0 | 658.8 | |
| 0.00 | 3.36 | 0.00 | 1.93 | 18.36 | 347.17 | -26.77 | 57.60 | 0.5084 | 749.0 | 707.4 | |
| 0.00 | 0.82 | 0.00 | 0.47 | 17.73 | 347.20 | -26.74 | 58.69 | 0.5037 | 828.0 | 706.7 | |
| 10.08 | 13.35 | 5.73 | 7.59 | 16.50 | 347.36 | -26.59 | 60.79 | 0.4936 | 864.0 | 620.3 | |
| 2.72 | 7.17 | 1.56 | 4.12 | 17.88 | 346.96 | -26.98 | 58.62 | 0.5078 | 835.6 | 613.2 | |
| 0.00 | 1.91 | 0.00 | 1.09 | 17.53 | 346.95 | -27.00 | 59.25 | 0.5057 | 749.0 | 598.2 | |
| 0.00 | 0.82 | 0.00 | 0.47 | 17.25 | 346.88 | -27.06 | 59.81 | 0.5046 | 655.0 | 529.9 | |
| 0.00 | 1.36 | 0.00 | 0.78 | 17.75 | 346.66 | -27.28 | 59.10 | 0.5108 | 577.0 | 488.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
